计算机系统概论 (ICS)

一些重要概念

1. 计算机体系结构 (Computer Architecture)（狭义）：系统程序员所看到的计算机的属性，即计算机的逻辑结构和功能特征，包括其各个硬部件和软部件之间的相互关系。（example: IBM 360）

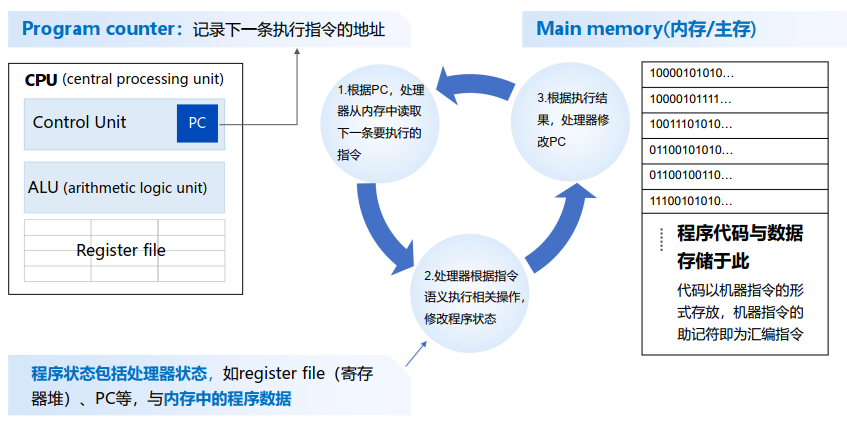

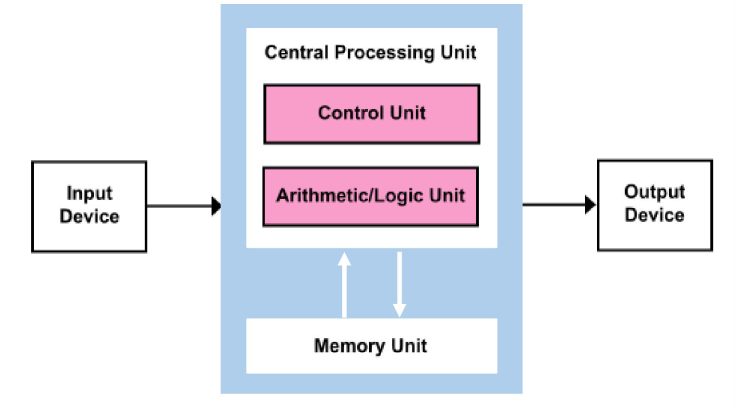

   冯·诺依曼架构 (Von Neumann)：① 采用二进制逻辑，② 程序存储执行， ③ 五部分组成（Input / Output Device, CPU (Central Processing Unit) = Control Unit + ALU (Arithmetic / Logic Unit) + registers, Memory Unit）

   • 以指令为中心，存算分离：PC / Program Counter in Control Unit 负责记录下一条执行指令的地址，操作对象为Main Memory 主存/内存（程序代码与数据存储于此）
   • 程序状态包括：① Control Unit状态（如register file、PC）， ② Main Memory中的程序数据





2. 计算机组成 (Computer Organization)：计算机系统的逻辑实现，与“计算机体系结构”并称为广义概念上的计算机体系结构

3. 计算机实现 (Computer Implementation)：计算机系统的物理实现

1 数据

1.1 整数

预备知识

bit (比特)：1个二进制位 Byte (字节)：8个二进制位，$1Byte=8bit$$1 Byte = 8 bit$ Word (字)：2个字节，$1Word=2Byte=16bit$$1 Word = 2 Byte = 16bit$（X86架构；RISC-V架构下$1Word=4Byte=32bit$$1Word = 4Byte= 32bit$）

存储单位换算（kilo, Mega, Giga, Tera, Peta, Exa） $1K=2^{10}bit$$1K = 2^{10} bit$ $1M=2^{20}bit$$1M = 2^{20}bit$ $1G=2^{30}bit$$1G=2^{30}bit$ $1T=2^{40}bit$$1T=2^{40}bit$ $1P=2^{50}bit$$1P=2^{50}bit$ $1E=2^{60}bit$$1E=2^{60}bit$

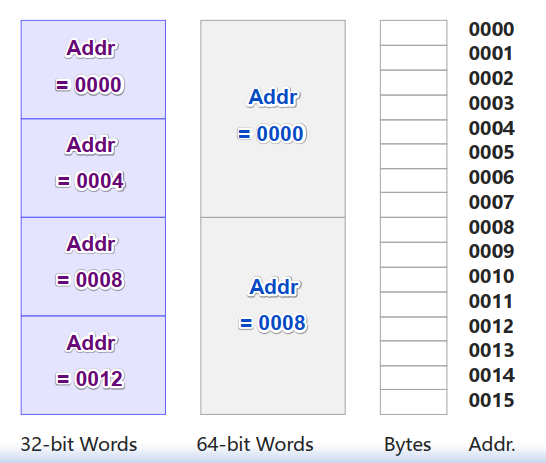

• 机器字 (Machine Word)：计算机进行一次整数运算所能处理的二进制数据的位数，通常也指数据地址长度 32位字长：地址的表示空间是4GB 64位字长：地址的表示空间约为$1.8\times {10}^{19}bytes$$1.8×10^{19}bytes$，目前X86-64位机型实际支持48位宽的地址（256TB）

• 机器字在内存中的组织：地址按照字节 (byte)来定位

  • 机器字中的第一个字节的地址

  • 相邻机器字的地址相差8



  • 字节序 (Byte Ordering) Big Endian：低位字节 (Least significant byte, LSB) 占据高地址 Little Endian：高位字节 (Most significant byte, MSB) 占据高地址✓

1. 整数表示

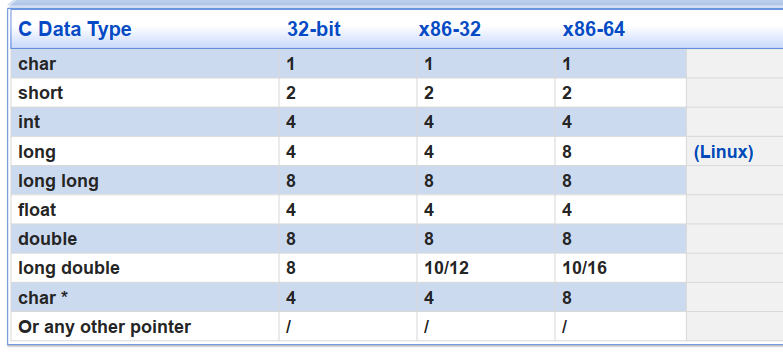

C语言中基本数据类型的大小 (in Bytes)

重点记忆：

• int：4 Bytes，带符号整数$INT\mathrm{\_}MAX=2147483647(=2^{31}-1)$$INT\_MAX=2147483647(=2^{31} - 1)$，$INT\mathrm{\_}MIN=-2147483648(=-2^{31})$$INT\_MIN=-2147483648(=-2^{31})$

2. 二进制编码 (w表示字长)

原码和补码

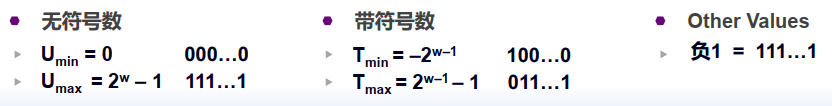

• 无符号整数（原码表示）：$B2U(X)=\sum _{i=0}^{w-1}{x}_i·2^i$$B2U(X) = \sum_{i=0}^{w-1}x_i·2^i$
• 带符号整数（补码 / Two's Complement）：$B2T(X)=-x_{w-1}·2^{w-1}+\sum _{i=0}^{w-2}{x}_i·2^i$$B2T(X) = -x_{w-1}·2^{w-1} + \sum_{i=0}^{w-2}x_i·2^i$ ($w-1$$w-1$为符号位 / sign bit / MSB (Most Significant Bit)，表示整数的符号)

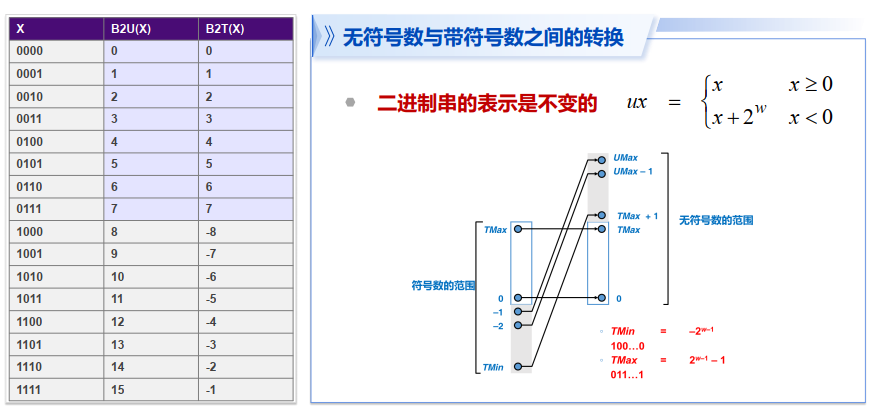

无符号数和带符号数

• 补码加法公式：$[x]\text{补}+[y]\text{补}\equiv [x+y]\text{补}(mod2w)$$[x]补 + [y]补 ≡ [x + y]补 (mod 2w)$ 意义：负整数用补码表示后，可以和正整数一样来处理，这样（处理器的）运算器只需要加法器

• C语言中的无符号数与带符号数

  • 常数 (Constants)：默认是带符号数，用U作为后缀表示无符号数
  • 无符号数与带符号数混合使用：带符号数默认转换为无符号数
  • 建议采用无符号数的场景：模运算、按位运算

无符号整数加法 & 补码加法

• 无符号数加法 $\begin{array}{c}UAd{d}_w(u,v)=\{\begin{array}{l}u+v,u+v<2^w\\ u+v-2^w,u+v\ge 2^w(\text{溢}\text{出})\end{array}\end{array}$$UAdd_w(u, v) = \begin{cases} u + v, u + v < 2 ^ w \\ u + v - 2^w, u + v ≥ 2^w(溢出) \end{cases}$

• 补码加法

  $\begin{array}{c}TAd{d}_w(u,v)=\{\begin{array}{l}u+v+2^w,u+v<TMi{n}_w(\text{溢}\text{出}NegOver)\\ u+v,TMi{n}_w\le u+v\le TMa{x}_w\\ u+v-2^w,Tma{x}_w<u+v(\text{溢}\text{出}PosOver)\end{array}\end{array}$$TAdd_w(u, v) = \begin{cases} u + v + 2^w, u + v < TMin_w(溢出NegOver) \\ u + v, TMin_w ≤ u + v ≤ TMax_w \\ u + v - 2^w, Tmax_w < u + v(溢出PosOver) \end{cases}$

无符号整数 & 带符号整数 除以2的k次幂

• 无符号整数：采用逻辑右移
• 带符号整数：采用算术右移（高位补1或0），但是发生舍入错误（向下取整而非向零：-69.5 => -70） 为了实现向零取整：Compute as $(x+2^k-1)/2^k$$(x + 2^k-1)/2^k$ => Incremented by 1

1.2 浮点数

1. IEEE Floating Point (IEEE 754)

二进制表示方法：$\sum _{k=-j}^i{b}_k·2^k$$\sum_{k=-j}^{i}b_k·2^k$

• 局限性：只能精确地表示$X/2^k$$X/2^k$这类形式的数据
• float类型可以精确到小数点后6位，double类型可以精确到小数点后15位
• 计算方法：$b_k-1$$b_k - 1$取小数部分不断乘2，进位保留1，不进位保留0

计算机中的浮点数二进制表示：

• 数字形式：$(-1{)}^{s}M·2^E$$(-1)^sM·2^E$ sign域：s（表示符号） exp域 (Exponent)：$E$$E$（提示范围） frac域 (Mantissa)：$M$$M$（尾数，位于$[1.0,2.0)$$[1.0, 2.0)$内的小数，提示精度）



• 浮点数的类型： 规格化浮点数（Normalized），非规格化浮点数（Denormalized），一些特殊值

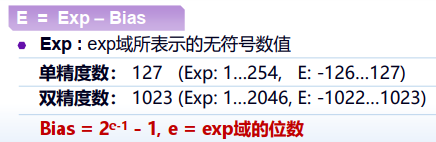

先计算出$Bias=2^{(e-1)}-1$$Bias = 2^{(e - 1)} - 1$，其中$e$$e$为exp域的位数 区分Normalized和Denormalized，算出$E=Exp-Bias$$E = Exp - Bias$或$E-1-Bias$$E - 1 - Bias$或$E=n/a$$E = n/a$

规格化浮点数（Normalized）

满足条件：$exp\ne 000...0,exp\ne 111...1$$exp≠000...0, exp≠111...1$

1. 真实的阶码值需要减去一个偏置（biased）量



2. frac域的第一位隐含为1（因此可以省去）

非规格化浮点数（Denormalized）

满足条件：$exp=000...0，M=0.xxx...x$$exp = 000...0，M=0.xxx...x$ => $E=1-Bias,M=0.xxx...x$$E=1-Bias, M=0.xxx...x$

具体实例：

• $exp=000...0,frac=000...0$$exp=000...0, frac = 000...0$ 表示0（注意有+0和-0）
• $exp=000...0,frac\ne 000...0$$exp=000...0,frac≠000...0$ 表示“非常接近”于0的浮点数 会逐步丧失精度，称为“Gradual underflow”

一些特殊值

满足条件：$exp=111...1$$exp = 111...1$ => $E=n/a$$E=n/a$

具体实例：

• $exp=111...1,frac=000...0$$exp=111...1,frac = 000...0$ 表示无穷 可用于表示数值的溢出 有正无穷与负无穷（EG/ 1.0/0.0 = +∞，EG/ -1.0/0.0 = -∞）
• $exp=111...1,frac\ne 000...0$$exp=111...1, frac≠000...0$ Not-a-Number (NaN) EG/ sqrt(-1), ∞, -∞, ∞*0

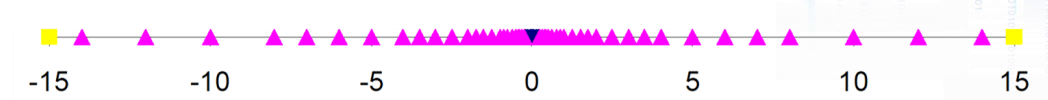

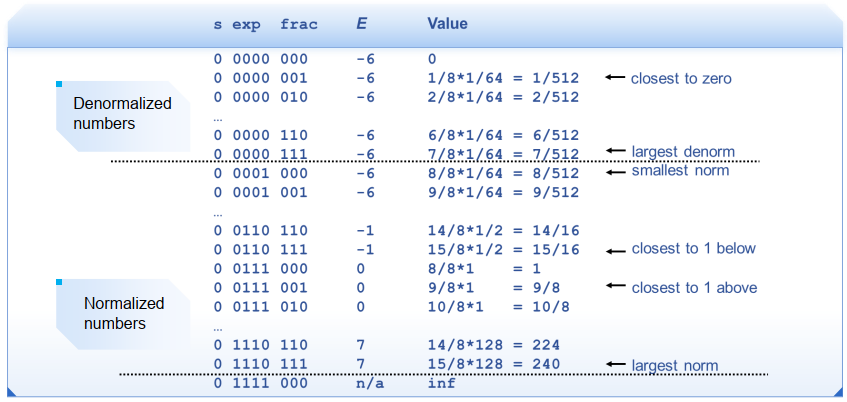

一种“小”浮点数实例

8位浮点数表示：exp域宽度为4 bits，frac域宽度为3 bits，bias=7

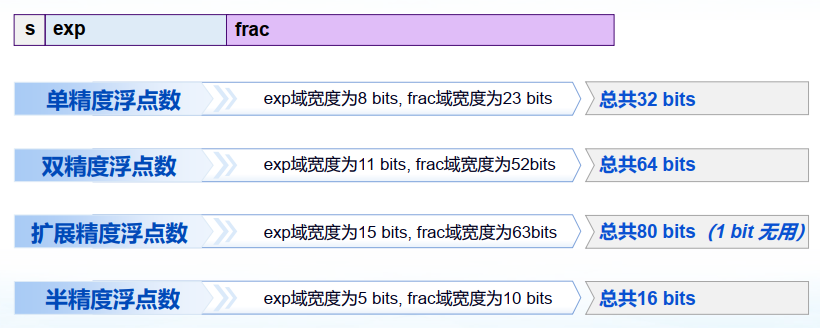

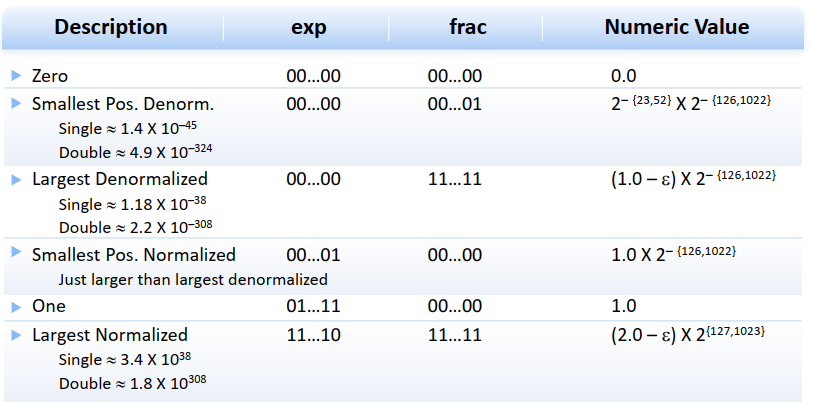

推广到单精度与双精度浮点数：

浮点数的编码特性

• （几乎）可以直接使用无符号整数的比较方式 【反例】：必须先比较符号位 考虑+0，-0的特例 考虑NaN的问题（不考虑符号位的话，NaN比其他值都大，实际比较结果如何？——undefined behavior） 其他情况都可以直接使用无符号整数的比较方式：规格化 vs 非规格化，规格化 vs 无穷



2. Rounding（舍入）

各种舍入模式：Zero, Round down, Round up, Nearest Even

向偶数舍入（Round-To-Even） 也称“向最接近值的舍入”，其他方式会产生统计误差（statistically biased） 关键的设计决策是确定两个可能结果的中间数值的舍入

“Even”意味着最低有效数字需为0，而最低有效数字右侧的位串为100...

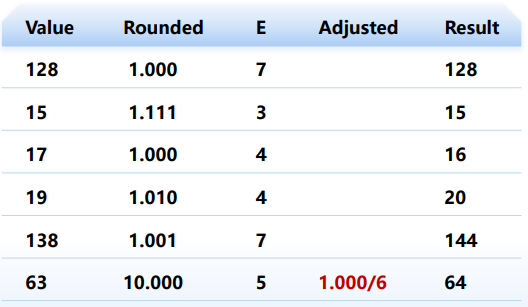

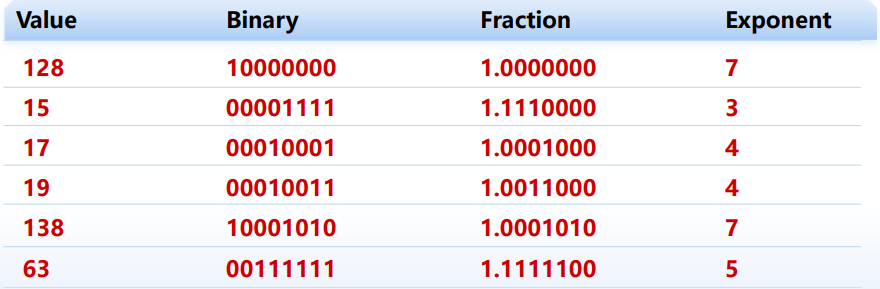

实例：将无符号数转换为8位浮点数并舍入

① 规格化 => ② 舍入 => ③ 调整/Postnormalize（舍入操作可能引起溢出）

3. C语言中的浮点数（类型转换）

int（32位宽），float（1+8+23=32位宽），double（1+11+52=64位宽）

• double或float => int 尾数部分截断；不足位补零 如果溢出（考虑double/float可以表示的最大值要比int能表示的最大值要大，此时发生溢出）或者浮点数是NaN，则转换结果没有定义：通常置为$T_{min}$$T_{min}$或$T_{max}$$T_{max}$
• int => double 能够精确转换
• int => float 不会溢出，但是可能被舍入（因为随着float数值变大它会变“稀疏”）

2 代码

2.1 汇编语法

1. 汇编体系结构

（冯诺伊曼架构 / Control Flow）

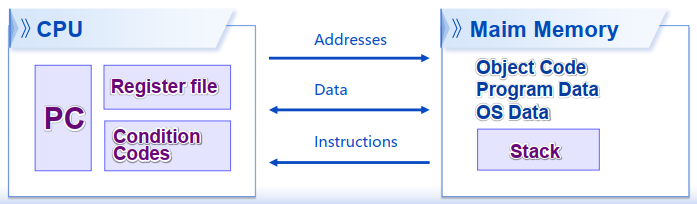

• 指令寄存器 / Program Counter / PC 存储下一条指令的地址 x86-64架构下的名字为RIP (8 bytes / 4 bytes(RISC-V))
• 寄存器与寄存器堆 / Register File 在处理器内部的以名字来访问的快速存储单元 (≈16 × 8bytes)
• 条件码 / Condition Codes 用于存储最近执行指令的结果状态信息 用于条件指令的判断执行 (≈ bytes)
• 内存 / 存储器 / Main Memory 以字节编码的连续存储空间 存放程序代码 (object code)、数据 (program data)、运行栈 (stack)以及操作系统数据 (OS data) (≈ GB) （简化理解）内存存放的三样东西：程序代码、运行栈、全局变量

寄存器 vs 内存：

2. 汇编代码

(web)Compiler Explorer

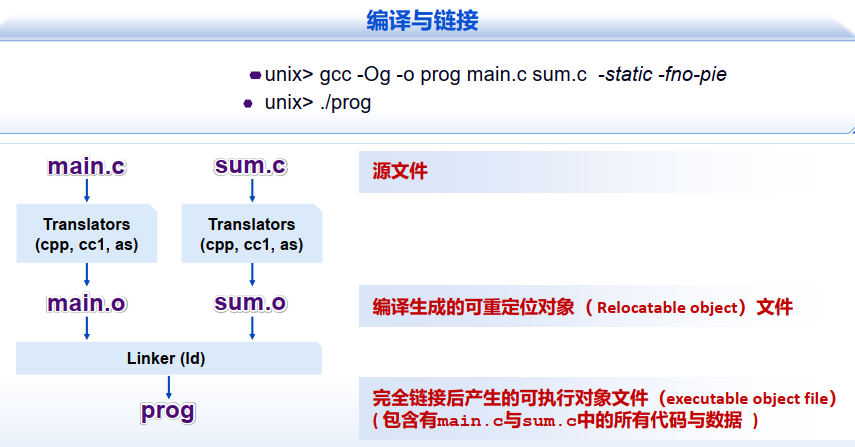

生成汇编代码的命令行：gcc -Og -S sum.c #-fno-stack-protector 其中：-S生成文件sum.s，-c的话生成sum.o（即对象文件，内含机器指令）

​x
g++ -E main.cpp -o main.ii //Preprocess：预处理命令（处理#include和宏）
g++ -S main.ii -o main.s //Compile：编译为汇编代码
g++ -c main.s -o main.o //Assemble：编译成指令并保存在对象文件
//这三个合称“编译期”
g++ main.o -o main //Link：将对象文件和标准库链接为二进制可执行文件，“链接期”

//其他编译选项：
g++ test.cpp --std=c++11 -fno-elide-constructors -o test
    //禁止编译器进行返回值优化
g++ test.cpp -g -o test -fsanitize=undefined,address
    //查看非法访问、溢出、内存外泄的强大命令

//其它：
gcc编译C代码，g++编译C++代码

反汇编命令：objdump -S/-d a.o, objdump -S/-d a

• 常见的C/C++编译器：GCC, Clang, MSVC, ICC
• 此部分见讲义assembly_tutorial

2.0 操作类型

• 对寄存器数据或者内存数据进行算术/逻辑操作
• 内存与寄存器之间、或者寄存器/寄存器之间传递数据
• 程序执行顺序的转移（transfer control）

2.0 通用寄存器

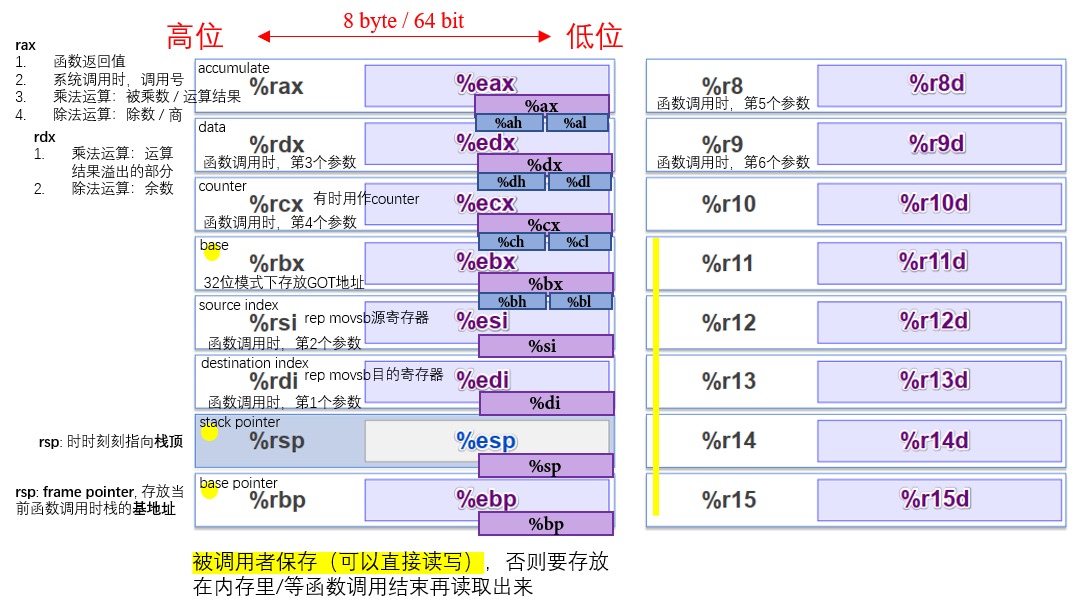

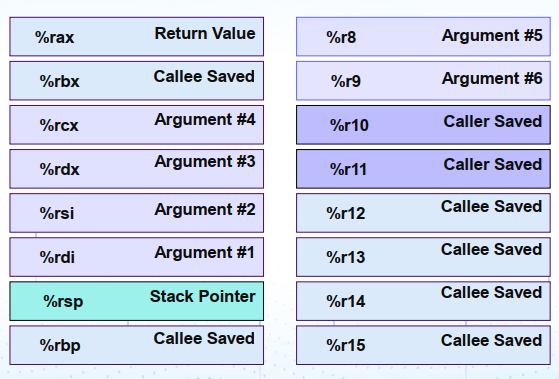

通用寄存器 / General-Purpose Register

当参数少于7个时，参数从左到右放入寄存器：rdi, rsi, rdx, rcx, r8, r9。当参数为7个及以上时，前6个传送方式不变，但后面的依次“右向左”放入栈中

被调用者保存：汇编程序通常而言，在调用函数前，如果这些寄存器里存放了东西，需要把它们存到内存（栈）里

2.1 基本概念（AT&T）

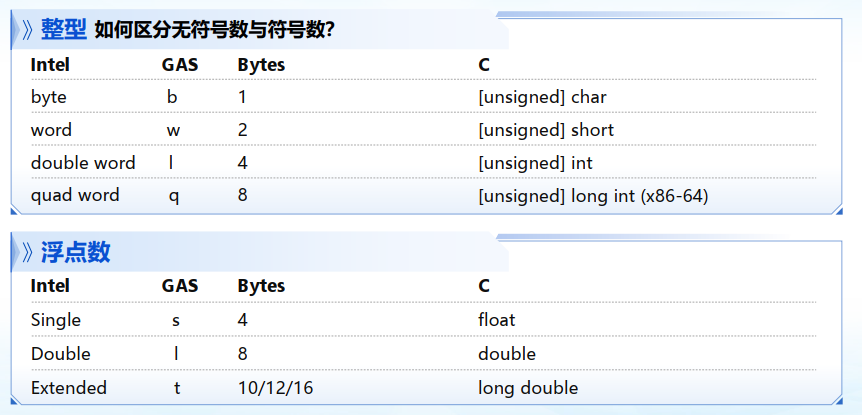

• 数据类型

  • 整型数据：数据宽度为1,2,4,8 bytes
  • 浮点数据：数据宽度为4,8,10 bytes
  • 无复杂数据类型：没有结构或者数组之类的

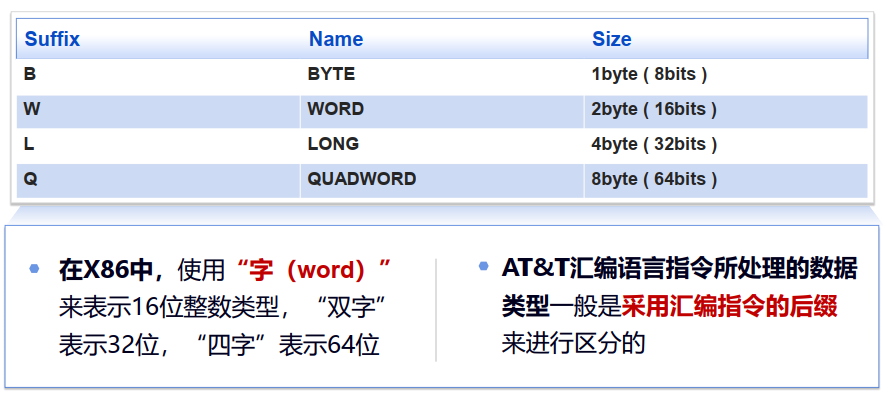

• 数据格式

  • 前缀（AT&T） 寄存器前被冠以% 立即数前被冠以$ 十六进制数前被冠以0x

  • 后缀 分别对应的寄存器名称为：al/ab, ax, eax, rax



    [EG]：movl表示操作32bit寄存器，movb表示操作8bit寄存器

  • 操作数方向 源操作在前，目的操作数在后 [EG]：movl $0x42, %ah：把立即数$0x42放到寄存器%ah中 对于内存单元操作数来说，在AT&T中是把寄存器用()括起来 [EG]：movl %ebx, 8(%si)：将%ebx寄存器里的值放到内存地址是8(%si)的内存单元上，相当于intel汇编中的[si + 8]

2.2 常用指令（CSDN）

1. 运算指令

   xxxxxxxxxx
   addl %edx, %eax     //edx+eax，结果放到eax
   add $5, %r10    //5+r10，结果放到r10
   inc %r10    //r10加1

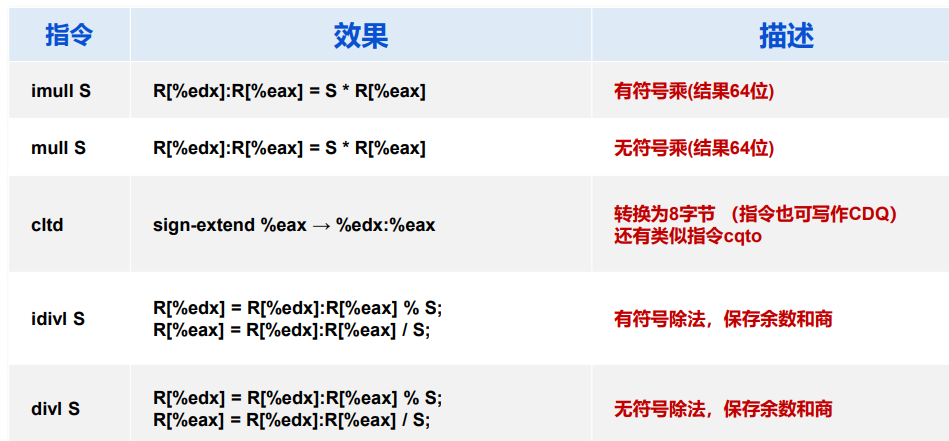

   mul %r10    //将rax乘以r10，将结果放到rax中，溢出部分放到rdx
   div %r10    //rax除以r10，商放到rax，余数放到rdx


2. 拷贝指令

   xxxxxxxxxx
   mov %r10,%r11   //将r10寄存器的值赋值给r11 ；
   mov $99,%r10    //将立即数99赋值给r10寄存器；
   mov %r10,(%r11) //将r10的值拷贝到r11寄存器中的数值指向的内存地址上；
   mov (%r10),%r11 //将r10中数值指向的内存地址上的内容拷贝到r11；
   push %r10       //将r10的值放到栈上 ；
   pop %r10        //将栈顶的值pop到r10寄存器上。


3. 流程控制指令

   xxxxxxxxxx
   cmp %r10,%r11 //比较r10和r11，根据比较结果来设置CPU的状态寄存器，从而影响后面的jump语句；
   cmp $99,%r11  //比较99和r11，根据比较结果来设置CPU的状态寄存器，从而影响后面的jump语句；
   jmp label     //跳转到label
   je label      //如果相等，跳转到label
   jne label     //如果不相等，跳转到label
   jl label      //如果小于，跳转到label
   jg label      //如果大于，跳转到label
   call label    //调用函数
   ret           //从函数调用返回

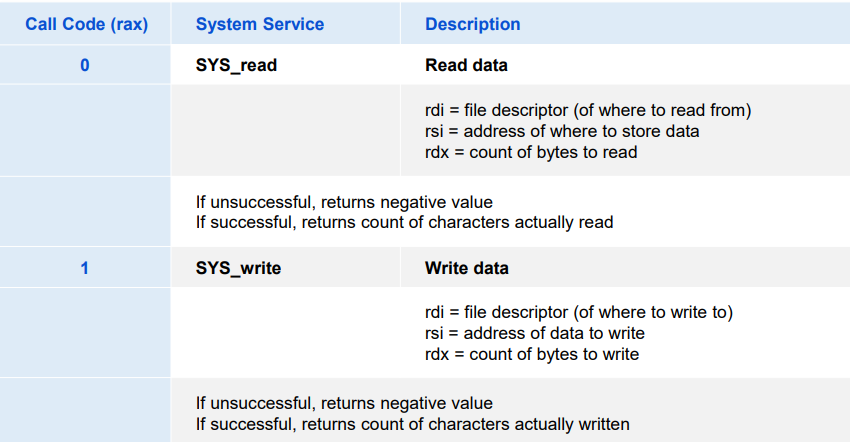

   syscall       //系统调用 (32位模式下, 使用"int $0x80" 软中断)

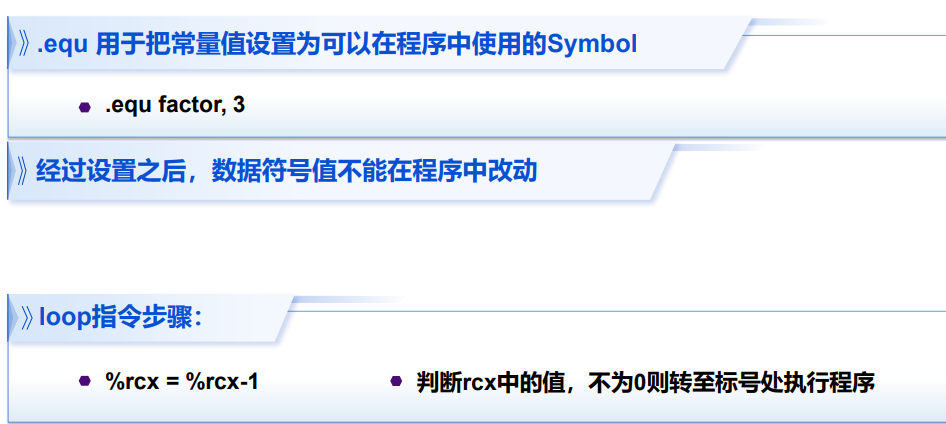

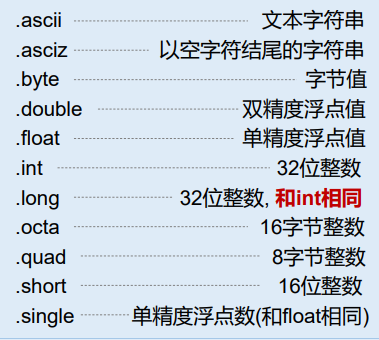

4. 汇编指示符（assembler directive） 编译出的汇编文件的开始处，有一段由句号. 开头的指令，是AT&T 汇编指示符。这里命令名的其余是字母，通常使用小写。这些不会被翻译成机器指令，而是给汇编器一些特殊指示，称为汇编指示（Assembler Directive）或伪操作（Pseudo-operation）

   • .byte表达式 可不带参数或者带多个表达式参数，表达式之间由逗号分隔，每个表达式参数都被会变成下一个字节
   • .word表达式 这个表达式表示任意一节中的一个或多个表达式，表达式占一个字（两个字节）
   • .file字符（string） 通告编译器我们准备开启一个新的逻辑文件，string是新文件名。
   • .text小节（subsection） 通知as编译器把后续语句汇编到编号为subsection的正文子段的末尾，subsection是一个纯粹的表达式
   • .code16：告诉编译器生成16位的指令
   • .globl：定义全局符号
   • .fill repeat, size, value

2.3 栈操作

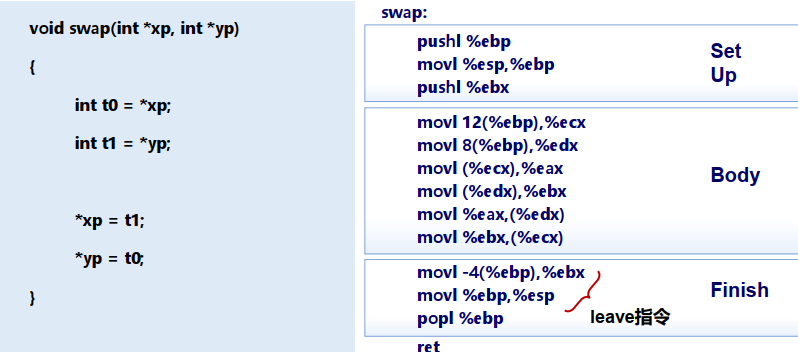

每个汇编代码块的开始都有以下一样的汇编指令：

xxxxxxxxxx
pushl %ebp      //将调用者的栈底部地址保存起来
movl %esp, %ebp     //将调用者的栈顶部地址设置为本栈帧的底部
subq $18, %rsp      //为变量申请内存空间，开辟了24字节

可以简单的理解为：保存上一个函数的栈底指针，然后重新开始一个新的栈

3. 指令操作（上课PPT）

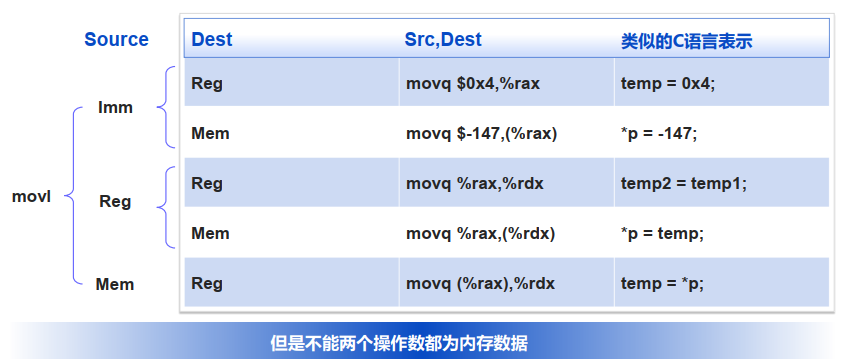

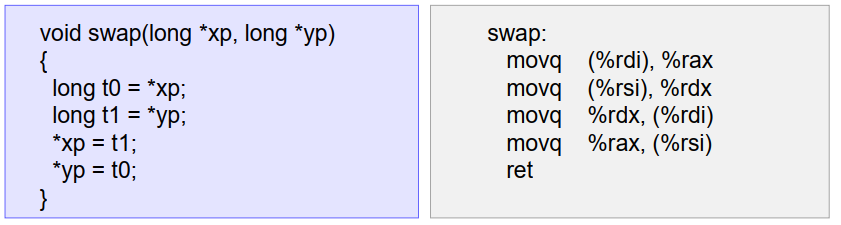

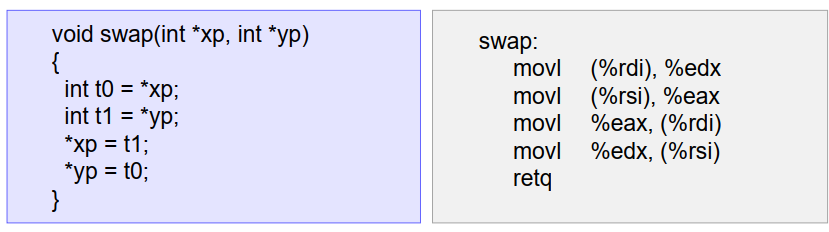

3.1 数据传送指令（mov）

mov指令集：movb, movw, movl, movq，movslq（将一个双字节符l拓展移动到四字地址q中），movzwl（读取一个字word然后将其拓展到双字节l）

MOVS类指令：将较小的源复制到较大的目的时使用，通过符号扩展来填充 MOVZ类指令：将较小的源复制到较大的目的时使用，通过剩余字节补0来填充

基本语法：movq Source, Dest

操作数类型

• lmm: 立即数 / 整型常数（[EG]: $0x400, $-533）：$prefix$$prefix$=$
• Reg: 寄存器（16个通用处理器之一）：$prefix$$prefix$=%
• Mem: 内存（8个连续字节，起始地址由相应寄存器内容指定）（[EG]: (%rax)）：$prefix$$prefix$=%

3.2 寻址模式

1. 间接寻址

   格式：$(R)$$(R)$ 寄存器R指定内存地址 内存地址：$Mem[Reg[R]]$$Mem[Reg[R]]$ 指令：movq (%rcx), %rax

2. 基址+偏移量寻址

   格式：$D(R)$$D(R)$ 寄存器R指定内存起始地址，常数D给出偏移量 内存地址：$Mem[Reg[R]+D]$$Mem[Reg[R]+D]$ 指令：movq 8(%rbp), %rdx

3. 变址模式

   格式：$D(Rb,Ri,S)$$D(Rb, Ri, S)$ $D$$D$：常量（地址偏移量） $S$$S$：比例因子（1, 2, 4 or 8） $Rb$$Rb$：基址寄存器，16个通用寄存器之一 $Ri$$Ri$：索引寄存器，%rsp不作为索引寄存器

   内存地址：$Mem[Reg[Rb]+S\ast Reg[Ri]+D]$$Mem[Reg[Rb]+S*Reg[Ri]+D]$ 指令（三种常见变形）： $(Rb,Ri)$$(Rb, Ri)$: $Mem[Reg[Rb]+Reg[Ri]]$$Mem[Reg[Rb] + Reg[Ri]]$ $(D(Rb,Ri))$$(D(Rb,Ri))$: $Mem[Reg[Rb]+Reg[Ri]+D]$$Mem[Reg[Rb]+Reg[Ri] + D]$ $(Rb,Ri,S)$$(Rb, Ri, S)$: $Mem[Reg[Rb]+S\ast Reg[Ri]]$$Mem[Reg[Rb]+S*Reg[Ri]]$

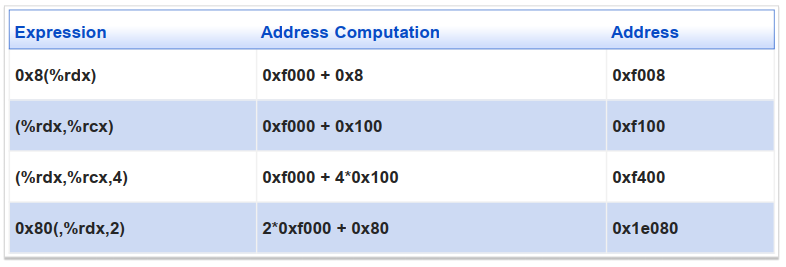

   [EG: 注意 常数不用加$，%rdx == 0xf000, %rcx == 0x100]



X86-64：默认指针参数类型为64位，（如果使用int数据类型，被操作的数据仍是32位）

3.3 地址计算指令

基本语法：leaq Src, Dest 其中，$Src$$Src$是内存地址计算表达式，计算出来的地址赋给$Dest$$Dest$ 使用实例：地址计算（无需访存），[EG]: translation of p = &x[i]; 进行$x+k\times y$$x + k \cross y$这一类型的整数计算，其中$k=1,2,4,8$$k = 1, 2, 4, 8$ [EG]：long m12(long x) { return x * 12; } ==> leaq(%rdi, %rdi, 2), %rax # t <= x+x*2 salq $2, %rax # return t<<2

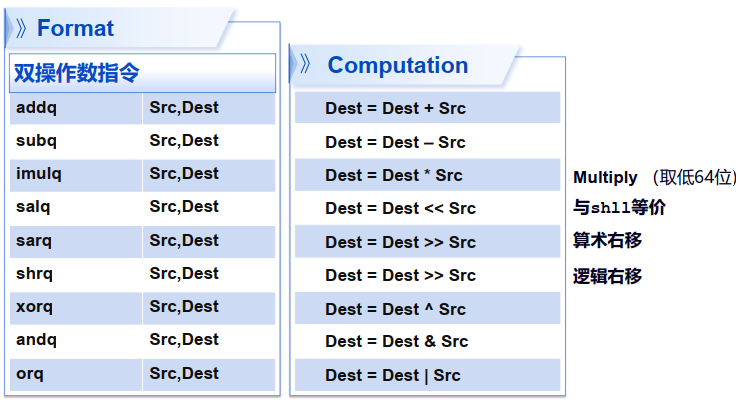

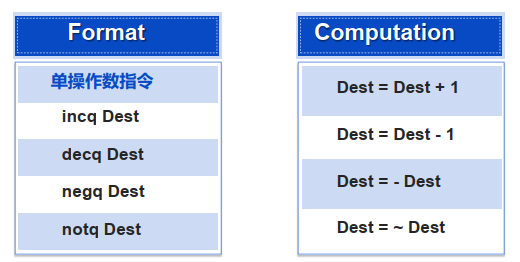

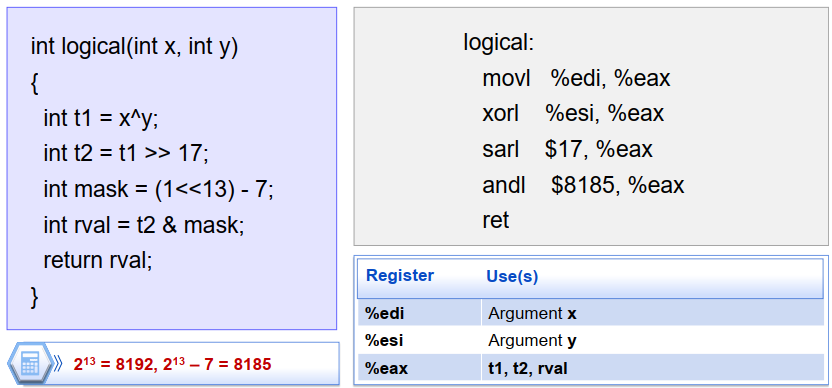

3.4 整数计算指令

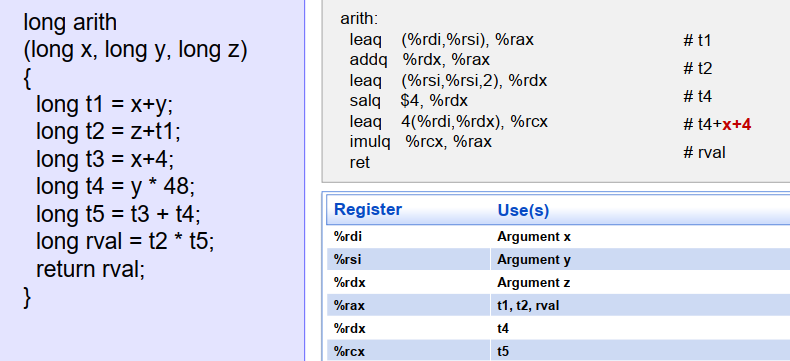

• [EG/一个编译器优化的例子：省略了t3]

• [EG/又一个编译器优化的例子]

4. X86汇编格式

At&T Format 和 Intel / Microsoft Format：别名关系

GAS / GNU Assembler：汇编器

X86-64指令的特点

• 支持多种类型的指令操作数 立即数，寄存器，内存数据
• 支持多种内存地址计算模式 $Rb+S\ast R_i+D$$Rb+S*R_i+D$，也可用于整数计算（如leal/leaq指令）
• 算逻指令可以以内存数据为操作数
• 变长指令 from 1 to 15 bytes

2.2 指令结构

1. 控制流（control flow）

处理器：从启动到关闭，CPU读取和执行（解释）一个指令序列，一次一条——这个执行顺序被称为CPU的控制流 当前执行程序的信息： 临时数据：%rax... 栈顶地址：%rsp... 当前指令地址/下一条：%rip...（X86架构下的PC） 条件码：CF, ZF, SF, OF 改变控制流的两种机制：Jump and branch, Call and return

• 条件码（由算术指令隐式设置）

  CF: Carry Flag（进位） ZF: Zero Flag SF: Sign Flag (negative if true) OF: Overflow Flag

2. 算术指令

• add

addq Src, Dest

CF 进位标志：可用于检测无符号整数运算的溢出 SF set if t < 0 ZF set if t == 0 OF set if 补码运算溢出（即带符号整数运算）

leaq指令不设置条件码

• cmp

cmpq Src2, Src1 (≈计算Src1-Src2)

CF set if carry out from most significant bit：可用于无符号数的比较 ZF set if a == b SF set if (a-b) < 0 OF set if two's complement overflow：补码计算溢出

• Test

Testq Src2, Src1

计算Src1 & Src2并设置相应的条件码，但是不改变目的操作数

ZF set when a&b == 0 SF set when a&b < 0

CF = 0, OF = 0

• SetX

SetX指令 读取当前的条件码（或者某些条件码的组合），并存入目的字节寄存器（余下的7个字节不会被修改）

[EG/通常使用movzbl指令对目的寄存器进行“0”扩展]

3. 跳转指令

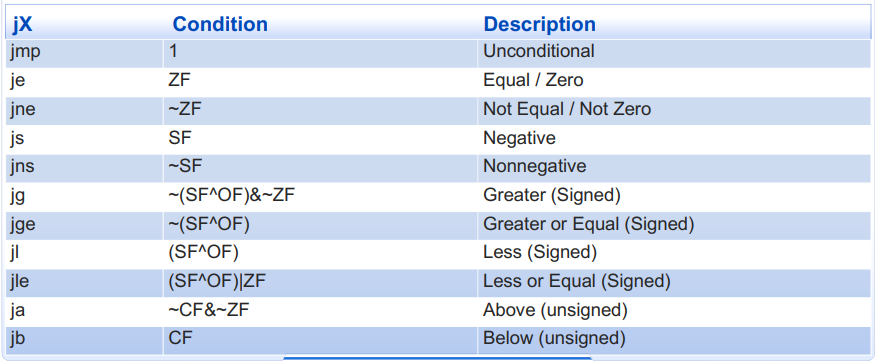

• jX

依赖当前的条件码选择下一条执行语句（是否顺序执行）

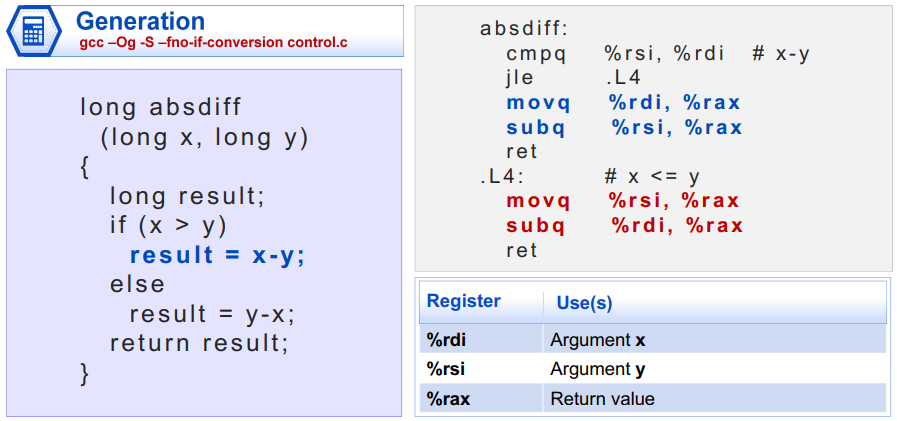

[EG/编译指令：gcc -Og -S -fno-if-conversion control.c]

• Goto

C allows goto statement. Jump to position designated by label.

xxxxxxxxxx
long absdiff_j(long x, long y) {
    long result;
    int ntest = (x <= y);
    if (ntest) goto Else;
    result = x - y;
    goto Done;
  Else:
    result = y - x;
  Done:
    return result;
}

4. 条件移动

语义：$if(Test)Dest<=Src$$if\ (Test)\ Dest <= Src$

条件跳转指令对于现代流水线处理器的执行效率有很大的负面影响 条件移动指令可以避免这一现象

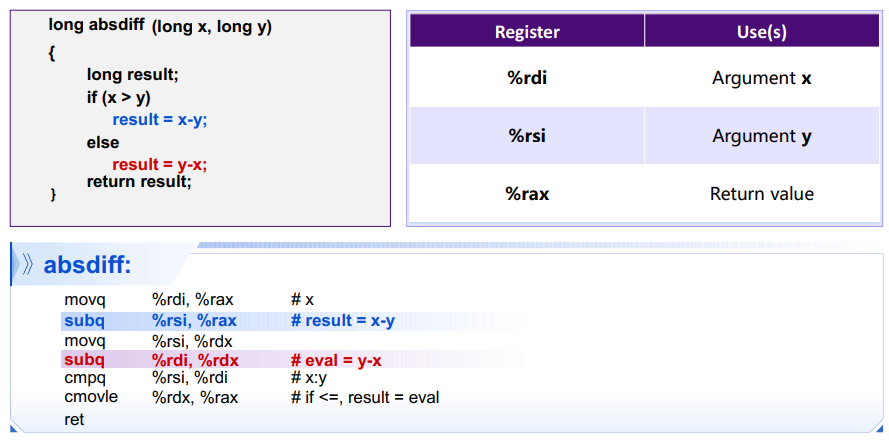

[EG]

条件转移指令的局限性

1. Then-Expr或Else-Expr表达式有“副作用”
2. Then-Expr或Else-Expr表达式的计算量较大

微体系结构背景

处理器流水线（五级流水示例）：

Instruction Fetch (IF) Read Registers (RD) Arithmetic Operation (ALU) Memory Access (MEM) Write Back (WB)

现代的通用处理器，支持深度流水线以及多发射结构 条件跳转指令往往会引起一定的性能损失，因此需要尽量消除

5. 循环/分支指令

• do while & while

• for循环

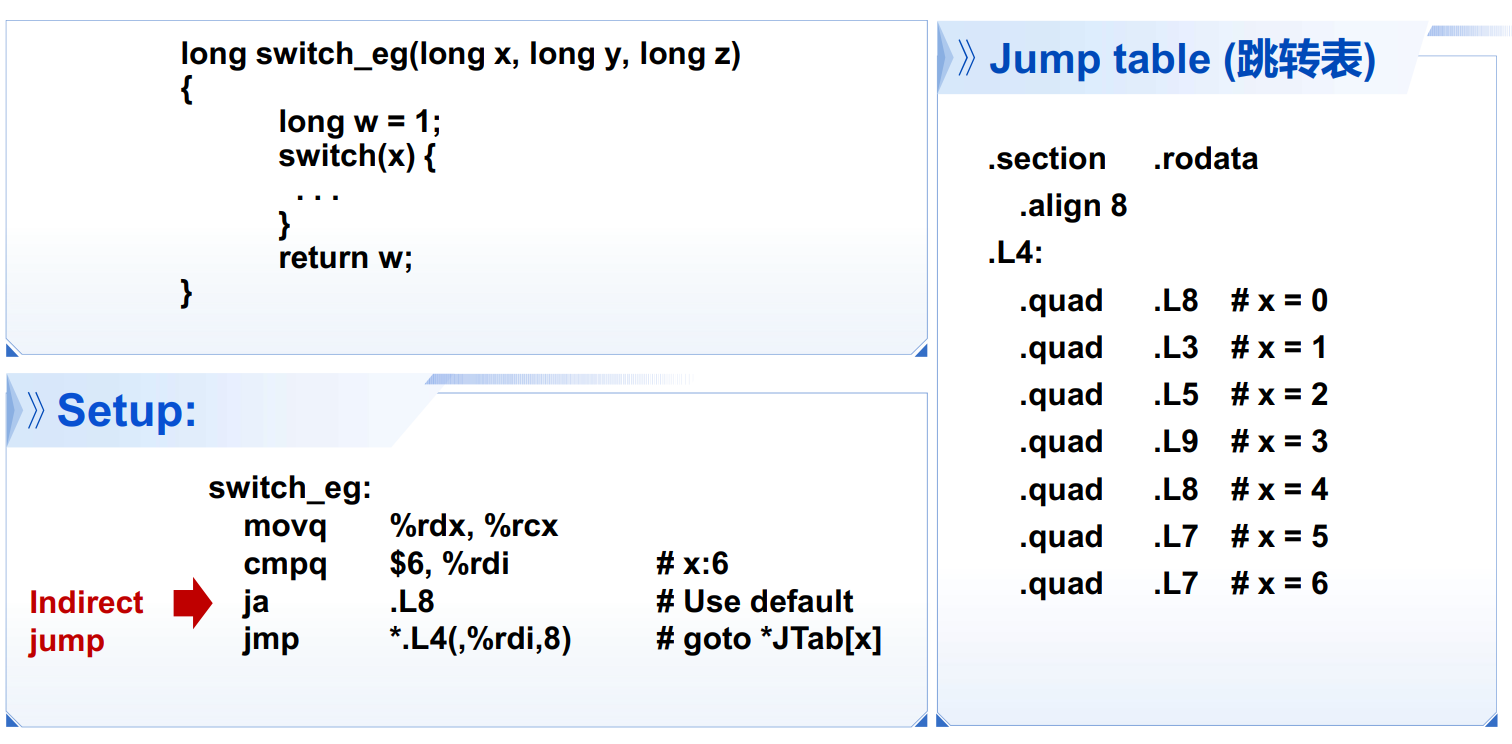

• switch语句：跳转表

  Direct: jmp .L8 / jump target is denoted by label .L8 Indirect: jmp *.L4(, %rdi, 8) start of jump table: .L4 must scale by factor of 8 (addresses are by 8 bytes) fetch target from effective Address .L4 + x * 8 (only for $0\le x\le 6$$0 \le x \le 6$) 间接跳转解决方案不一样，需要linker

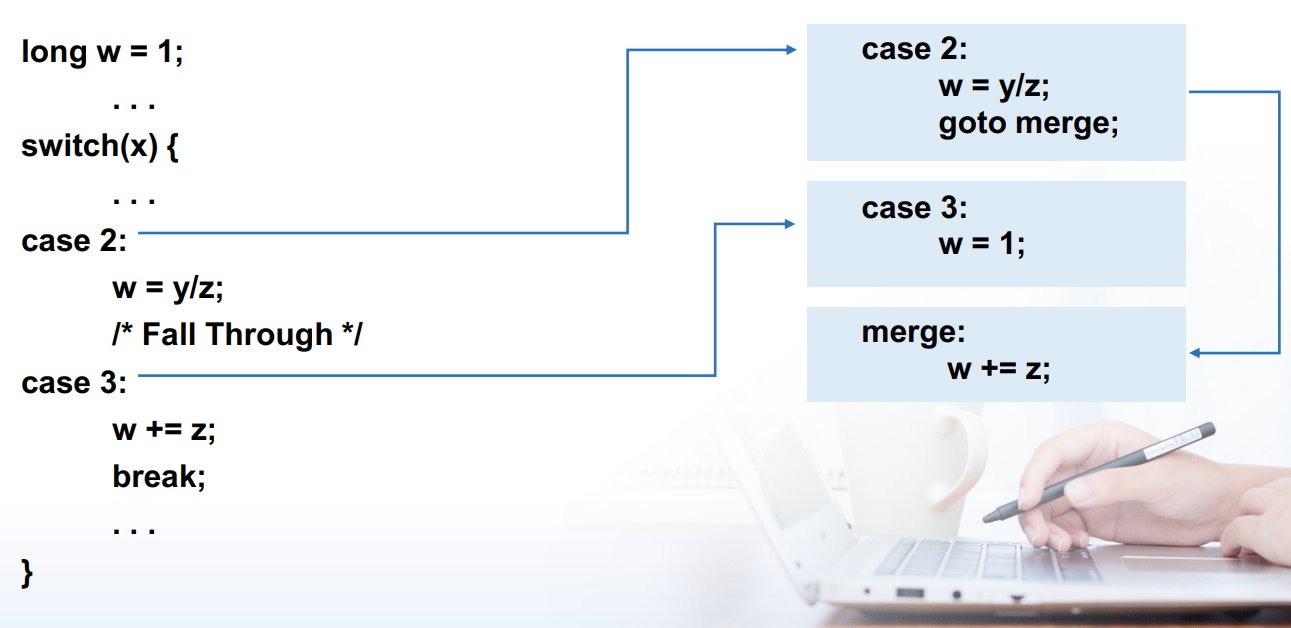

处理 Fall-Through

跳转表的适用范围：其它情况下会使用平衡二叉树的结构，提升性能

2.3 函数与栈帧

基于栈的编程语言

（memory management相关）

1. 支持递归 [EG] C, Pascal, Java 代码是可重入的（Reentrant）——同时有同一个函数的多个实例在运行 因此需要有一块区域来存储每个函数实例的数据——参数/局部变量/返回地址
2. 栈的工作规律 每个实例的运行时间是有限的，即栈的有效时间有限——From when called to when return 被调用者先于调用者返回（一般情况下）
3. 每个实例在栈中维护一个栈帧（stack frame）

• 函数调用的作用与工作机理

  Passing control: 代码调用与返回 Passing data: 函数参数与返回值 Memory management: 调用所需的内存分配/返回时释放

  上述机制都是用机器指令实现的

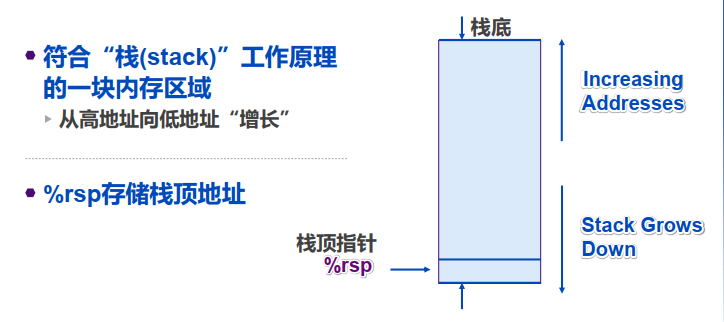

• X86-64的程序栈



  Push Src 从Src取得操作数 $\mathrm{\%}rsp=\mathrm{\%}rsp-8$$\%rsp = \%rsp - 8$ 写入栈顶地址（$\mathrm{\%}rsp$$\%rsp$）

  popq Dest 读取栈顶数据（$\mathrm{\%}rsp$$\%rsp$） $\mathrm{\%}rsp=\mathrm{\%}rsp+8$$\%rsp = \%rsp + 8$ 写入Dest

1. 调用与返回（Passing control）

• 函数调用指令：call label， 将返回地址压入栈，跳转至label
• 返回地址：Call指令的下一条指定地址
• 函数返回指令：ret，跳转至栈顶的返回地址

2. 传参（Passing data）

• 前六个参数存在寄存器内：$\mathrm{\%}rdi,\mathrm{\%}rsi,\mathrm{\%}rdx,\mathrm{\%}rcx,\mathrm{\%}r8,\mathrm{\%}r9$$\%rdi, \%rsi, \%rdx, \%rcx, \%r8, \%r9$ 返回值：$\mathrm{\%}rax$$\%rax$
• 大于六个参数使用栈传递，从右往左压栈

3. 栈帧（stack frame）

• 存储的内容：局部变量、返回地址、临时空间

• 栈帧的分配与释放 进入函数后先分配栈帧空间：set-up code 函数返回时释放：finish code 寄存器%rbp指向当前栈帧的起始地址

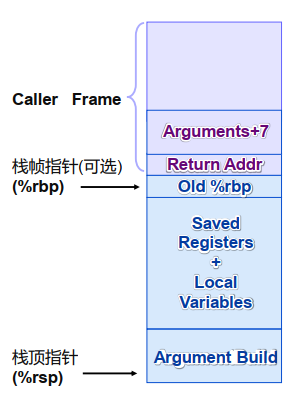

• 当前栈帧的内容（x86-64/Linux）

  子函数参数（Argument build） 局部变量（因为通用寄存器个数有限） 被保存的寄存器值 父函数的栈帧起始地址（可选）

• 父函数的栈帧中与当前函数相关的内容

  返回地址：由call指令存入 当前函数的输入参数



• 操作特性：一次性分配整个帧；释放简单

  1. 将$\mathrm{\%}rsp$$\%rsp$减去某个值（栈帧的大小）
  2. 对于栈帧内容的访问都是基于$\mathrm{\%}rsp$$\%rsp$完成的
  3. 可以延迟分配：直接访问不超过当前栈指针（$\mathrm{\%}rsp$$\%rsp$）128字节的栈上空间
  4. $\mathrm{\%}rsp$$\%rsp$直接加上某个值（栈帧大小）即可释放

4. 寄存器使用惯例

通用寄存器分为两类： 调用者负责保存：Caller在调用子函数之前将这些寄存器内容存储在它的栈帧内，调用后恢复 被调用者负责保存：Callee在使用寄存器之前将其原有内容存储在它的栈帧内，退出前恢复

5. 实例：递归

volatile变量：强制使用栈空间（直接存取原始内存地址）；但在实际使用中没有修改栈顶寄存器%rsp

通常而言，局部变量一般：① 被优化 ② 寄存器 ③ 运行栈，volatile相当于保证了③

Red Zone: The 128-byte area beyond the location pointed to by %rsp is considered to be reserved.

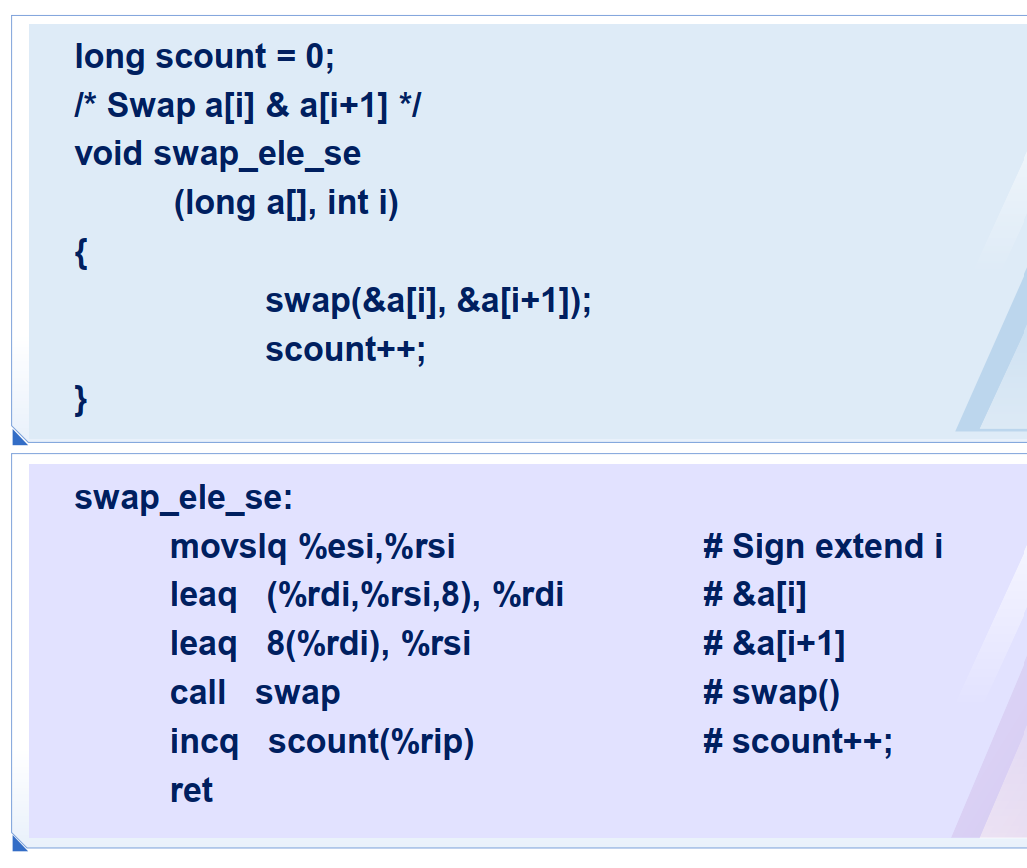

• RIP-relative addressing

  [EG] 全局变量的内存地址位置采用相对于$\mathrm{\%}rip$$\%rip$的地址记录（这是因为$\mathrm{\%}rip$$\%rip$是静态的，对比$\mathrm{\%}rsp$$\%rsp$的地址不断在变化）



2.4 X86-32的函数调用

编译选项：-m32

1. 传参直接压栈（对比X86-64会采用寄存器存储）

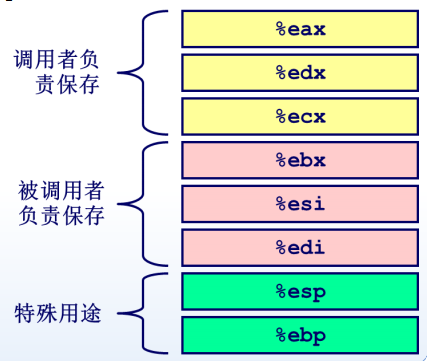

2. 只有8个通用寄存器，caller-callee关系如下：

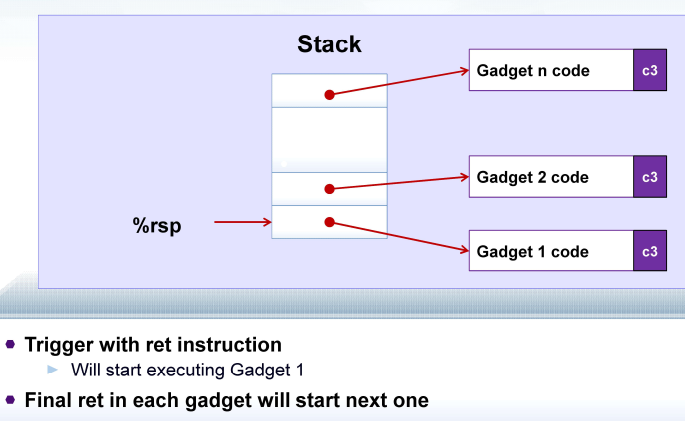

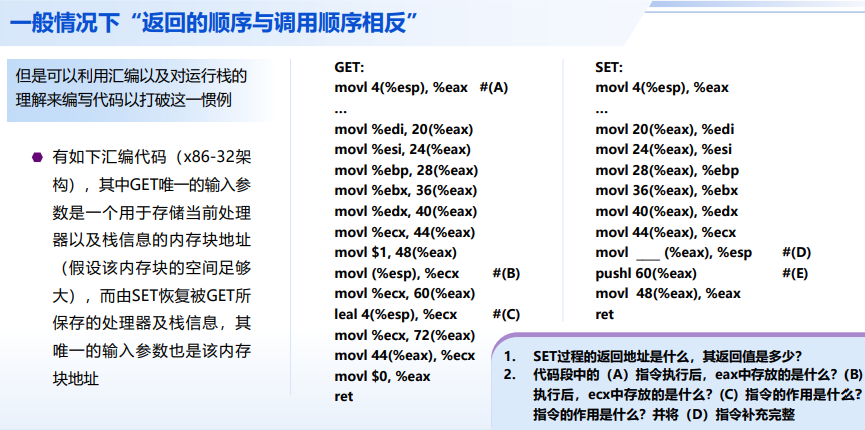

思考：“打破”函数调用与返回顺序

2.5 复合数据类型的汇编表示

基本数据类型

1. 数组与数组访问

一维数组：T A[L] 基本数据类型：T， 数组长度：L 连续存储在大小为L * sizeof(T)字节的空间内

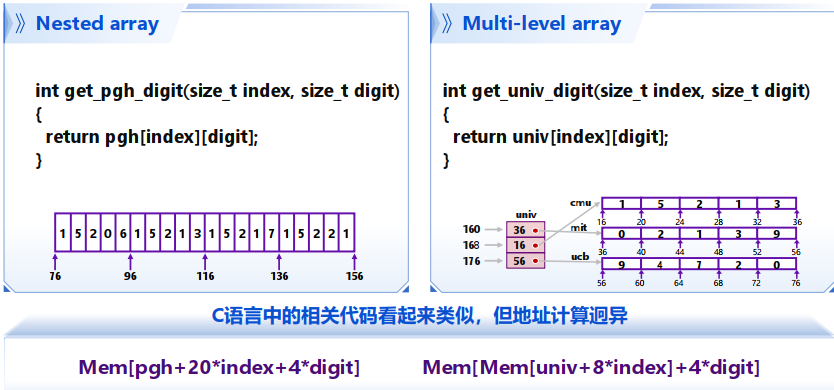

二维数组

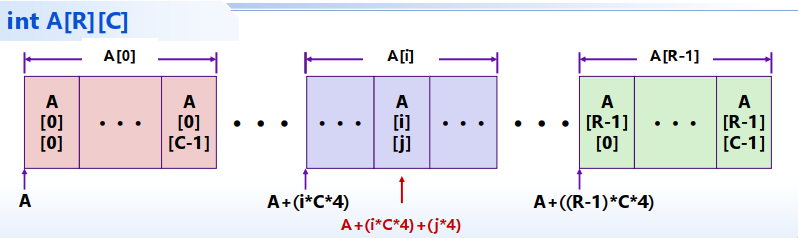

• 嵌套数组：T A[R][C] (R行C列) 数组所占据的空间大小：$R\times C\times Kbytes$$R \cross C \cross K\ bytes$ （T元素占据K字节） 行优先存储（Row-Major Ordering)



• Multi-Level Array / Nested Array 变量univ是一个指针数组，数组长度为3，数组元素长度为8 bytes（int* univ[3] = {a, b, c}） 每个指针指向一个整数数组 与嵌套数组的区别：

• 数组维度大小的确定

  • 固定大小

    编译时就知道数组的维度，也被称为静态数组

  • 可变大小

    运行时才知道数组的维度，也被称为动态数组

    • 显示索引计算：Traditional way to implement dynamic arrays
    • 隐式索引计算：supported by gcc (C99标准)

  静态数组与动态数组访问优化的对比

2. 结构与结构访问

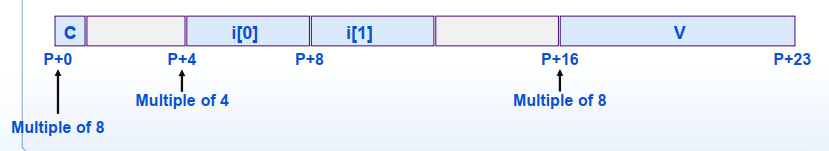

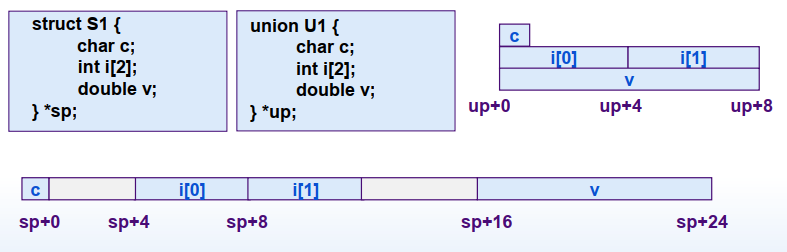

结构的内存存储分布（Memory Layout） 连续分配的内存区域，内部各个域通过名字访问 各个域依声明顺序存放 结构的整体大小与各个域的位置布局由编译器决定（汇编层面不了解结构/域等信息）

• 对齐的一般原则 已知某种基本数据类型的大小为$K$$K$字节，那么其存储地址必须是$K$$K$的整数倍（X86-64） 计算机访问内存一般是以内存块为单位的，块的大小是地址对齐的，如4/8/16字节对齐等（如果数据访问地址跨越“块”边界会引起额外的内存访问）
• 编译器的工作 在结构的各个元素间插入额外空间来满足不同元素的对齐要求

• 对齐要求

  • 基本数据类型 1 byte (e.g. char)：N/A 2 bytes (e.g. short)：地址最后一位为0 4 bytes (e.g. int, float)：地址最后二位为0 8 bytes (e.g. double, char*)：地址最后三位为0 16 bytes (e.g. long double)：地址最后四位为0

  • 结构的存储对齐要求 结构起始地址的对齐要求等同于该结构各个元素中对齐要求最高的那个 结构中元素的对齐要求必须满足该元素自身的对齐要求 结构的长度必须是该结构各个元素中对齐要求最高的那个元素长度的整数倍

    example：struct S1 {char c; int i[2]; double v;}——[K =8]

    S1如果是一个数组，那么数组中的每个元素（结构体）的地址是8的整数倍 ​ i必须是4对齐

  • 数组的每个元素在结构中的相对地址在编译时就已确定

  • 结构数组：整体结构长度乘以数组长度，满足每个元素的对齐要求

    访问结构数组中的元素： 首先计算数组元素（即结构）的地址 然后访问该结构中的原元素

    结构内元素不同，字节浪费情况也不相同

• union / 联合

  union中可以定义多个成员，union的大小由最大的成员的大小决定 union成员共享同一块大小的内存，一次只能使用其中的一个成员



2.6 链接

数据、函数、指令的“定位”：

xxxxxxxxxx
g++ -E main.cpp -o main.ii //Preprocess：预处理命令（处理#include和宏）
g++ -S main.ii -o main.s //Compile：编译为汇编代码
g++ -c main.s -o main.o //Assemble：编译成指令并保存在对象文件
//这三个合称“编译期”
g++ main.o -o main //Link：将对象文件和标准库链接为二进制可执行文件，“链接期”

1. 静态链接（Static Linking）

源文件 => 编译生成可重定位对象（Relocatable Object）文件 => 完全链接后产生可执行对象文件（executable object file）

程序链接的作用：

1. 模块化好 多个小的源文件可以链接成一个程序，而不是一个巨大的单一源文件 可以将多个通用函数链接成库文件
2. 工作效率高 省时间：独立编译 某个原文件被修改后，可以独立编译并重链接，而不需要编译所有文件 省空间：库文件 多个通用函数可以被集成到一个文件中 可执行文件及其运行时的内存镜像（memory image）内只包含有实际使用到的函数

符号解析 / Symbol Resolution

• 程序定义以及引用了一系列符号（symbols，包括变量和函数）

define symbol: void swap() {...} reference symbol: swap(); define symbol and reference: int *xp = &x;

• 编译器将符号定义存储在符号表（symbol table）中

Symbol table is an array of structs Each entry includes name, size and location of symbol

• 连接器将每一个符号引用（reference）与符号定义联系起来

重定位 / Relocation

1. 将多个文件的数据 / 代码段集成为单一的数据段和代码段
2. 将.o文件中的符号解析为绝对地址
3. 然后将所有的符号引用更新为这些新的地址

2. 对象文件

• 重定向对象文件（.o文件）/ Relocatable object file 含有一定格式的代码与数据内容，可以与其它重定向对象文件一起集成为执行文件 一个.o文件由唯一的一个源文件生成
• 执行文件（.out文件）/ Executable object file 含有一定格式的代码与数据内容，可以直接被装载入内存并执行
• 共享对象文件（.so文件）/ Shared object file 特殊类型的重定向对象文件，可以被装载入内存后进行动态链接；链接可以在装载时或者运行时完成 Windows系统下被称为DLL文件

标准二进制格式：Executable and Linkable Format (ELF) 最初由AT&T System V Unix系统采用，后来被广泛采用

Windows uses the Portable Executable (PE) format Mac OS-X uses the Mach-O format Modern x86-64 Linux and Unix systems use Executable and Linkable Format

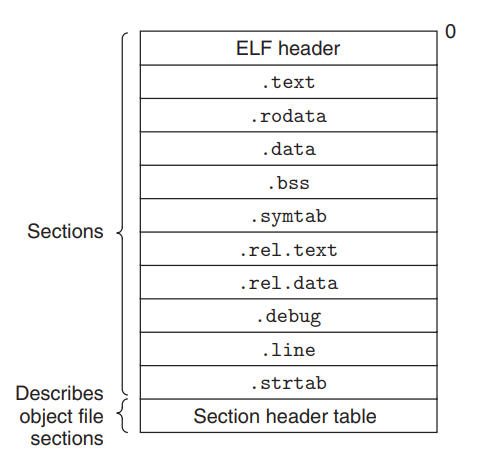

ELF 文件的格式

readelf main.o -h：显示ELF header信息 readelf main.o -S：显示section headers信息 readelf main.o -e：相当于-h, -l, -S readelf main.o -s：显示.symtab段的信息 readelf main.o -r：显示重定位段信息 readelf main.o -a：显示所有信息

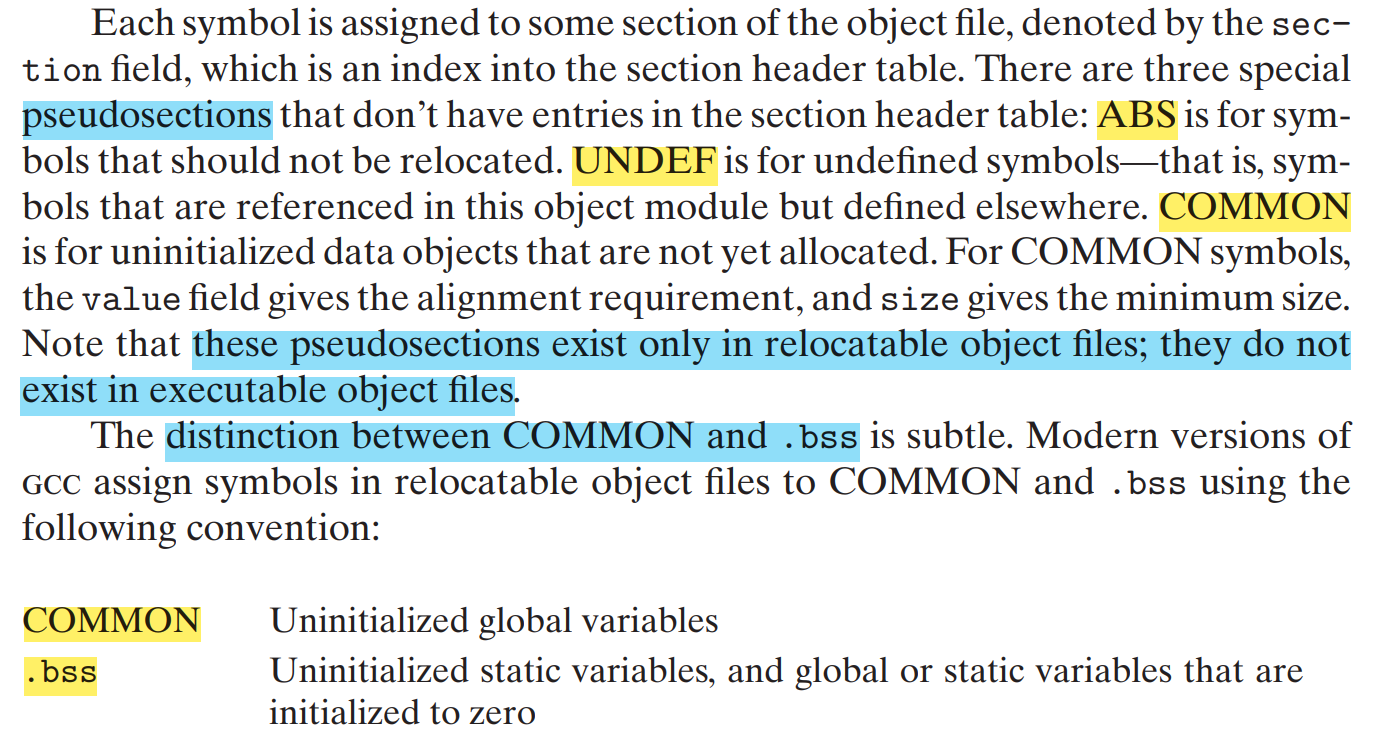

In Section 7.5, we saw how the compiler assigns symbols to COMMON and .bss using a seemingly arbitrary convention. Actually, this convention is due to the fact that in some cases the linker allows multiple modules to define global symbols with the same name. When the compiler is translating some module and encounters a weak global symbol, say, x, it does not know if other modules also define x, and if so, it cannot predict which of the multiple instances of x the linker might choose. So the compiler defers the decision to the linker by assigning x to COMMON. On the other hand, if x is initialized to zero, then it is a strong symbol (and thus must be unique by rule 2), so the compiler can confidently assign it to .bss. Similarly, static symbols are unique by construction, so the compiler can confidently assign them to either .data or .bss.

• ELF header Word size, byte ordering, file type (.o, exec, .so), machine type, etc.

  begin with: a 16-byte sequence that describes the word size and byte ordering of the system that generated the file

  rest: information that allows a linker to parse and interpret the object file (size of the ELF header, object file type, machine type, file offset of the section header table, size of various sections described by the section header table)

• Segment header table Page size, virtual addresses memory segments (sections), segment sizes.

• .text section Code (functions)

• .rodata section Read only data: format strings, jump tables, ...

• .data section Initialized global variables, initialized static C variables (not zero)

  Local C variables are maintained at run time on the stack and do not appear in either the .data or .bss sections

• .bss section (better save space) Uninitialized static C variables, global or static variables that are initialized to zero Has section header but occupies no space (merely a placeholder). At run time, they are allocated in memory with an initial value of zero.

  Uninitialized global variable is classified as COMMON

• .symtab section Symbol table with information about functions and global variables defined and referenced in the program (no local variables)

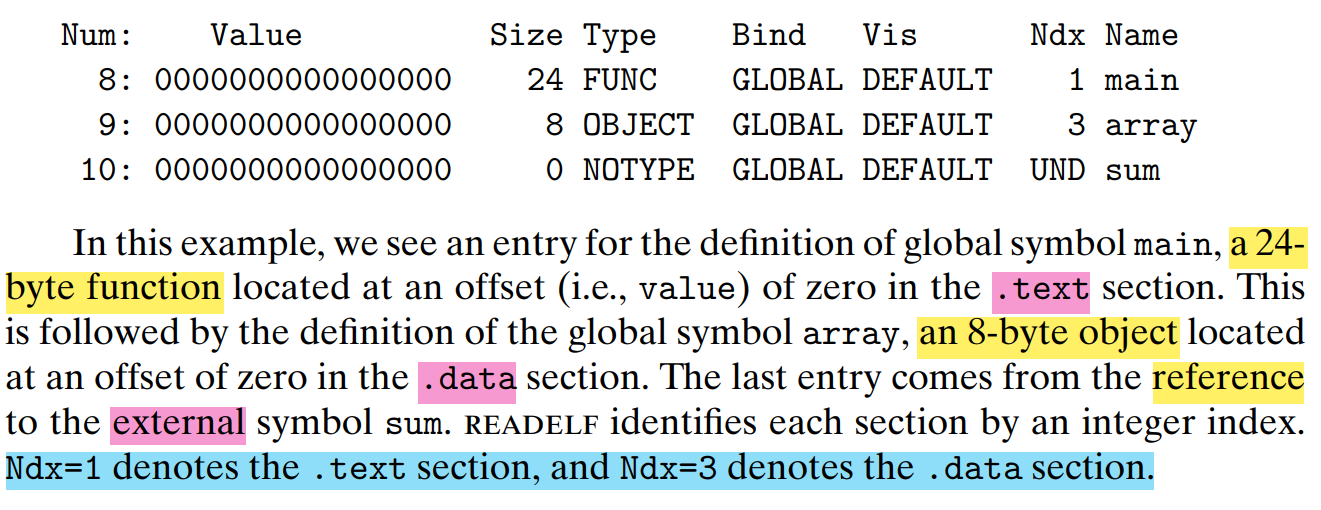

符号表 / Symbol Tables

1. 全局符号 / Global symbols, defined by module m e.g. nonstatic C 函数，nonstatic 全局变量
2. 外部符号 / External symbols, referenced by module m e.g. nonstatic C 函数，nonstatic 全局变量

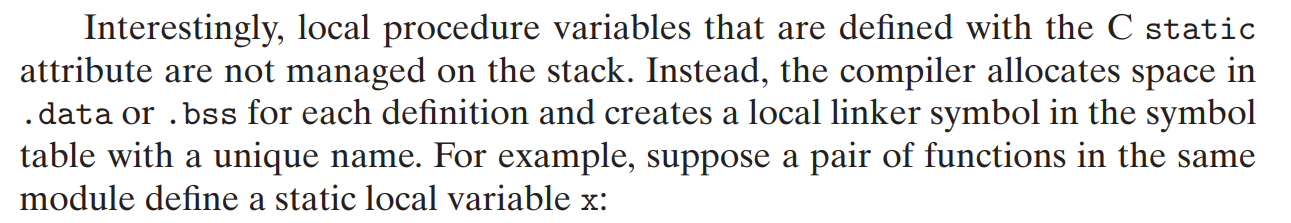

3. 局部符号 / Local symbols e.g. static 全局变量（不是local variables） 这部分变量不保存在栈上，编译器在.data或.bss分配空间并且在symbol tables里分配独一无二的别名（e.g. 两个函数分别定义static int x = 0，则在汇编器中定义的别名不同）

Symbol tables are built by assemblers, using symbols exported by the compiler into the assembly-language .s file.

• .rel.text section Relocation info for .text section Addresses of instructions that will need to be modified in the executable Instructions for modifying. usually ommited in executable object files
• .rel.data section Relocation info for .data section Addresses of pointer data that will need to be modified in the merged executable
• .debug section Info for symbolic debugging (-g option)
• .line section a mapping between line numbers in the original C source program and machine code instructions in the .text section (-g option)
• .strtab section a string table for the symbol tables in the .symtab and .debug sections and for the section names in the section headers
• Section header table Offsets and sizes of each section

全局变量重复定义

Strong: procedures and initialized globals Weak: unintialized globals

Rule.1 Multiple strong symbols with the same name are not allowed. Otherwise: Linker error

Rule.2 Given a strong symbol and multiple weak symbols with the same name, choose the strong symbol.

Rule.3 Given multiple weak symbols with the same name, choose any of the weak symbols. can override this with gcc -fno-common

3. 代码与数据重定位

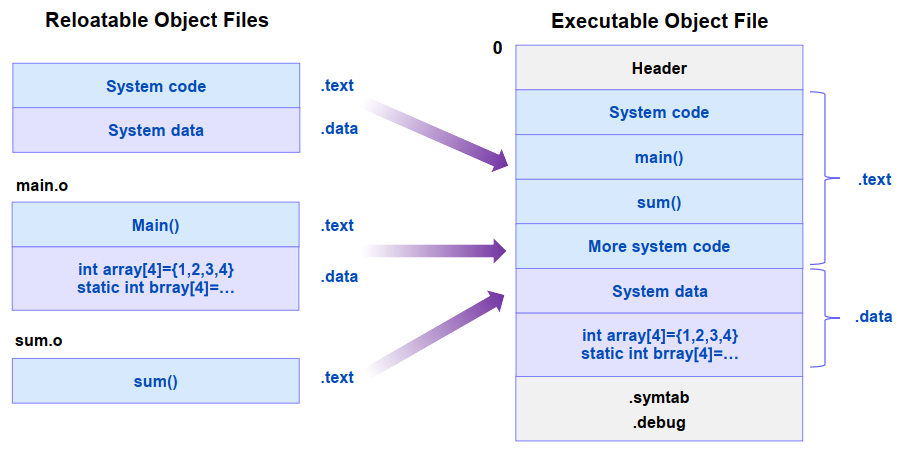

1. Relocating sections and symbol definitions merge sections from relocatable object files to executable object files assign run-time memory addresses to the new aggregate sections, to each section defined by the input modules, and to each symbol defined by the input modules
2. Relocating symbol references within sections modify every symbol reference in the bodies of the code and data sections so that they point to the correct run-time addresses

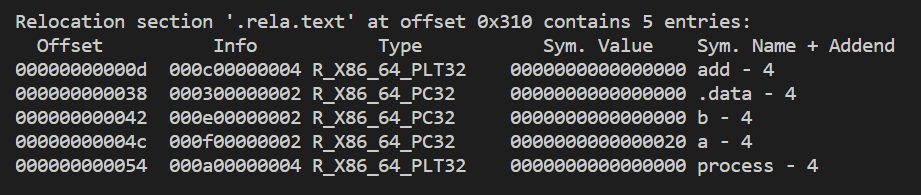

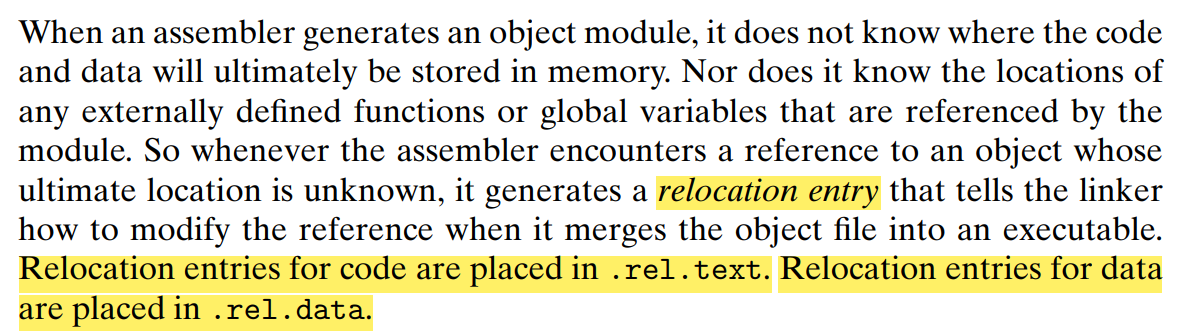

Relocation Entry

• Addend The addend is a signed constant that is used by some types of relocations to bias the value of the modified reference
• Type: R_X86_64_PC32 Relocate a reference that uses a 32-bit PC-relative address. R_X86_64_PLT52：计算方法同PC32，可以理解为新版本的PC32
• Type: R_X86_64_32 Relocate a reference that uses a 32-bit absolute address.

these two relocation types support the x86-64 small code model programs larger than 2GB can be compiled using the -mcmodel=medium/large flags

计算过程

objdump -dx main.o: disassembled code

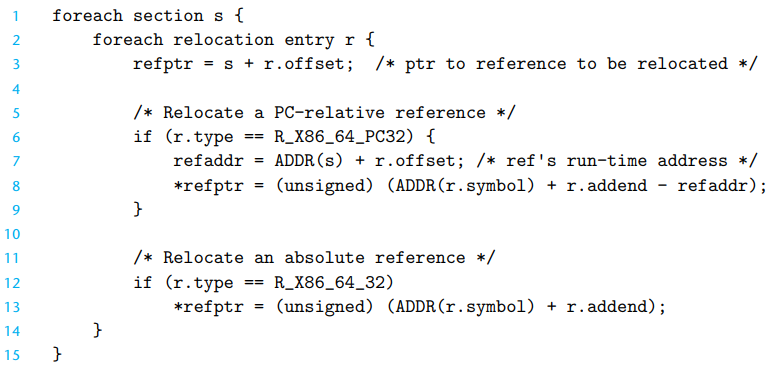

重定位算法：

• 重定位 PC-relative references

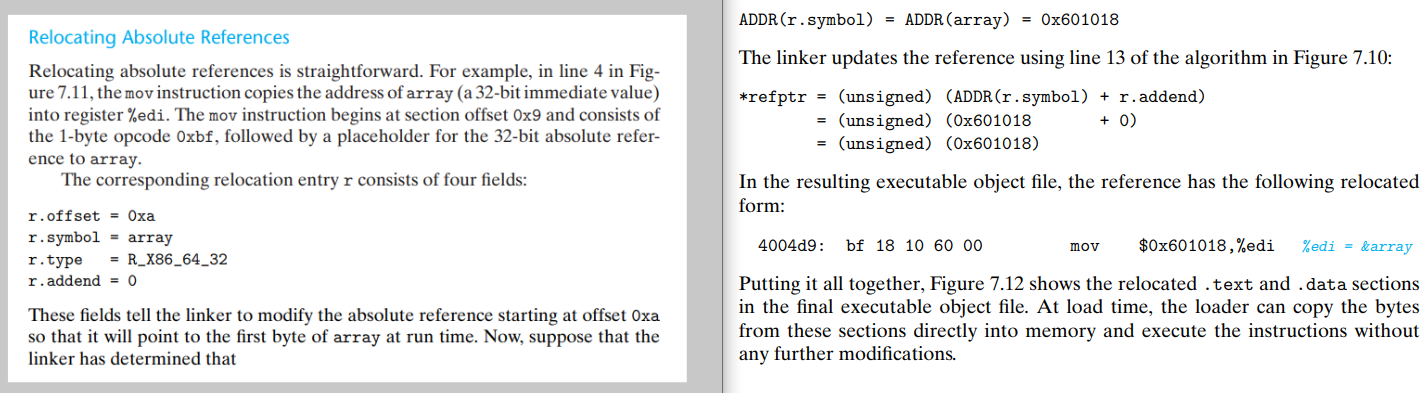

• 重定位 Abosolute references



  Result:

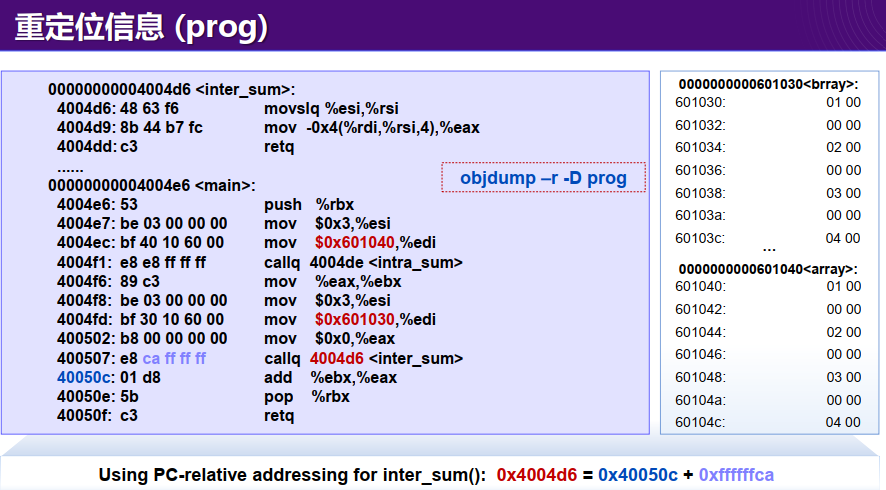

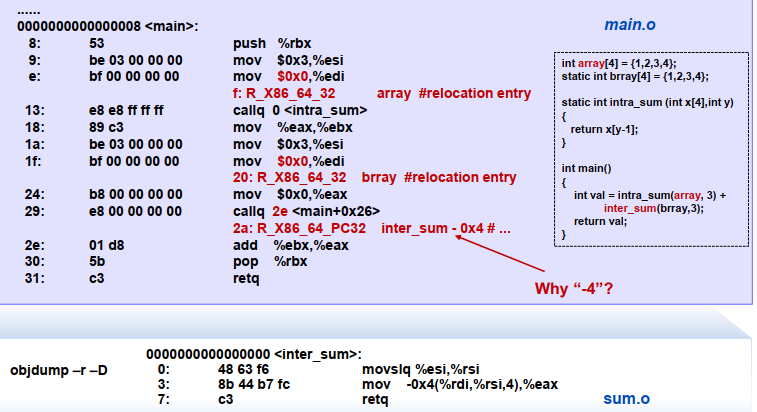

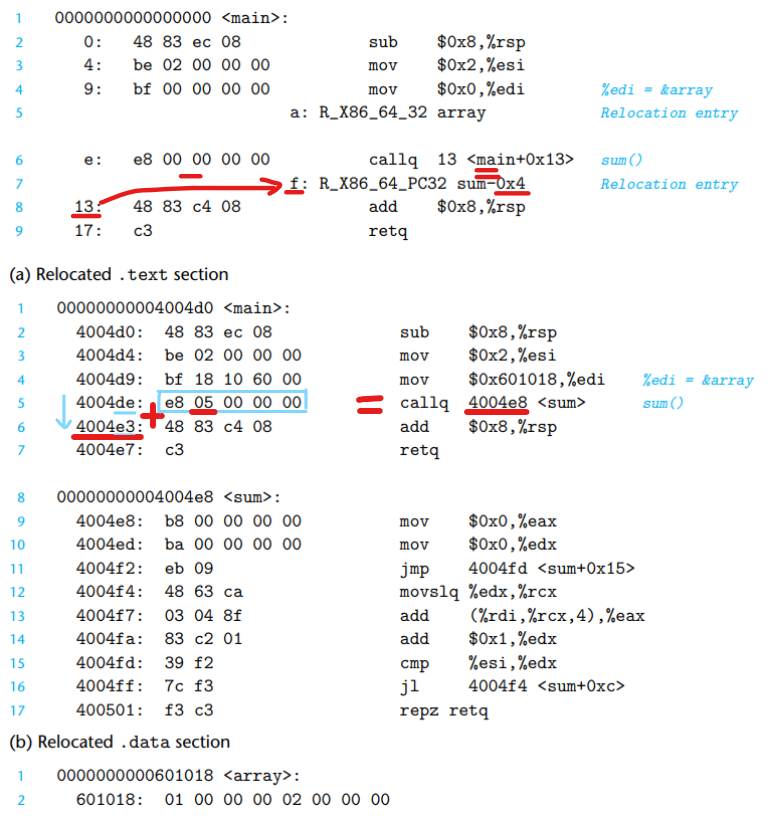

e.g. 重定位信息（main.o, sum.o）

此处，为什么“inter_sum - 0x4"：

1. 机器码e8对应的含义是call
2. 该行占据的指令数为5bytes，因此执行到改行时，PC = 0x400507 + 0x5 = 0x40050c
3. 后续的4组数字/4bytes为跳转函数的地址与当前地址的offset。且由于LSB (Least Significant Byte, 低位字节占据高地址)，此处实际表示的offset = 0xffffffca
4. 因此计算得到函数的地址为PC + offset = 0x40050c + 0xffffffca = 0x4004d6
5. -4：按照$400508+?=4004d6$$400508 + ? = 4004d6$计算的结果需要减去4才是正确结果 这里，400508为400507跳过callq指令的机器码

4. 重定位文件

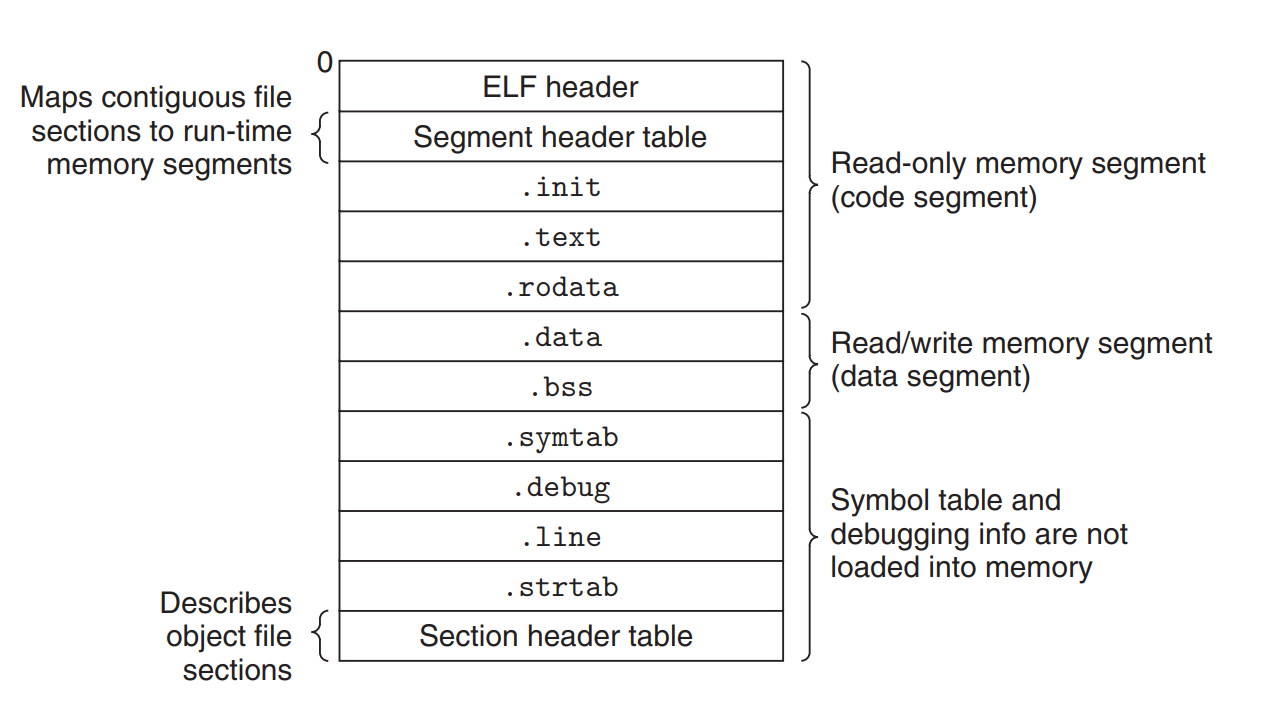

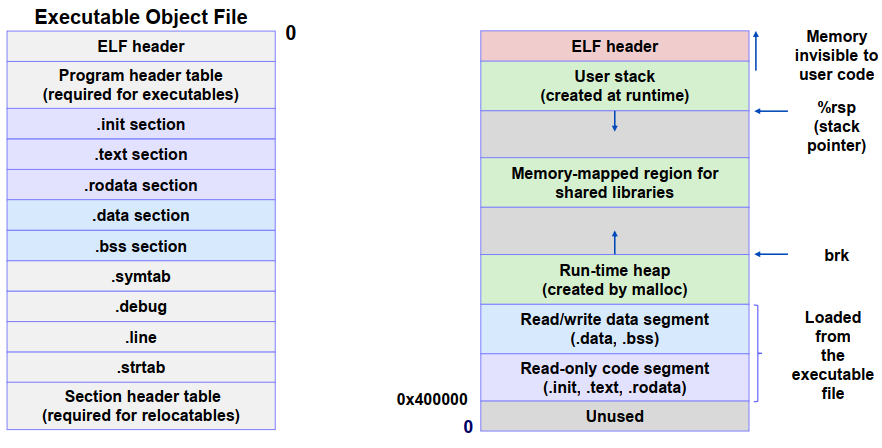

a typical executable file:

• the ELF header includes the program’s entry point, which is the address of the first instruction to execute when the program runs

• Segment header table

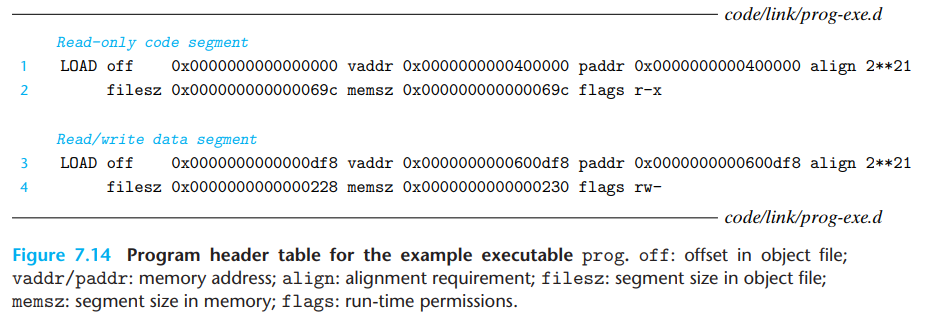

  From the program header table, we see that two memory segments will be initialized with the contents of the executable object file. Lines 1 and 2 tell us that the first segment (the code segment) has read/execute permissions, starts at memory address 0x400000, has a total size in memory of 0x69c bytes, and is initialized with the first 0x69c bytes of the executable object file, which includes the ELF header, the program header table, and the .init, .text, and .rodata sections.

  Lines 3 and 4 tell us that the second segment (the data segment) has read/write permissions, starts at memory address 0x600df8, has a total memory size of 0x230 bytes, and is initialized with the 0x228 bytes in the .data section starting at offset 0xdf8 in the object file. The remaining 8 bytes in the segment correspond to .bss data that will be initialized to zero at run time.

• the .init section defines a small function, called _init, that will be called by the program’s initialization code

• the .text, .rodata and .data sections are similar to those in a relocatable object file, except that these sections have been relocated to their eventual run-time memory addresses

• since the executable is fully linked (relocated), it needs no .rel sections

For any segment, the linker must choose a starting address, vaddr, such that $vaddrmodalign=offmodalign$$vaddr\ mod\ align\ =\ off\ mod\ align$ where off is the offset of the segment’s first section in the object file, and align is the alignment specified in the program header (2²¹ = 0x200000).

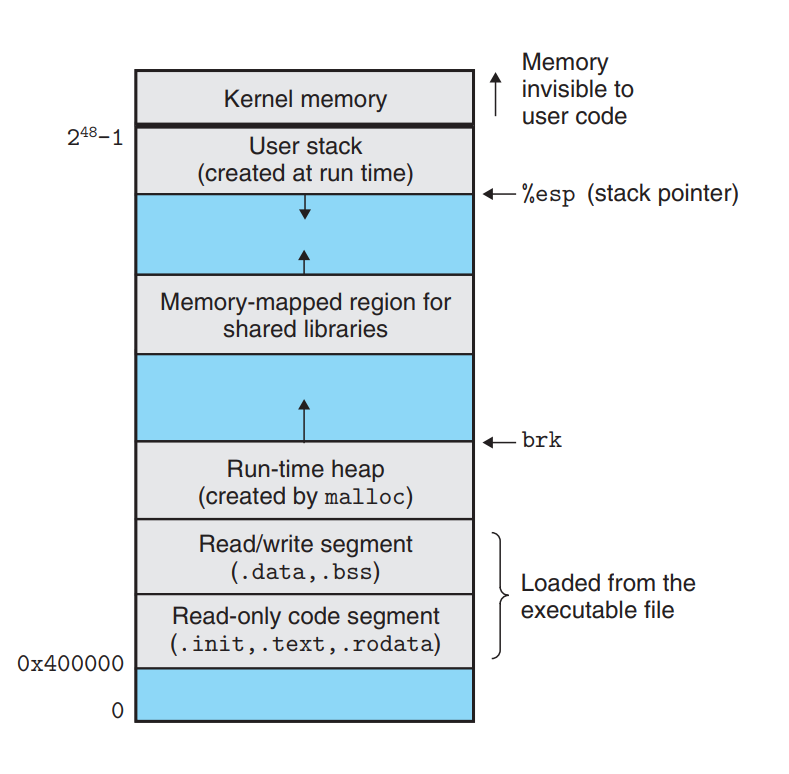

Loading Executable Object Files

Since ./main does not correspond to a built-in shell command, the shell assumes that main is an executable object file, which it runs for us by invoking some memory-resident operating system code known as the loader. Any Linux program can invoke the loader by calling the execve function. The loader copies the code and data in the executable object file from disk into memory and then runs the program by jumping to its first instruction, or entry point. This process of copying the program into memory and then running it is known as loading.

Next, the loader jumps to the program’s entry point, which is always the address of the _start function. This function is defined in the system object file crt1.o and is the same for all C programs. The _start function calls the system startup function, _libc_start main, which is defined in libc.so. It initializes the execution environment, calls the user-level main function, handles its return value, and if necessary returns control to the kernel.

5. 静态库文件 vs 共享库文件

static library vs shared library

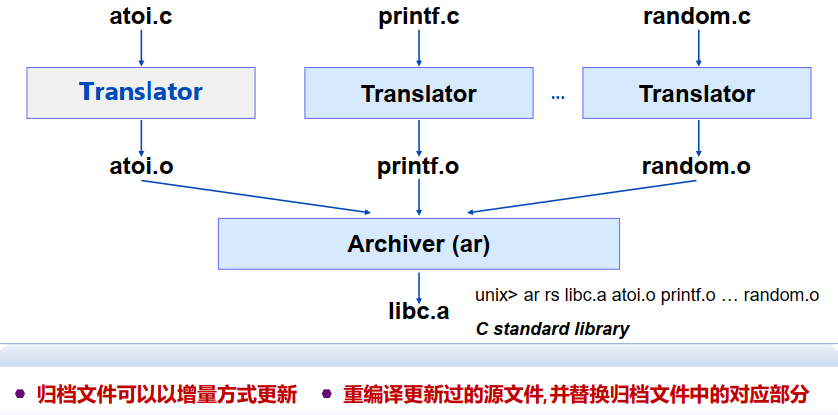

静态库文件（.a文件）

1. 将多个相关的重定位对象文件集成为一个单一的带索引的文件 (称为归档文件, archive file)
2. 增强链接器的功能使之能够在归档文件中解析外部符号
3. 如果归档文件中的某个成员解析了外部符号，就将其链接入执行文件

• libc.a (the C standard library)

  8MB archive of 1392 object files I/O, memory allocation, signal handling, string handling, data and time, random numbers, integer math

• libm.a (the C math library)

  1MB archive of 401 object files floating point math (sin, cos, tan, log, exp, sqrt, ...)

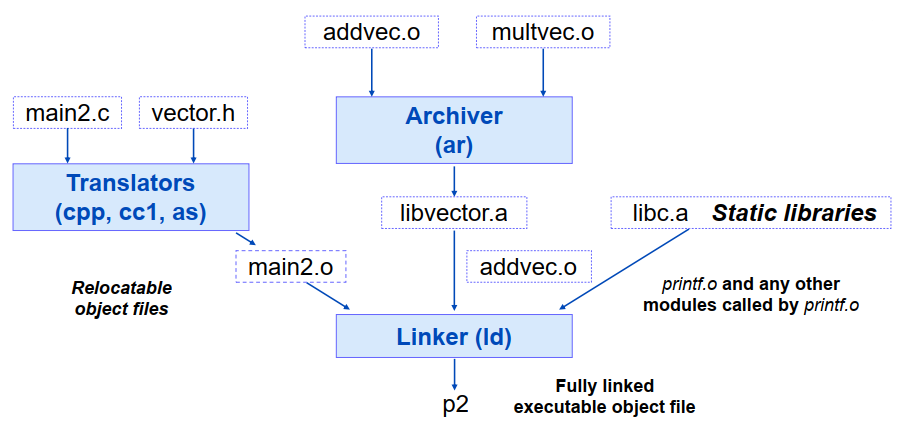

静态库连接

共享库文件

• 静态库文件有其劣势

  执行文件中会重复包含有所需的库文件函数或者数据 运行时内存中也会有重复部分 库文件的细微变动需要所有相关执行文件进行重链接

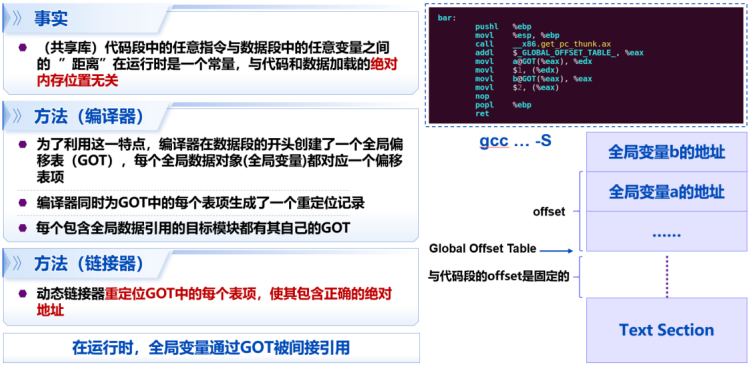

• 更好的方案：共享库文件方式

  特殊类型的重定向对象文件，可以被装载入内存后进行动态链接；链接可以在装载时或者运行时完成 Windows系统下被称为DLL文件

A shared library is an object module that, at either run time or load time, can be loaded at an arbitrary memory address and linked with a program in memory. This process is known as dynamic linking and is performed by a program called a dynamic linker. Shared libraries are also referred to as shared objects, and on Linux systems they are indicated by the .so suffix. Microsoft operating systems make heavy use of shared libraries, which they refer to as DLLs (dynamic link libraries)

• one .so file for a particular library
• a .text section in memory shared by different running processes

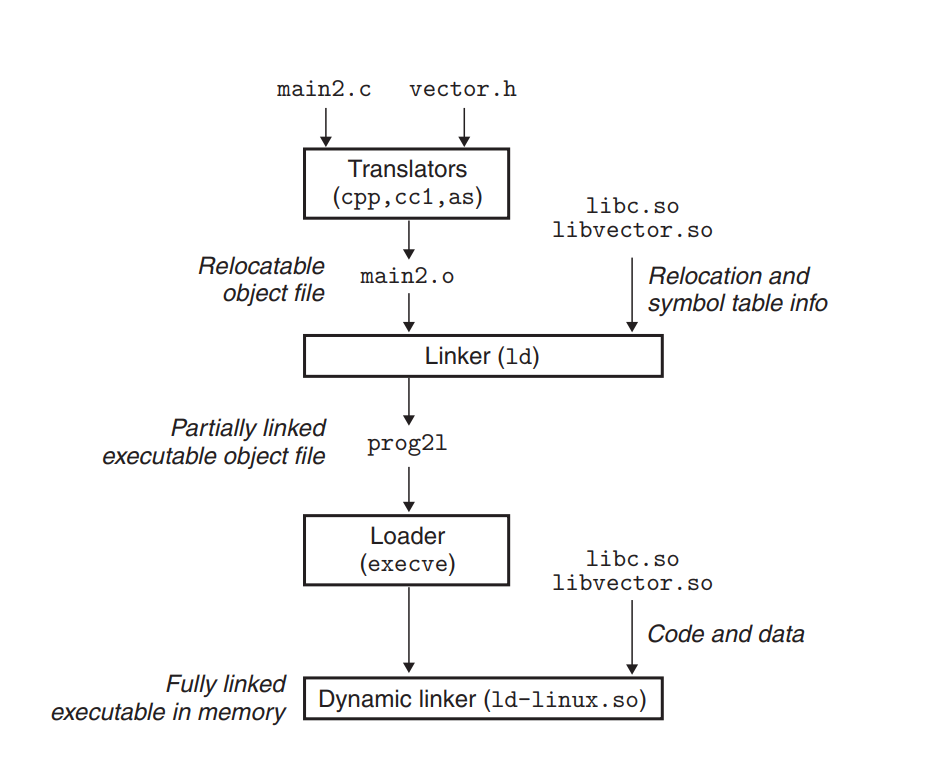

1. build a shared library libvector.so linux> gcc -shared -fpic -o libvector.so addvec.c multvec.c (-shared: direct the loader to create a shared object file; -fpic: directs the compiler to generate position-independent code)

2. link to program linux> gcc main2.c ./libvector.so -o prog2l This creates an executable object file prog2l in a form that can be linked with libvector.so at run time.

   None of the code or data sections from libvector.so are actually copied into the executable prog2l at this point. Instead, the linker copies some relocation and symbol table information that will allow references to code and data in libvector.so to be resolved at load time

   prog2l contains a .interp section, which contains the path name of the dynamic linker, which is itself a shared object (e.g., ld-linux.so on Linux systems). The loader loads and runs the dynamic linker

3. dynamic linker: fully linked executable in memory

   relocate the text and data of libc.so into some memory segment. relocate the text and data of libvector.so into another memory segment. relocate any references in prog2l to symbols defined by libc.so and libvector.so

3 内存

3.1 内存布局 memory layout

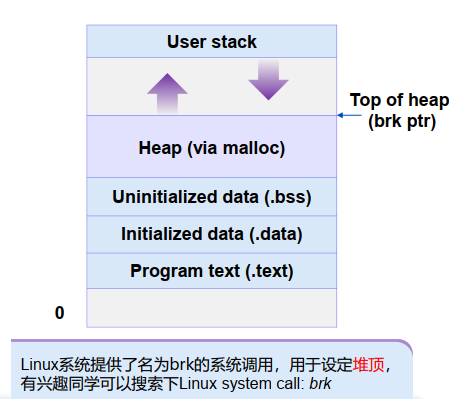

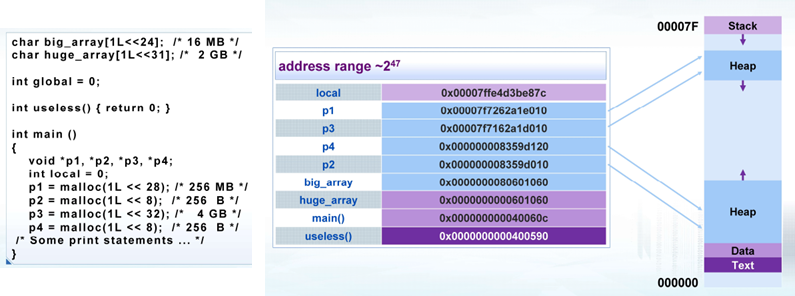

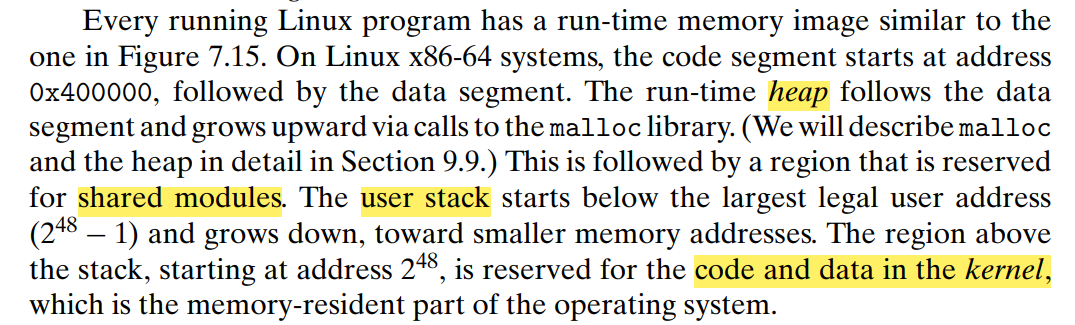

Linux进程的内存布局（X86-64）

• Stack Runtime stack (8MB limit) 栈顶地址：0x 0000 7fff ffff ffff e.g. local variables

• Heap 按需动态分配 when call malloc(), calloc(), new()——libC库提供

  操作系统只能管理Heap的堆顶调度 LibC库提供管理整个Heap的方法

  • 大的内存块在高地址端，小的内存块在低地址端（可能的布局形式）

• Data 静态分配的数据空间 e.g. global vars, static vars, string constants

• Text / Shared Libraries 指令（代码） Read-only

其实，Heap和Data没有一条泾渭分明的分界线

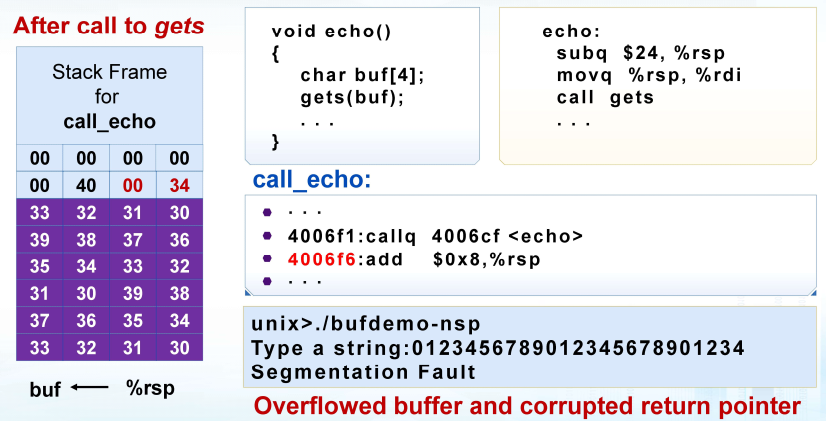

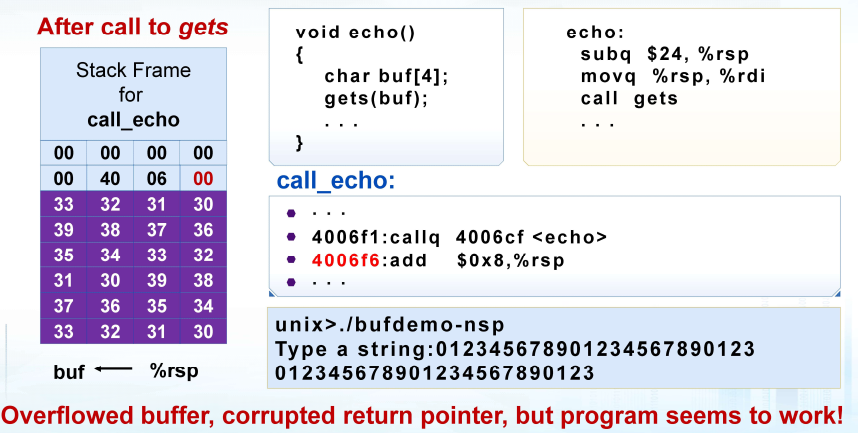

3.2 缓冲区溢出 buffer overflow

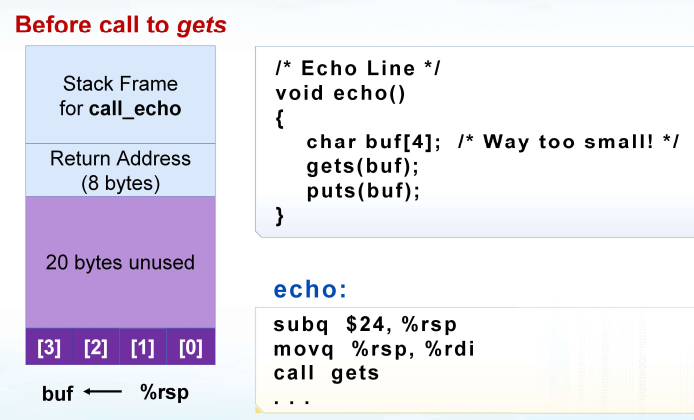

易受攻击的缓冲区相关代码

xxxxxxxxxx
/* Echo Line */
void echo() {
    char buf[4]; /* Way too small! */
    gets(buf);
    puts(buf);
}
void call_echo() {
    echo();
}20221107101421023

1. 代码注入攻击

输入字符串包含可执行代码的字节表示 用缓冲区B的地址覆盖函数返回地址A 当程序执行ret时，将跳转到“注入代码” （绝对地址）

预防手段

1. avoid overflow vulnerabilities 不要用gets(), puts()这种函数

   使用限制字符串长度的库函数 fgets instead of gets strncpy instead of strcpy Don’t use scanf with %s conversion specification use fgets to read the string or use %ns where n is a suitable integer

2. employ system-level protections

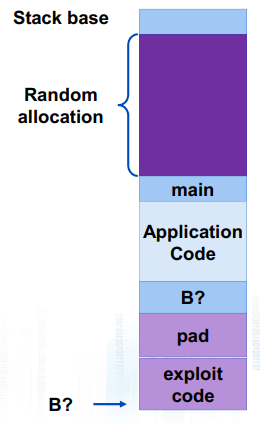

   随机的stack base地址



   （处理器支持的）不可执行段 mark region of memory as either "read-only" or "writeable" X86-64 added explicit "execute" permission stack marked as non-executable ——Any attempt to execute this code (exploit code) will fail!

3. have compiler use "stack canaries"

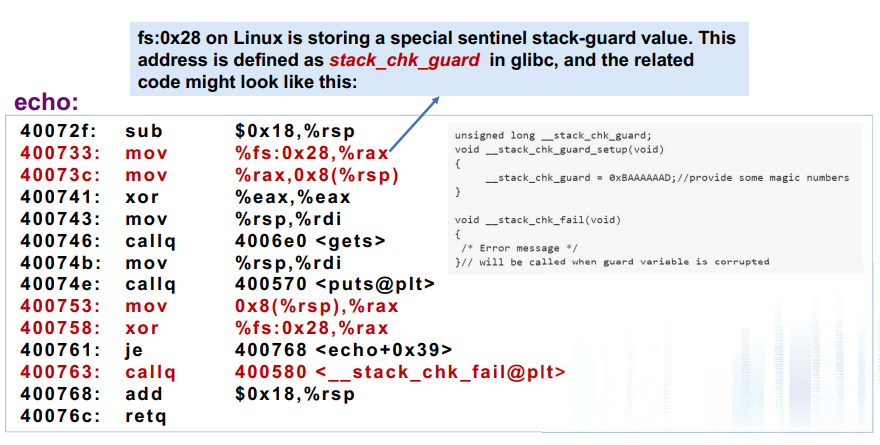

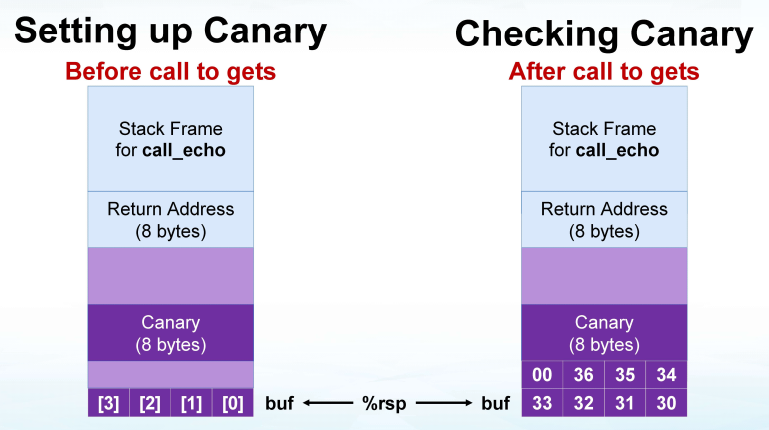

   Stack Canaries (金丝雀) can help

   Idea Place special value (“canary”) on stack just beyond buffer Check for corruption before exiting function

   GCC Implementation -fstack-protector Now the default (disabled earlier)





2. Return-Oriented Programming (ROP) Attacks

Challenges for hackers Stack randomization makes it hard to predict buffer location Marking stack non-executable makes it hard to insert binary code

Alternative Strategy:

• Using existing code (e.g. library code from stdlib) String together fragments to achieve overall desired outcome

  Construct program from gadgets Gadget: Sequence of instructions ending in ret encoding by single byte 0xc3 Code positions fixed from run to run Code is executable

• However, does not overcome stack canaries

3. Supplement: COP / JOP attack

补充：IO操作的响应速度与协程

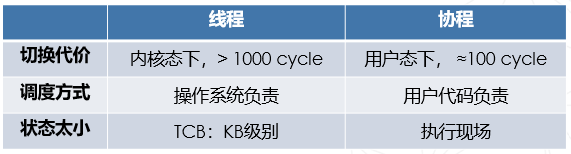

协程：可以主动切出，并在之后可恢复运行的函数运行模式 协程的用途：在CPU进行IO操作时，切换到其它Ready函数的执行现场，并在合适时间点切换回来

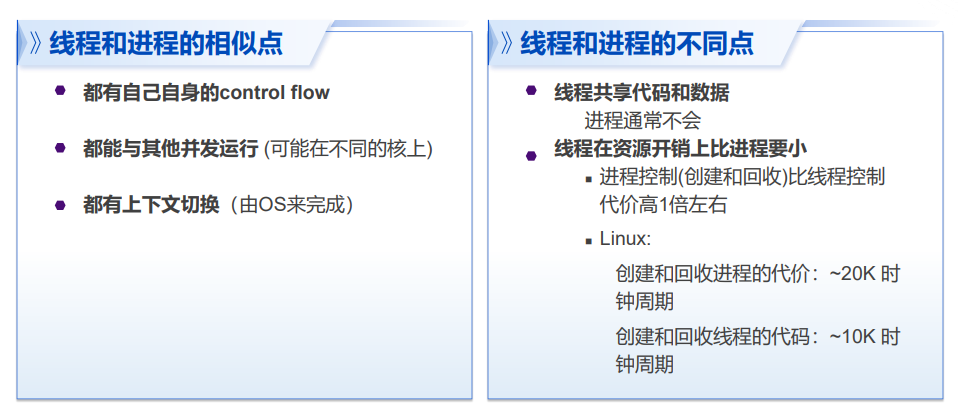

线程/进程/协程 - 知乎

冯诺依曼架构所面临的“存储墙”和“功耗墙”——存算分离

3.3 虚存

笔记

虚存是一个概念（而非实体） ：一个连续的地址空间，进程的数据、代码、运行栈、堆等存于其中

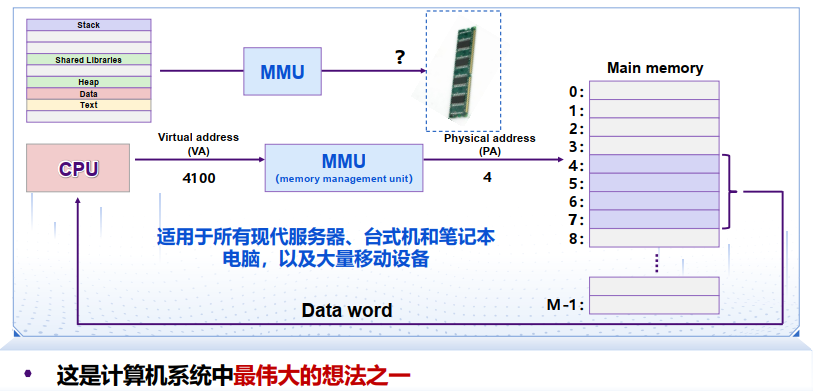

物理地址：Physical Addressing 虚拟地址：Virtual Addressing (VM)

Advantages:

1. uses main memory efficiently use DRAM as a cache for the parts of a virtual address space
2. simplifies memory management each process gets the same uniform linear address space
3. isolates address spaces one process can't interfere with another's memory user program cannot access privileged kernel information

1. VM用于缓存

Virtual memory is an array of N contiguous bytes stored on disk. The contents of the array on disk are cached in physical memory (DRAM cache) These cache blocks are called pages (size is $P=2^p$$P = 2^p$ bytes)

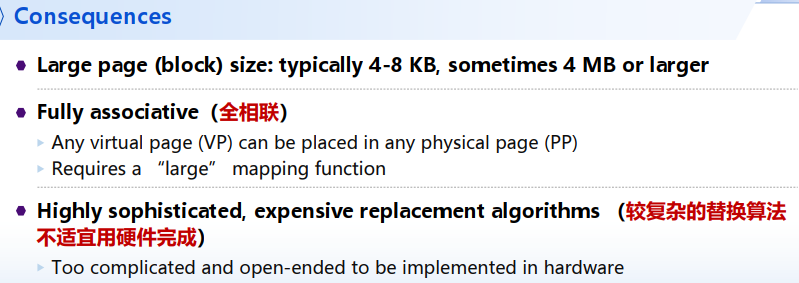

large page (block) size: typically 4-8 KB, sometimes 4 MB or larger

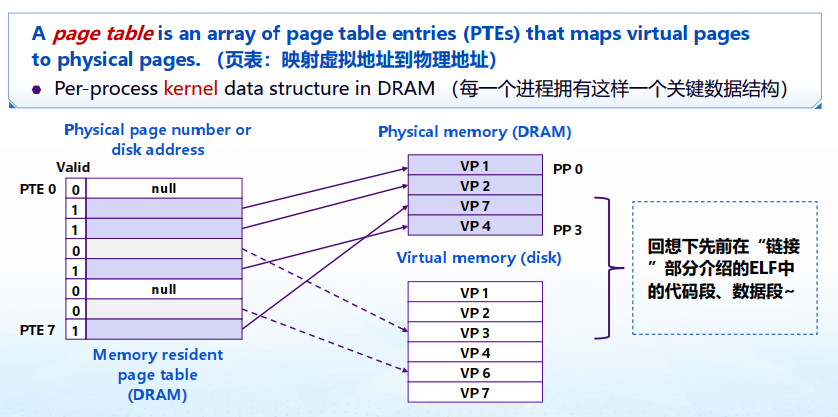

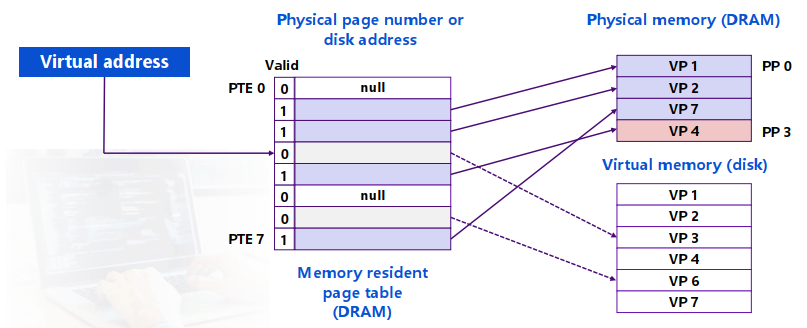

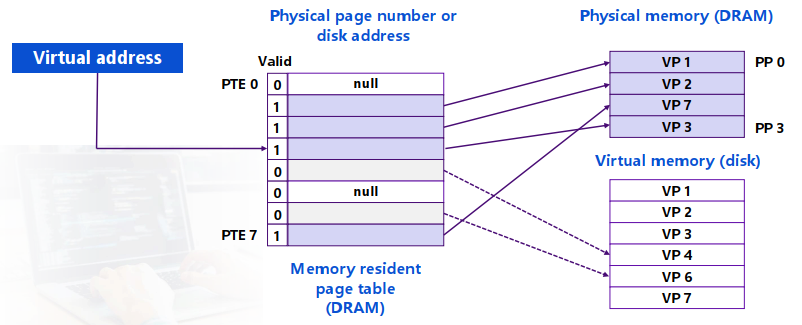

Page Tables / 页表：an array of page table entries (PTEs) that maps virtual pages to physical pages per-process kernel data structure in DRAM

$validbit+nbitaddressfield$$valid\ bit + nbit\ address\ field$ "whether cached" + "DRAM offset"

• Page Hit / 命中：reference to VM word that is in physical memory

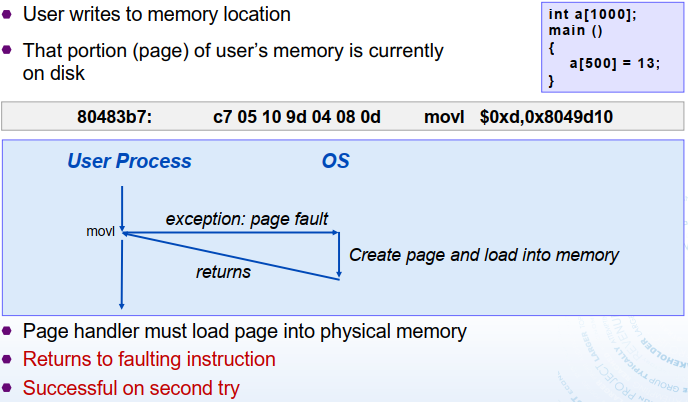

• Page Fault / 页缺失：reference to VM word that is not in physical memory page miss causes page fault (an exception) Page fault handler selects a victim to be evicted.





• Allocating Pages: 一个Physical Page可能对应任意一个Virtual Page（全相联 fully associative）

工作原理：

1. Virtual memory works because of locality（数据/指令的局部性）
2. At any point in time, programs tend to access a set of active virtual pages called the working set （活跃页面的集合称为工作集）
3. If (working set size < main memory size): Good performance for one process after compulsory misses
4. If ( SUM(working set sizes) > main memory size ) : (Thrashing) Performance meltdown where pages are swapped (copied) in and out continuously

2. VM 作为内存管理工具

每个进程都有自己的私有虚拟空间

Mapping function scatters addresses through physical memmory 同一块物理地址可以被不同的virtual address映射——节省空间 / sharing code and data among processes

3. VM 作为内存保护工具

Extend PTEs with permission bits （PTE: page table entry） Page fault handler checks these before remapping If violated, send process SIGSEGV (segmentation fault)

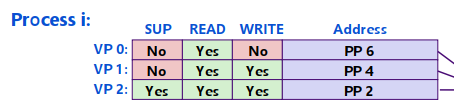

不同的权限分配：

• SUP bit: whether processes must be running in kernel (supervisor) mode to access a page
• READ bit: read access to the page
• WRITE bit: write access to the page

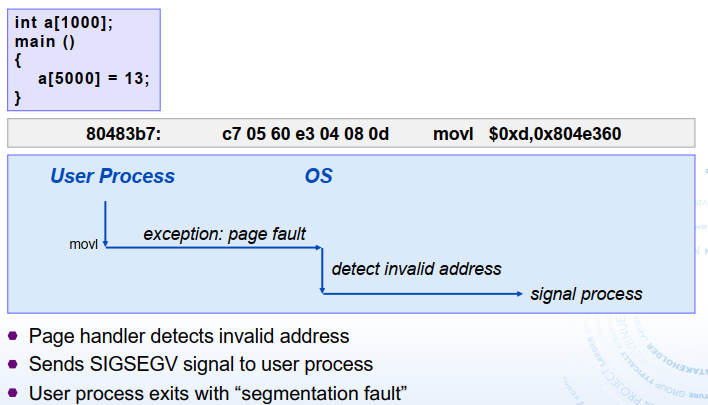

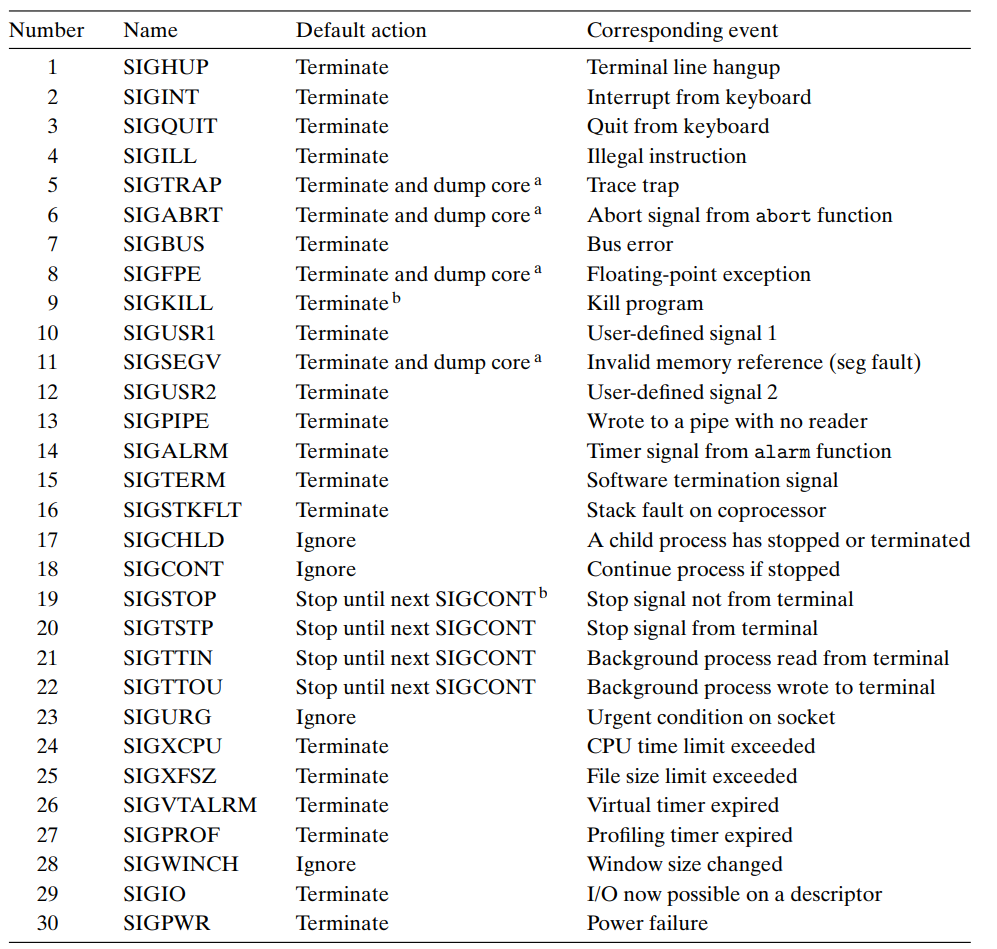

violating consequence: the kernel exception handler sends a SIGSEGV signal to the offending process (Linux reports this as a segmentation fault)

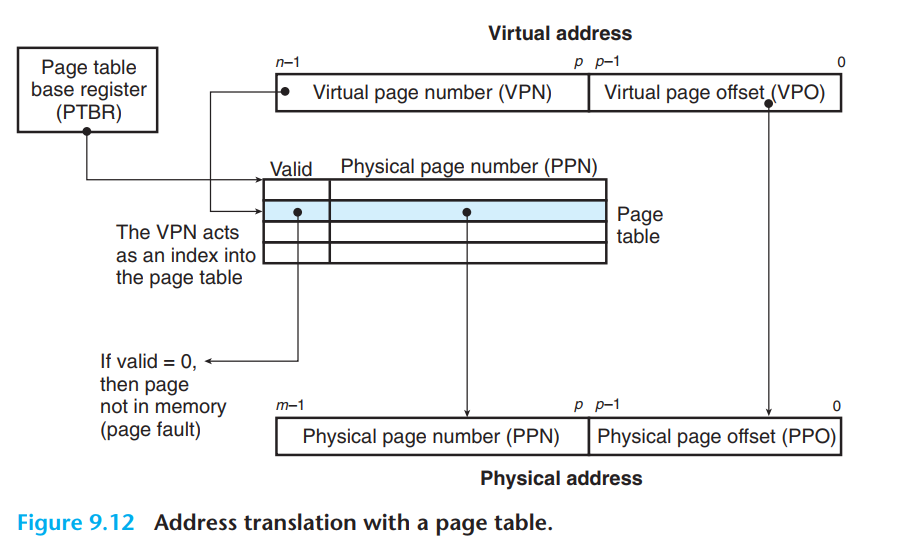

3.4 虚存地址翻译/转换

Notation

$PTE$$PTE$: Page table entry (value, *PTEA), 存在内存里 $PTEA$$PTEA$: Page table entry address (key, 地址的概念), 内存地址 $PTBR$$PTBR$: Page table base register $TLB(\text{快}\text{表})$$TLB(快表)$: Translation lookaside buffer

1. Basic Parameters

   $N=2^n$$N = 2^n$: Number of addresses in $VAS$$VAS$ (virtual address space), Must be a power of 2 $M=2^m$$M = 2^m$: Number of addresses in $PAS$$PAS$ (physical address space), Need not be a power of 2 $P=2^p$$P = 2^p$: Page size (bytes) $T=2^t$$T = 2^t$: the sets that TLB has

2. Components of $VA$$VA$

   $VPO$$VPO$: Virtual page offset (bytes) $VPN$$VPN$: Virtual page number $TLBL$$TLBL$: TLB index $TLBT$$TLBT$: TLB tag

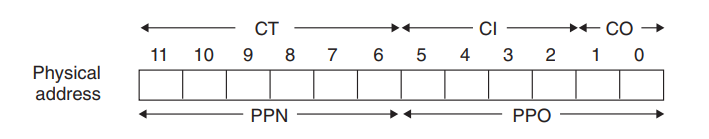

3. Components of $PA$$PA$

   $PPO$$PPO$: Physical page offset (same as VPO) $PPN$$PPN$: Physical page number $CO$$CO$: Byte offset within cache block $CI$$CI$: Cache index $CT$$CT$: Cache tag

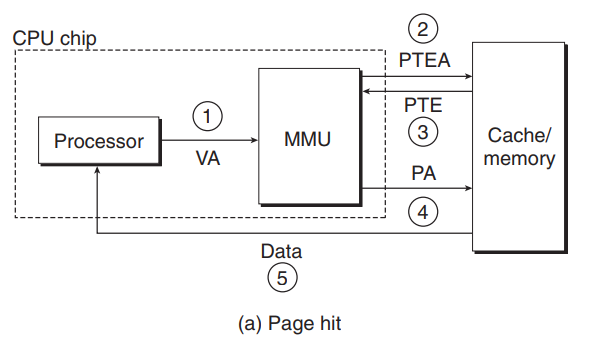

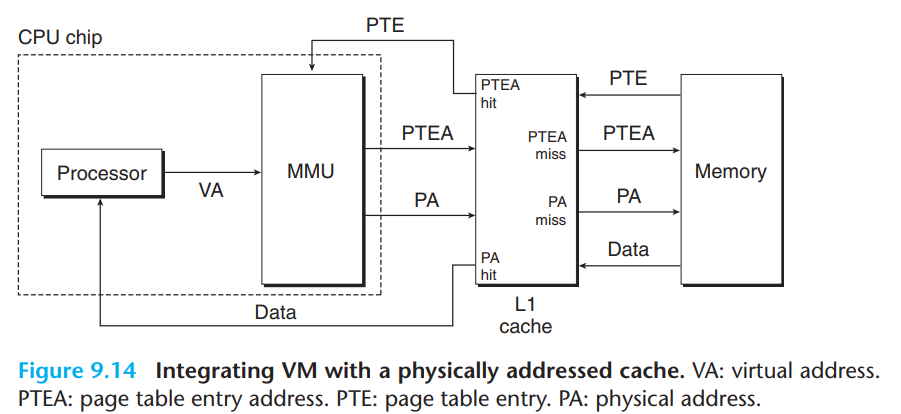

1. Page Hit

page hit is handled entirely by hardware

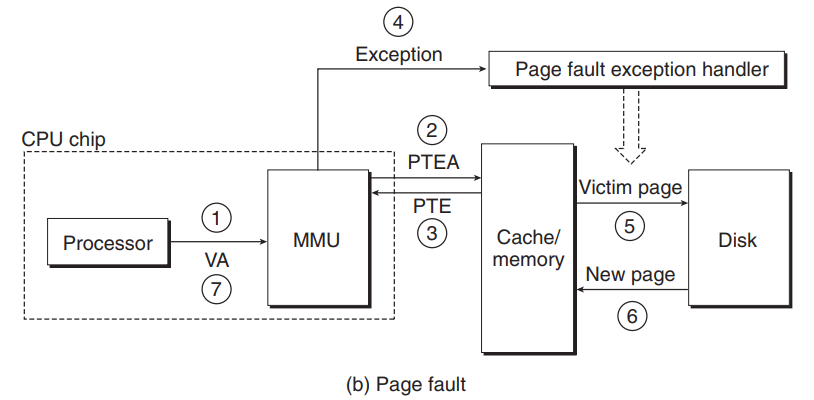

2. Page Fault

page fault requires cooperation between hardware and the operating system kernel

• MMU triggers an exception which transfers control in the CPU to a page fault exception handler in the operating system kernel
• the fault handler identifies a victim page in physical memory and pages it out to disk
• and pages in the new page and updates the PTE in memory
• returns to the orginial process and results in page hit

3. TLB (Translation Lookaside Buffer)

Small hardware cache in MMU Contains complete page table entries for small number of pages Maps virtual page numbers to physical page numbers

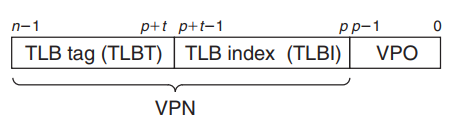

• Components of a VPN that are used to access the TLB



• TLB hit and TLB miss

  TLB is 4-set（唯一的） and 4-way（任意的） set associative with 16 total entries.



[EG]：

4. Multilevel page table

5. Cache

3.5 内存映射 memory mapping

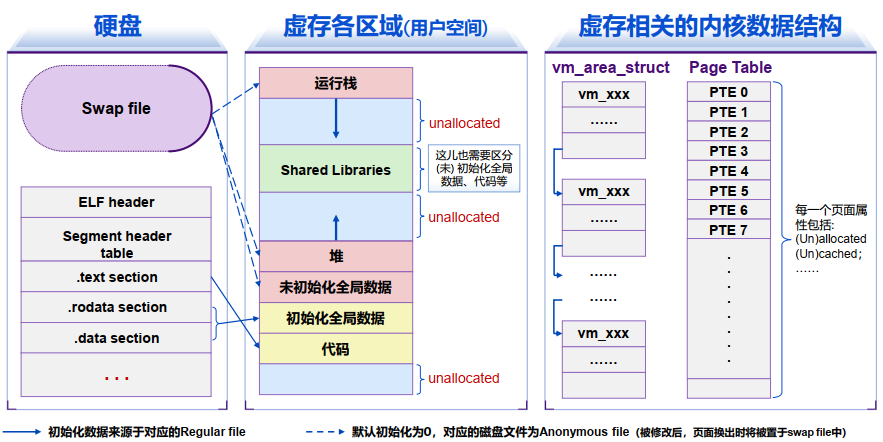

Linux Virtual Memory System

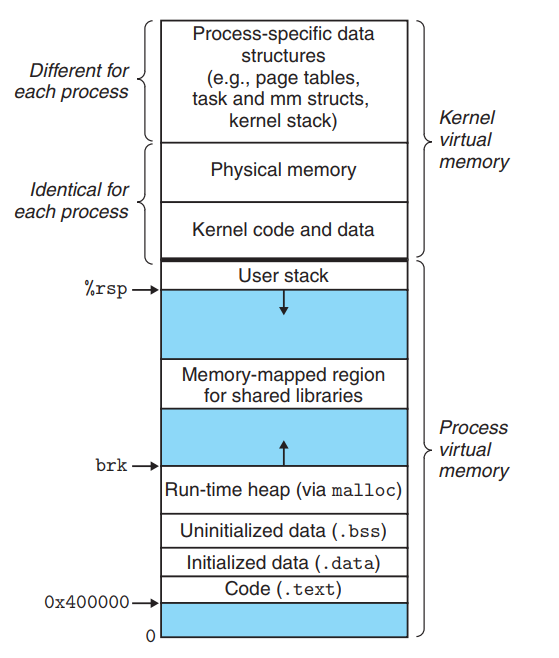

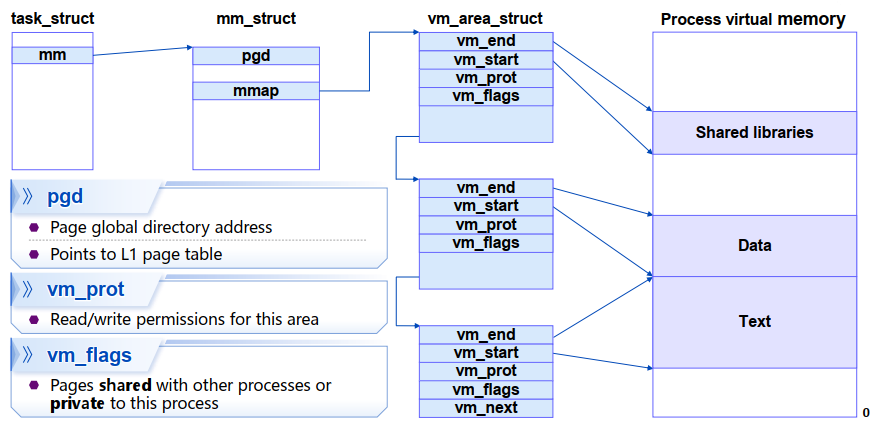

1. The virtual memory of a Linux process



2. Linux Page Fault Handling



Memory Mapping

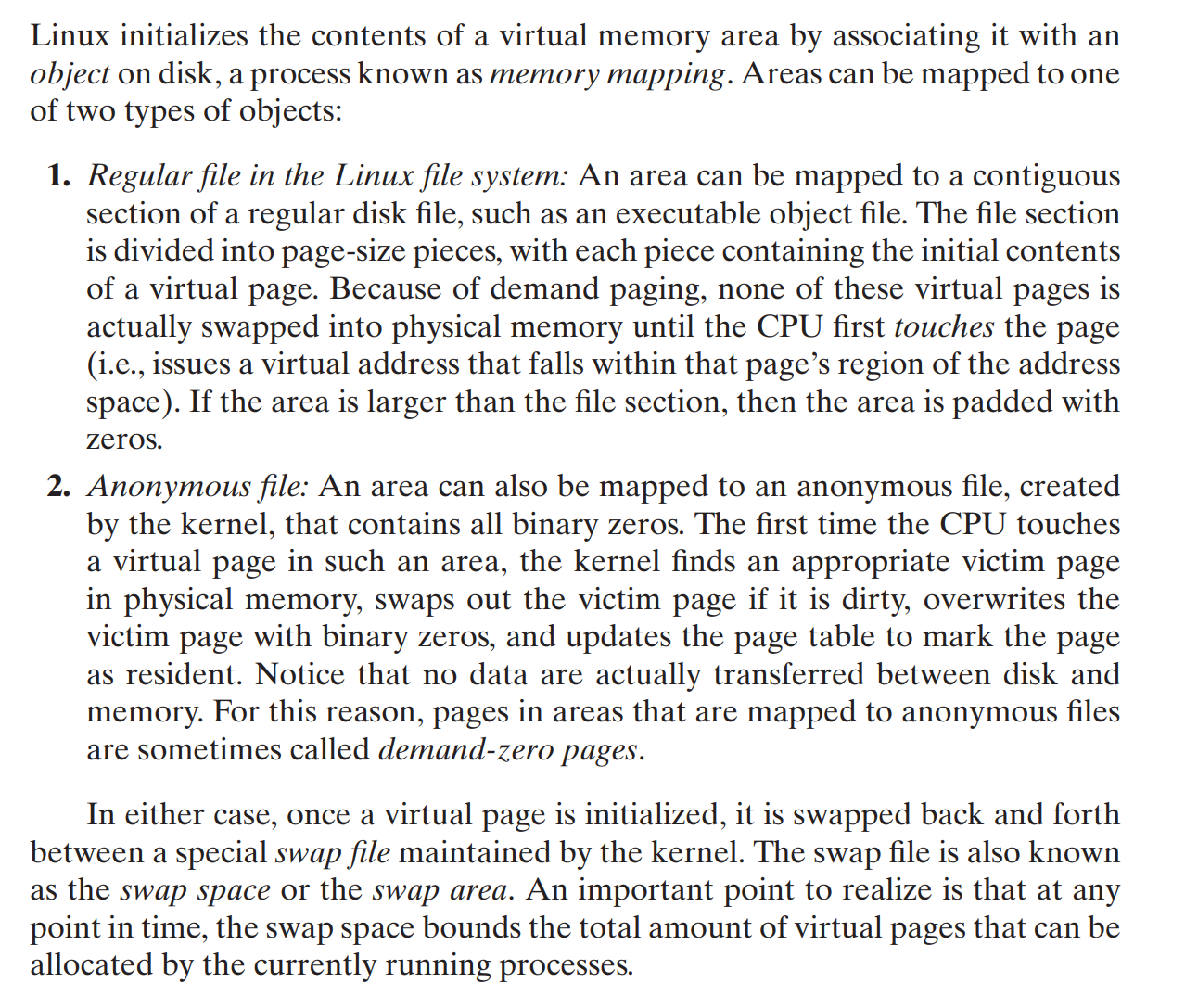

Area can be backed by...

• Regular File on disk: initial page bytes come from a section of a file
• Anonymous File (nothing): first fault will allocate a physical page full of 0's (demand-zero page), once the page is written to (dirtied), it is like any other page Dirty pages are copied back and forth between memory and a special swap file

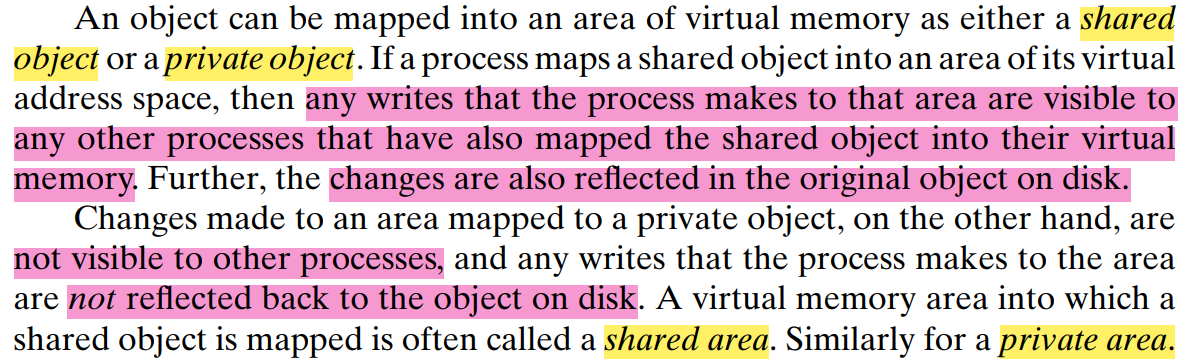

Shared Objects

• Shared Object: two virtual memory Processes can share the same Physical memory object

  Process 1 maps the shared object. Process 2 maps the same shared object. (Note that the physical pages are not necessarily contiguous.)

  Since each object has a unique filename, the kernel can quickly determine that process 1 has already mapped this object and can point the page table entries in process 2 to the appropriate physical pages. The key point is that only a single copy of the shared object needs to be stored in physical memory, even though the object is mapped into multiple shared areas. For convenience, we have shown the physical pages as being contiguous, but of course this is not true in general.

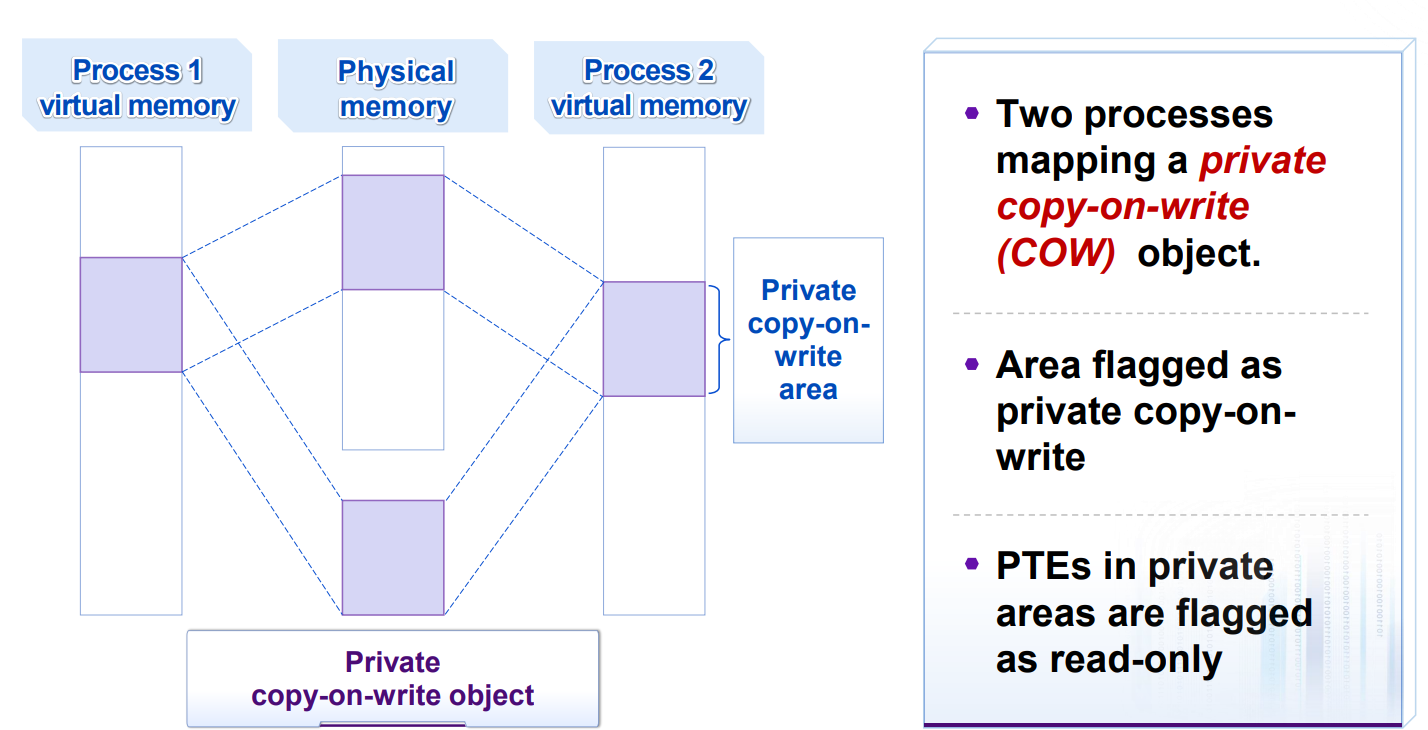

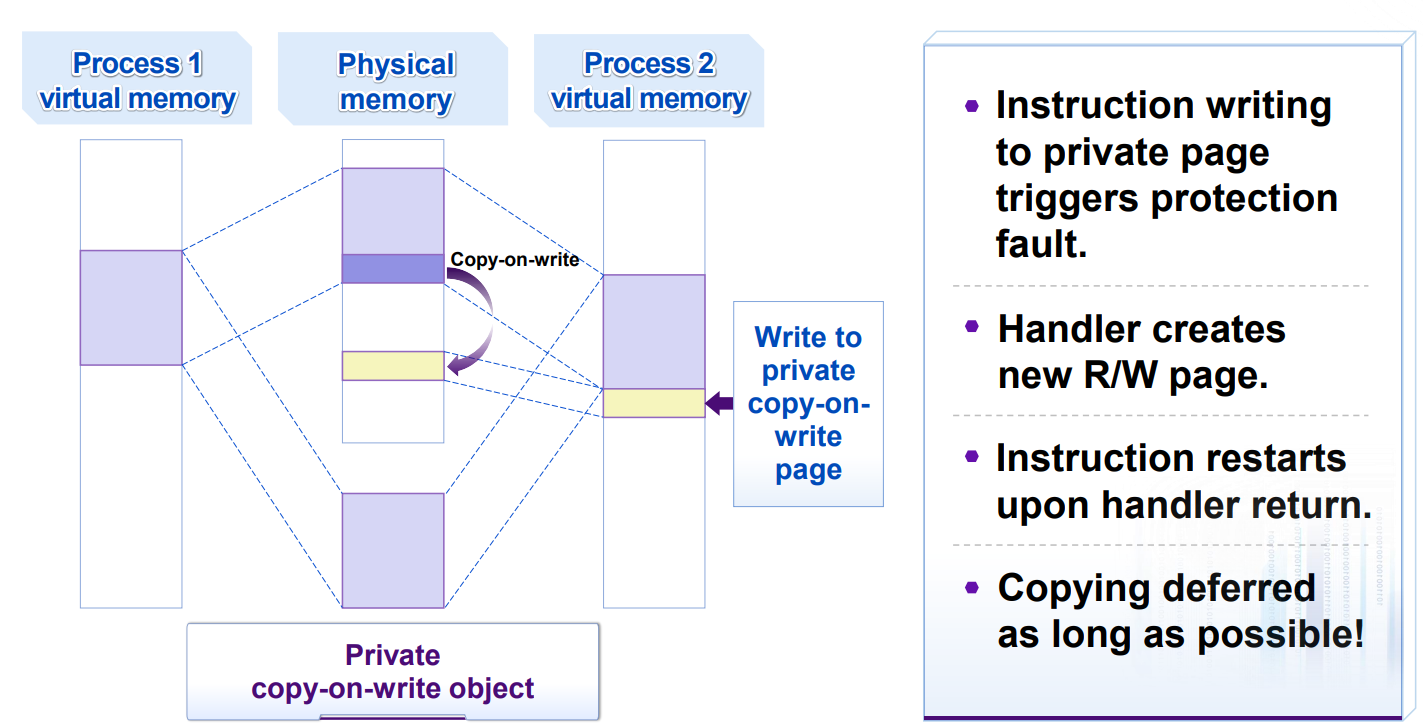

• Private Copy-on-Write (COW) Objects:

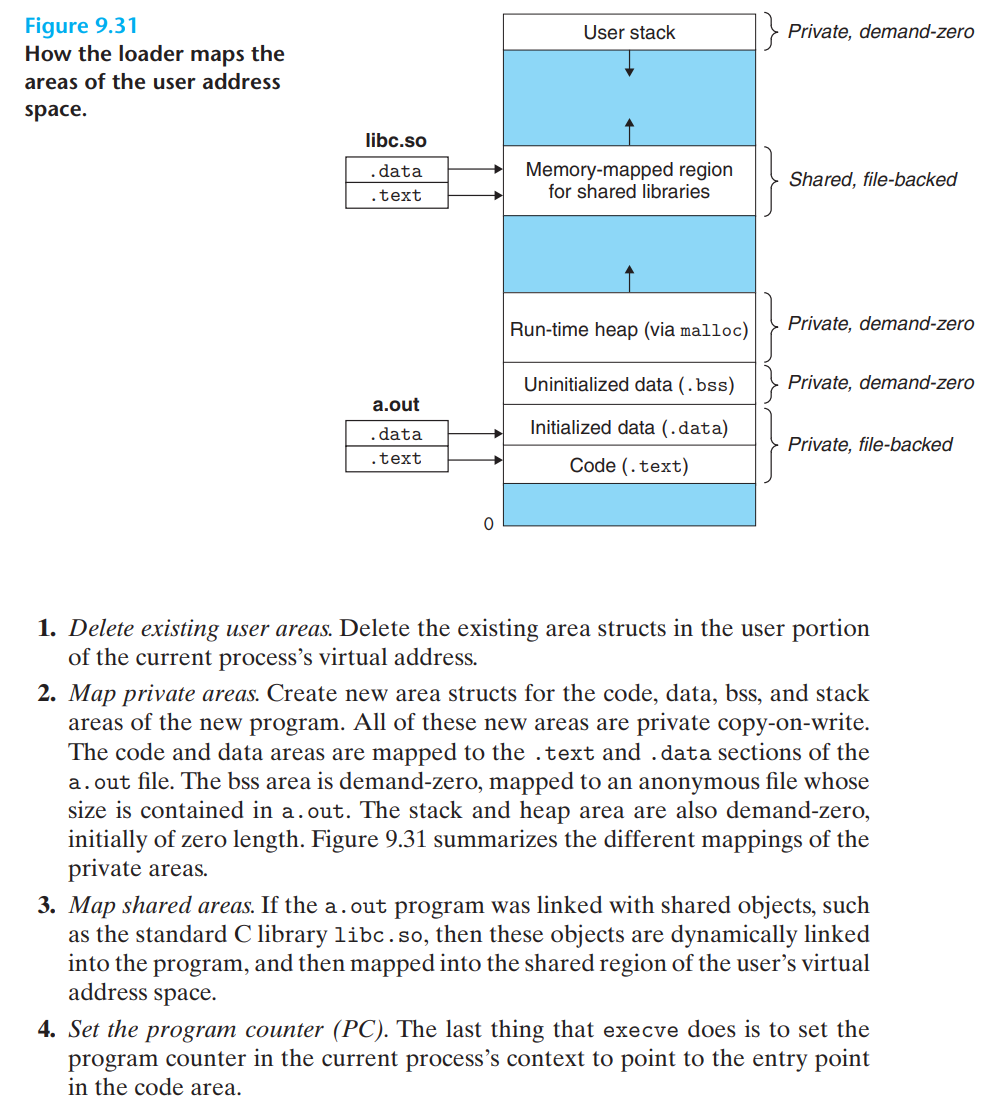

execve

3.6 内存分配

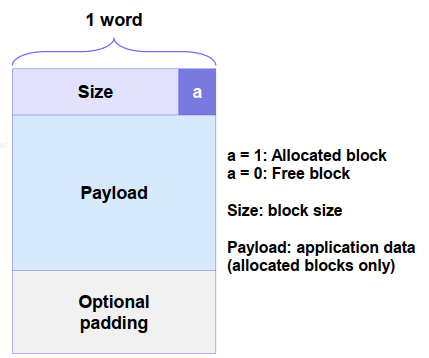

用户层的动态内存分配

• 动态内存分配 dynamic memory allocators (such as malloc)，用来获取VM空间
• Dynamic memory allocators manage an area of process VM known as the heap (堆)

• Allocator maintains heap as collection of variable sized blocks, which are either allocated or free

  Types of allocators:

  • Explicit allocator: malloc and free in C（库通过brk等系统调用开辟heap空间，在其中初始化了相应地数据机构来实现动态内存分配）

    xxxxxxxxxx
    int *p = (int*) malloc(n * sizeof(int)); // allocate a block
    if (p == nullptr) {
        perror("malloc");
        exit(0);
    }
    for (int i = 0; i < n; ++i) p[i] = i;
    free(p); // return p to the heap


  • Implicit allocator: garbage collection in Java, ML, and Lisp

• 内存分配器——一些要求

  任意大小的block，高速，无冲突，对齐要求（8 bytes alignment for GNU malloc），返回的是指针（一旦分配不能移动）

Performance Goal

• 吞吐率 / Throughput：单位时间内完成的请求数

• 峰值内存利用率 / Peak memory utilization

  Aggregate payload $P_k$$P_k$ is the sum of currently allocated payloads Current heap size $H_k$$H_k$, assumed monotonically nondecreasing Peak memory utilization (after $k$$k$ requests) $U_k=ma{x}_{i<k}{P}_i/H_k$$U_k = max_{i<k}P_i / H_k$

碎片化问题

Poor memory utilization caused by fragmentation

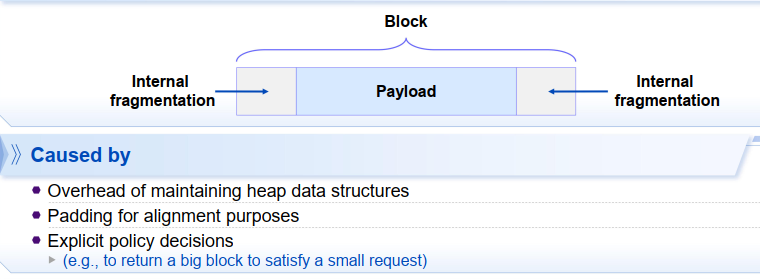

1. 内部碎片化 internal fragmentation

payload is smaller than block size

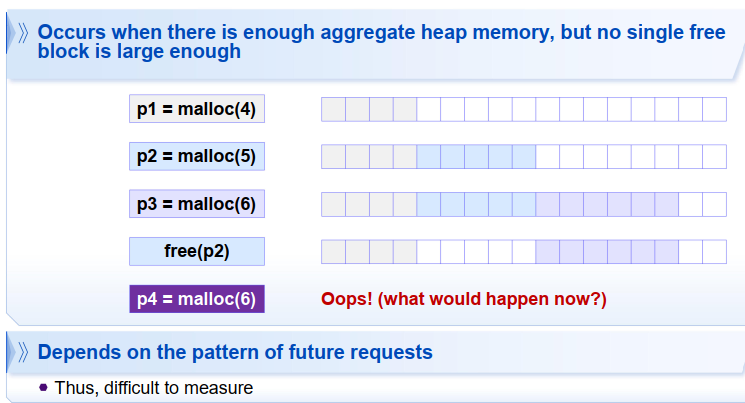

2. 外部碎片化 external fragmentation

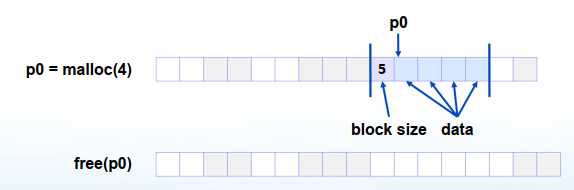

3. header field / header

Thus we know how many memory to free given just a pointer.

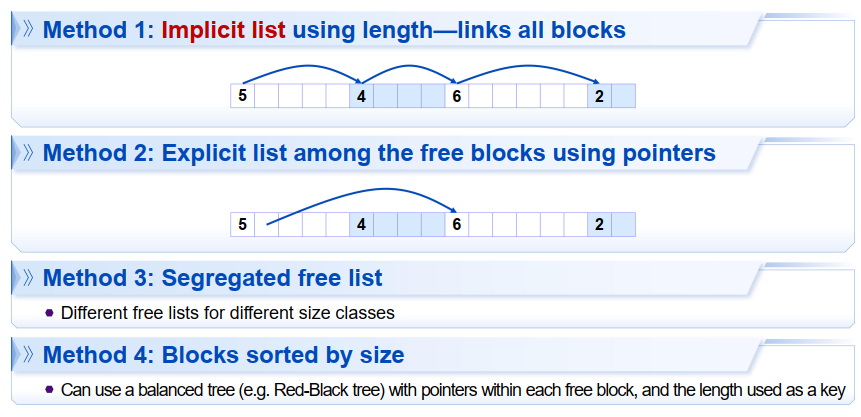

• Implicit list 链接所有的blocks
• Explicit list 连接free blocks using 指针

4. Implicit List 实现

1) Finding a Free Block

First Fit

xxxxxxxxxx
p = start;
while ((p < end)  // not passed end
    && (*p & 1)  // already allocated
    || (*p <= len)) // too small
 p = p + (*p & -2) // goto next block (word addressed)

Next Fit: search list starting where previous search finished Best Fit: choose the best free block (fits, with fewest bytes left over)

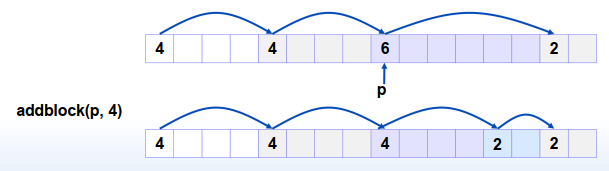

2) Splitting

xxxxxxxxxx
void addblock(ptr p, int len) {
    int newsize = ((len + 1) >> 1) << 1; // round up to even
    int oldsize = *p & -2; // mask out low bit
    *p = newsize | 1; // set new length
    if (newsize < oldsize)
        *(p + newsize) = oldsize - newsize; // set length in remaining part of block
}

3) Freeing a Block

xxxxxxxxxx
void free_block(ptr p) {
    *p = *p & -2; // need only clear the "allocated" flag
}

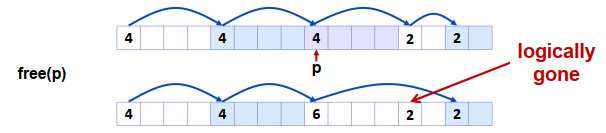

Join with next/previous blocks:

xxxxxxxxxx
void free_block(ptr p) {
    *p = *p & -2; // clear allocated flag
    next = p + *p;
    if ((*next & 1) == 0) // if next block isn't allocated
        *p = *p + *next; // add to this block
}

Bidirectional Coalescing / 双向

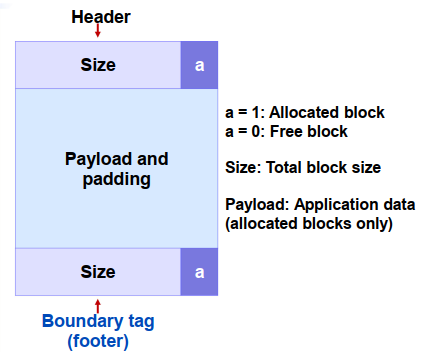

Boundary Tags [Knuth73]

然而Boundary Tages会产生内部碎片。

4) Other Policies

• Immediate coalescing / Deferred coalescing

4 异常控制流 ECF

Code Example

异常：各个任务切换的重要机制

Changing Control Flow:

• program state: jumps and branches, call and return
• system state: exceptional control flow low level mechanisms: hardware & OS software higher level mechanisms: OS software (process context switch, signals, nonlocal jumps...)

Exceptions

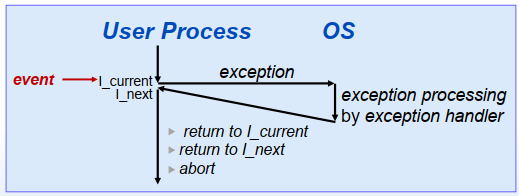

1. Exceptions: transfer of control to the OS in response to some event （从用户态到核心态 user => kernel）

   Examples: div by 0, arithmetic overflow, page fault, I/O request completes, Ctrl-C...

   processor pushses additional processor state onto the stack necessary to restart the interrupted program when the handler returns

   Control transferred from user program to the kernel: items pushed on the kernel's stack rather than onto the user's stack

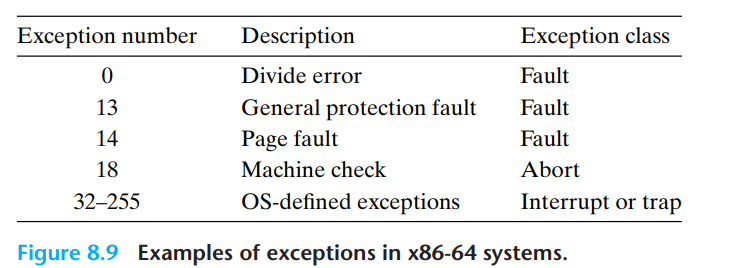

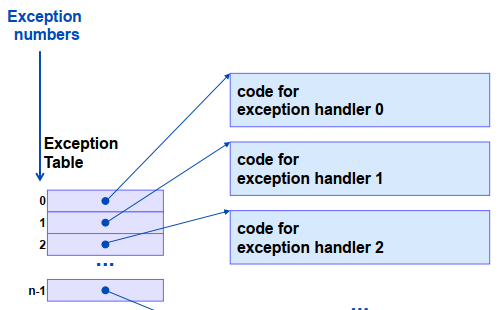

2. Interupt Vectors（中断向量/异常处理向量）

   each type of event has unique exception number $k$$k$ handler $k$$k$ is called each time exception $k$$k$ occurs

   exception table: used to form the address of the appropriate exception handler exception table base register: contains the starting address of the exception table

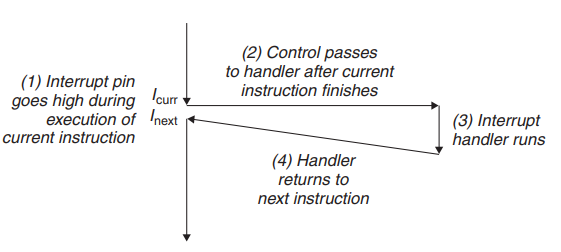

3. Asynchronous Exceptions（异步异常/中断/Interrputs）

   Caused by events external to the processor（外设触发） indicated by setting the processor's interrupt pin handler returns to "next" instruction



   Examples:

   • I/O interrputs hitting Ctrl-C at the keyboard arrival of a packet from a network arrival of data from a disk
   • Hard reset interrupt hitting the reset button
   • Soft rest interrupt hitting Ctrl-Alt-Delete on a PC

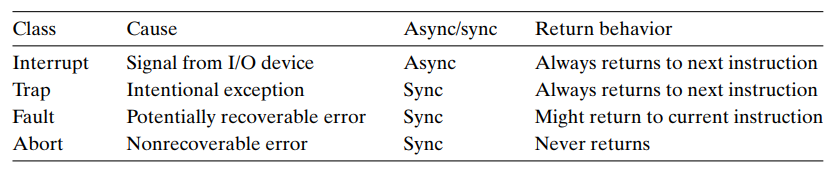

4. Synchronous Exceptions（同步异常）

   Caused by events that occur as a result of executing an instruction（由指令执行引起）. This instruction is referred as the faulting instruction

   • Traps Intentional（程序故意引起的）: system calls, breakpoint traps, special instructions Returns control to "next" instruction

     reading a file (read) creating a new process (fork) loading a new program (execve) terminating the current process (exit)



   • Faults Unintentional but possibly recoverable（程序无意引起的）: page faults (recoverable), protection faults (unrecoverable), floating point excetions Either re-executes faulting ("current") instruction or aborts





   • Aborts Unintentional and unrecoverable: parity error, machine check Aborts current program

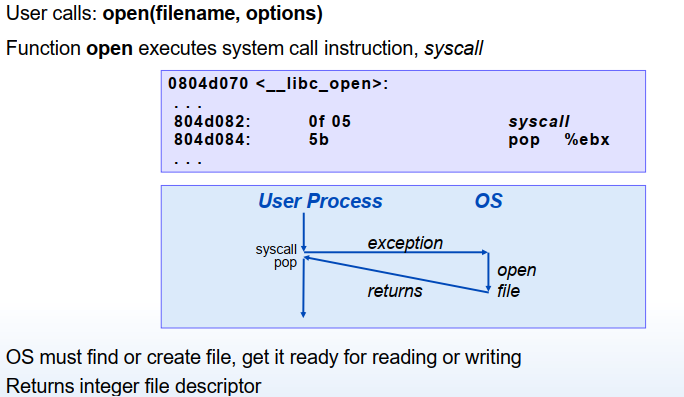

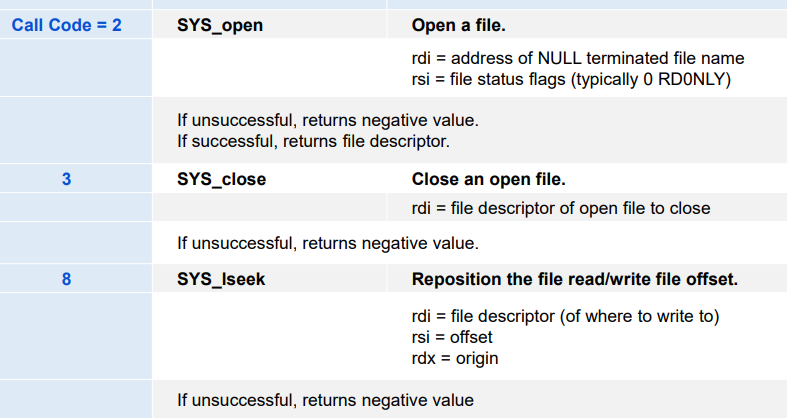

syscall

System calls are provided on x86-64 systems via a trapping instruction called syscall. It is quite interesting to study how programs can use this instruction to invoke Linux system calls directly. All arguments to Linux system calls are passed through general-purpose registers rather than the stack. By convention, register %rax contains the syscall number, with up to six arguments in %rdi, %rsi, %rdx, %r10, %r8, and %r9. The first argument is in %rdi, the second in %rsi, and so on. On return from the system call, registers %rcx and %r11 are destroyed, and %rax contains the return value. A negative return value between −4,095 and −1 indicates an error corresponding to negative errno.

4.1 Processes（进程）

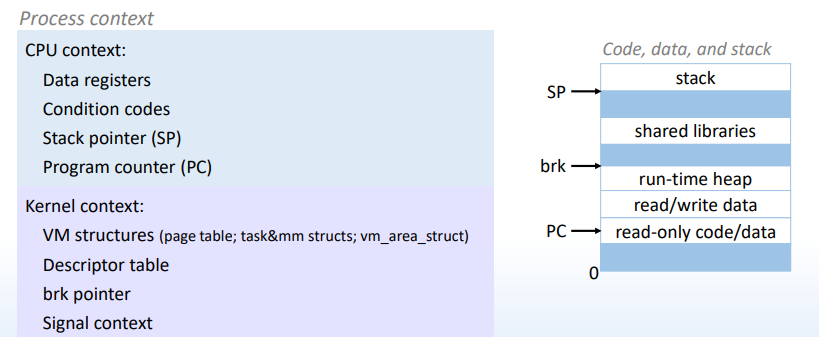

1. 基本概念

A process is an instance of a running program（程序的一个运行实例）

Process provides each program with two key abstractions:

• Logical control flow: each program seems to have exclusive use of the CPU
• Private virtual address space: each program seems to have exclusive use of main memory

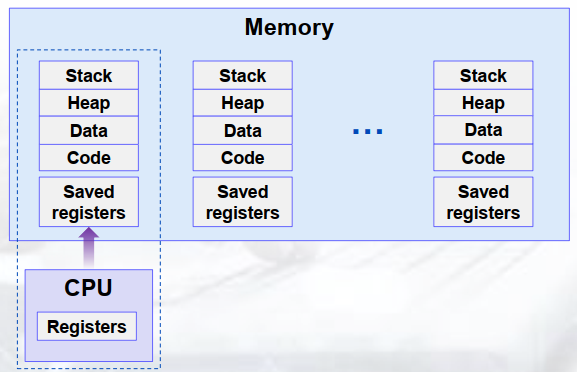

maintained by... 多进程交错运行、快速切换 and 由虚拟内存系统管理地址空间

1. Save current registers in memory

2. Schedule next process for execution

3. Load saved registers and switch address space (context switch)

   (with one CPU core)

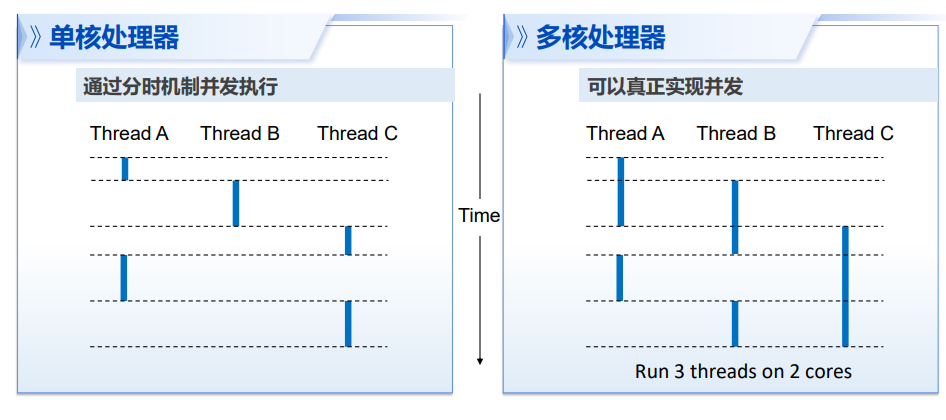

2. 并发进程 Concurrent Processes

Two processes run concurrently if they flows overlap in time ——Otherwise, they are sequential

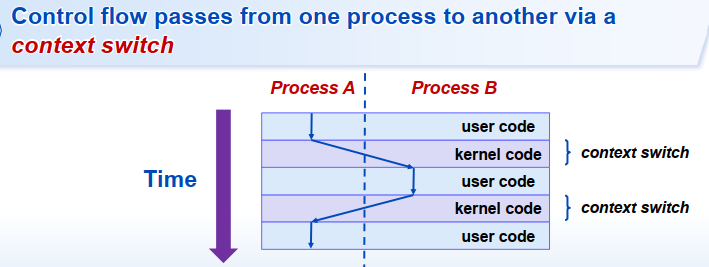

3. 进程切换 Context Switching

Processes are managed by a shared chunk of OS code called the kernel [Important]: The kernel is NOT a separate process, but rather runs as part of some user process

4. fork: 创建新进程

creates a new process (child process) that is identical to the calling process (parent process) return 0 to the child process return child's pid to the parent process

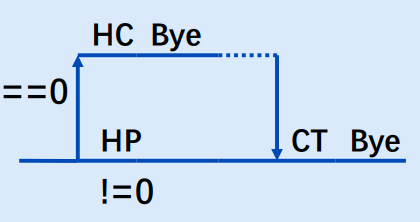

fork is called once but returns twice

1. create VM for new process create exact copies of current mm_struct, vm_area_struct and page tables flag each page in both processes as read-only flag each vm_area_struct in both processes as private COW

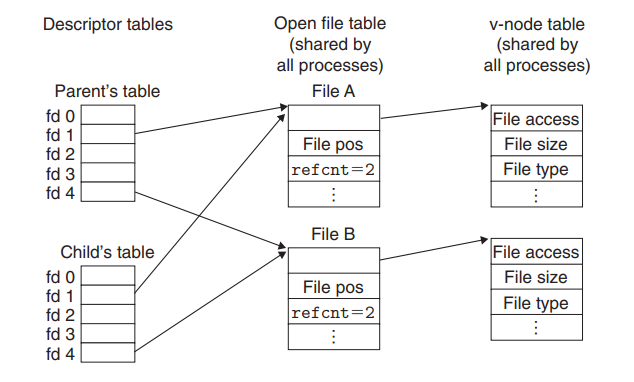

2. fork的机制

3. exit：终止当前进程 atexit(): registers functions to be executed upon exit

   xxxxxxxxxx
   void cleanup(void) {
       printf("cleaning up\n");
   }
   void fork() {
       atexit(cleanup);
       fork();
       exit(0);
   }


5. Zombies：僵尸进程

子进程比父进程先结束，进程终止后仍然会消耗系统资源：various tables maintained by OS

Reaping / 回收：父进程对终止的子进程进行回收（父进程获取子进程的退出状态信息），内核释放子进程的剩余资源

如果父进程没有回收子进程，那么子进程会被init process回收

• 挂起 / wait：synchronizing with children

  xxxxxxxxxx
  #include <sys/wait.h>
  int wait(int* child_status)


  挂起当前进程直到它的一个子进程终止（如果没有子进程，直接返回-1） 返回值是终止的子进程的pid if child_status != NULL, then the object it points to will be set to a status indicating why the child process terminated（获得子进程终止的原因，正常终止的话是子进程的退出状态值）——void exit(int status)



  xxxxxxxxxx
  pid_t wait(int& status); // random pid
  // == waitpid(-1, status, 0)
  pid_t waitpid(pid_t pid, int& status, int options) // specific pid
      // pid == -1 means the wait set consists all of the parent's child processes, pid > 0 then wait set is the singleton child process whose process ID is equal to pid
      // return PID of child if OK, 0 if WNOHANG, -1 on error (signal / has no children)


  宏：WIFEXITED, WEXITSTATUS：

  xxxxxxxxxx
  pid_t wpid = wait(&child_status);
  if (WIFEXITED(child_status))
      printf("Child %d terminated with exit status %d\n", wpid, WEXITSTATUS(child_status));
  else printf("Child %d terminate abnormally\n", wpid);


$status=256\times exit\mathrm{\_}value\mathrm{\_}of\mathrm{\_}the\mathrm{\_}child$$status = 256 \cross exit\_value\_of\_the\_child$

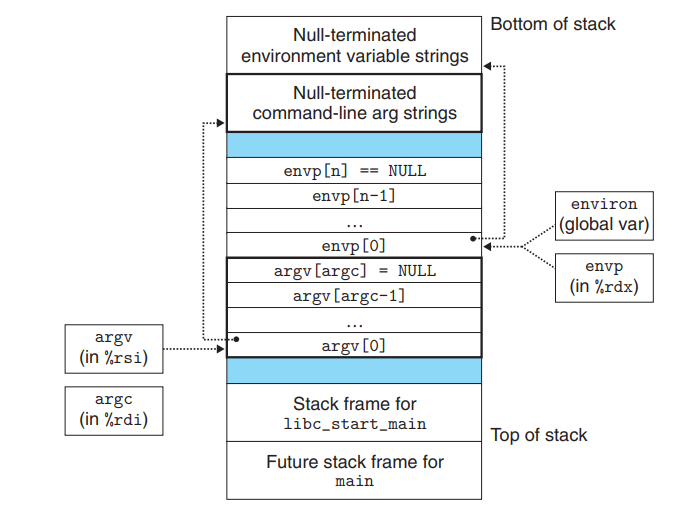

6. execve

loading and running programs in the context of the current process

xxxxxxxxxx
#include <unsitd.h>

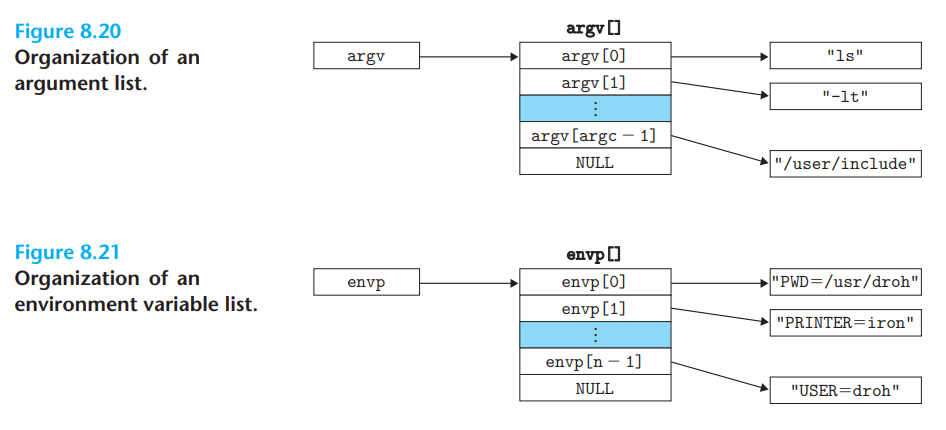

int execve(const char* filename, const char* argv[], const char* envp[]);

execve is called once and never return The execve function loads and runs the executable object file filename with the argument list argv and the environment variable list envp (name = value strings). Execve returns to the calling program only if there is an error, such as not being able to find filename.

• getenv(), setenv(), unsetenv()

  xxxxxxxxxx
  #include <stdlib.h>
  char* getenv(const char* name); // return pointer to name if exists
  int setenv(const char* name, const char* newvalue, int overwrite);
  // return 0 on success, -1 on error
  void unsetenv(const char* name);




4.2 壳程序

shell: an interactive application-level program that runs other programs on behalf of the user.（“提供用户使用界面”的程序）

the original shell was the sh program, followed by csh, tcsh, ksh and bash perform a sequence of read/evaluate steps and then terminates

main routine:

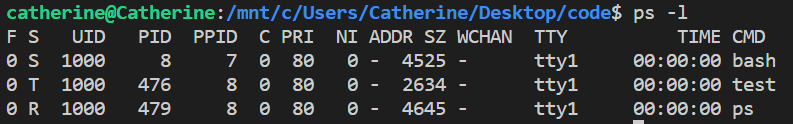

BASH ps 命令

ps -l

F：进程的权限标志 S：进程的状态（stat），主要状态有：R (running), S (sleep), T (stop), D (不可被唤醒), Z (zombie) UID / PID / PPID：此进程被UID所拥有 / 进程的PID号 / 此进程的父进程的PID PRI / NI：priority/nice的缩写，表示该进程被CPU所执行的优先顺序（越小越优先） ADDR / SZ / WCHAN：该进程在内存的部分 / 此进程用掉多少内存 / 目前进程是否在工作 TTY：登入这的终端机位置，若为远程登入则使用动态终端介面（pts/n） TIME：使用掉的CPU时间 CMD：指令

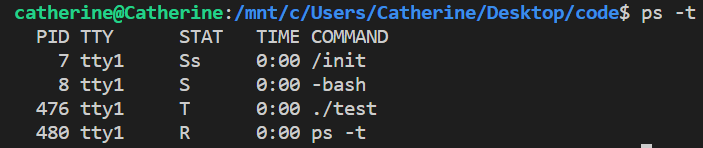

ps -t

jobs 查看挂起的进程信息

前 / 后台程序

background job: [command] & 不需要等待进程结束

前台程序 correctly waits for and reaps foreground jobs 但是，后台程序终止时会变成“僵尸”（因为可能永远不会被回收） 这会导致内存泄漏，导致OS内核资源不足（一旦超过了进程配额 process quota），shell就不能运行任何新命令，即fork()返回-1

xxxxxxxxxx
ulimit -u // bash syntax 查询进程配额

当一个后台进程完成时，OS内核将采取一种类似“异常”(ECF)的机制来“提醒“ shell。这一机制被称为信号 signal。

4.3 信号处理 Signals

1. 信号

Definition: A signal is a small message that notifies a process that an event of some type has occurred in the system

类似于“异常” 其类型由小整数ID表示（1-30）kill -S -id 由内核（有时在另一个进程的请求下）发送给进程 传递的唯一的信息是其自身（即ID和它到达这一事实）

Default Action 还包括：暂停（直至恢复）

• Sending a Signal

  Kernel sends (delivers) a signal to a destination process by updating some state in the context of the destination process

• Receiving a Signal

  A destination process receives a signal when it is forced by the kernel to react in some way to the delivery of the signal

  • Ignore: 忽略信号
  • Terminate：终止进程
  • Catch：响应函数（通过注册一个信号处理函数 signal handler 来响应）

• Pending and Blocked Signals



  pending：信号已发送但暂未被接收

  每一种信号同时最多存在一个pending signal signals并非队列排序：若某进程当前已有pending signal，则后续向该进程发送的该种类的信号将被discarded

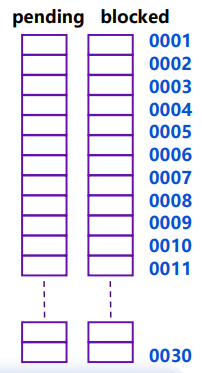

  Kernel maintains pending and blocked bit vectors in the context of each process 当type k信号在pending时set bit k 当type k信号接收时clear bit k

  blocked：一个被目标进程阻塞的信号可以被递送（delivered），但是在信号被解除阻塞之前不会被接收（received）

  通过sigprocmask方程进行set和clear操作（Explicit blocking mechanism）

  xxxxxxxxxx
  #include <signal.h>
  int sigprocmask(int how, const sigset_t *set, sigset_t *oldset);
  int sigemptyset(sigset_t *set);
  int sigfillset(sigset_t *set);
  int sigaddset(sigset_t *set, int signum);
  int sigdelset(sigset_t *set, int signum);
  // Returns: 0 if OK, −1 on error
  int sigismember(const sigset_t *set, int signum);
  // Returns: 1 if member, 0 if not, −1 on error

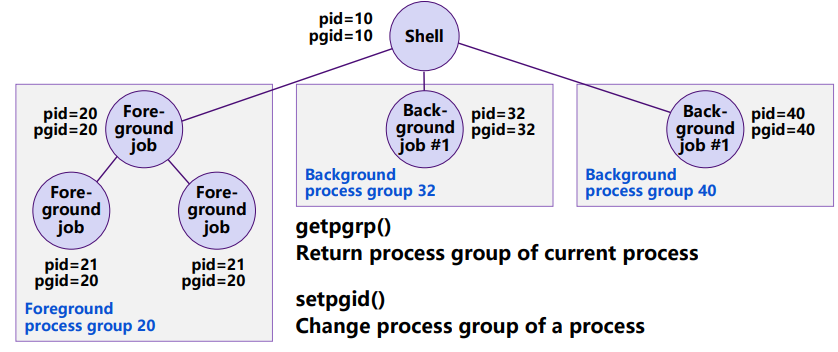

• Process Groups 进程组 每一个进程属于一个进程组，用pgid表示group id

  xxxxxxxxxx
  #include <unistd.h>


  pid_t getpgrp(void): return process group of current process int setpgid(pid_t pid, pid_t pgid): change process group of a process



• Sending Signals

  • with /bin/kill Program

    /bin/kill program sends arbitrary signal to a process or process group

    Examples: /bin/kill -9 24818: send SIGKILL to process 24818 /bin/kill -9 -24817: send SIGKILL to every process in process group 24817

  • from the Keyboard

    ctrl-c / ctrl-z sends a SIGINT / SIGTSTP to every job in the foreground process group (fg num / bg num恢复进程到前/后台执行，其中num表示jobs中查询到的数字) SIGINT: default action is to terminate each process SIGTSTP: default action is to stop / suspend each process

  • with kill Function

    int kill(pid_t pid, int SIGINT): 则子进程为“不正常退出” / WIFEXITED == False pid == 0: sends signal to every process in the process group of the calling process pid > 0: sends signal to process pid pid < 0: sends signal to every process in process group |pid|

• Receiving Signals 信息的接收时间：进程被调度恢复执行的时候 pnb = pending & ~blocked 为真

2. Installing Signal Handlers

xxxxxxxxxx
typedef void (*handler_t)(int);
handler_t signal(int signum, handler_t handler)
    //handler的两种取值：（其他情况handler是signal handler的地址）
    // SIG_IGN：忽略类型为signum的信号
    // SIG_DFL：恢复ID为signum的信号的默认处理
    // Return: pointer to previous handler if OK
    //        SIG_ERR on error

xxxxxxxxxx
void int_handler(int sig) {
    safe_printf("Process %d received signal %d\n", getpid(), sig);
    //Async-Signal-Safety的printf，稍后会讲到~
    exit(0);
}
void fork13() {
    pid_t pid[N];
    int i, child_status;
    signal(SIGINT, int_handler);
    for (i = 0; i < N; i++)
        if ((pid[i] = fork()) == 0) {
            while(1); // child infinite loop
        }
    for (i = 0; i < N; i++) {
        printf("Killing process %d\n", pid[i]);
        kill(pid[i], SIGINT);
    }
    for (i = 0; i < N; i++) {
        pid_t wpid = wait(&child_status);
    if (WIFEXITED(child_status))
        printf("Child %d terminated with exit status %d\n", wpid, WEXITSTATUS(child_status)); //正常退出
    else
        printf("Child %d terminated abnormally\n", wpid);
    }
}

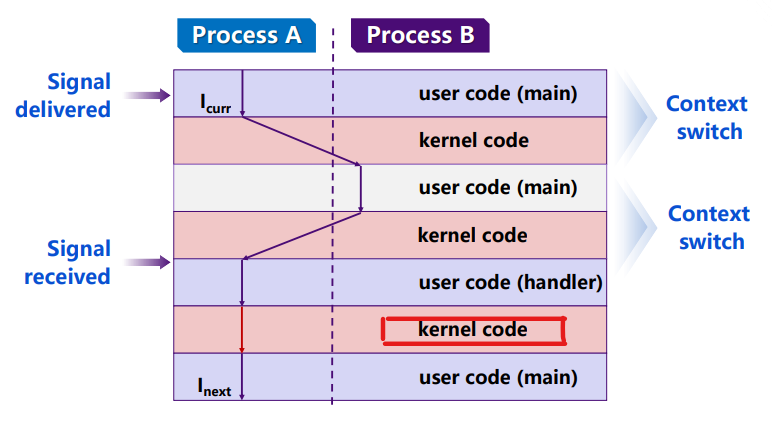

1. Signals Handlers as Concurrent Flows

   A signal handler is a separate logical flow (not process) that runs concurrently with the main program

   具有独立的stack与处理器上下文（CPU context / control flow） 内存是共享的



2. pending signals are not queued 因信号无法缓存，多个同类信号同时到达的话会丢失若干

3. living with nonqueuing Signals: must check for all terminate jobs 检查所有的终止子进程：wait

   xxxxxxxxxx
   while ((pid = waitpid(-1, &child_status, WNOHANG)) > 0) {
       safe_printf("Received signal %d from process %d\n", sig, pid);
   }
   //对比：
   // pid_t pid = wait(&child_status);


4. signal arrival during long system calls (say a read) 系统调用执行过程中信号到达了，signal handler会中断read call，signal handler结束后read call会继续自动进行

5. signal handler reacts to externally generated events

   xxxxxxxxxx
   #include <stdlib.h>
   #include <stdio.h>
   #include <signal.h>

   void handler(int sig) {
       safe_printf("You think hitting ctrl-c will stop the bomb?\n");
       sleep(2);
       safe_printf("Well...");
       sleep(1);
       printf("OK\n");
       exit(0);
   }
   int main() {
       signal(SIGINT, handler); /* installs ctrl-c handler */
       while(1) {}
   }


   Function is async-signal-safe if either reentrant（仅有局部变量） or non-interruptible by signals 即当前的函数不会被signal所屏蔽掉 async-signal-safe wrapper for printf: safe_print



4.4 非本地跳转 Nonlocal jumps

1. setjmp & longjmp

xxxxxxxxxx
#include <setjmp.h>

Powerful (but dangerous) user-level mechanism for transferring control to an arbitrary location Controlled to way to break the procedure call / return discipline Useful for error recovery and signal handling

efficient in deeply nested functions

• int setjmp(jmp_buf env, int i) must be called before longjmp called once, returns one or more times identifies a return site for a subsequent longjmp implementation: remember where you are by storing the current register context, stack pointer and PC value in jmp_buf and return 0

  setjmp的返回值不能赋给一个变量！！！ 但可以用于switch

• void longjmp(jmp_buf env, int i) return from the setjmp remembered by jump buffer return i instead of 0 called after setjmp called once, never return implementation: restore register context, set %eax to i, jump to the location indicated by the PC stored in jmp_buf

2. Limitations of Nonlocal Jumps

Work with stack discipline: can only long jump to environment of function that has been called but not yet completed

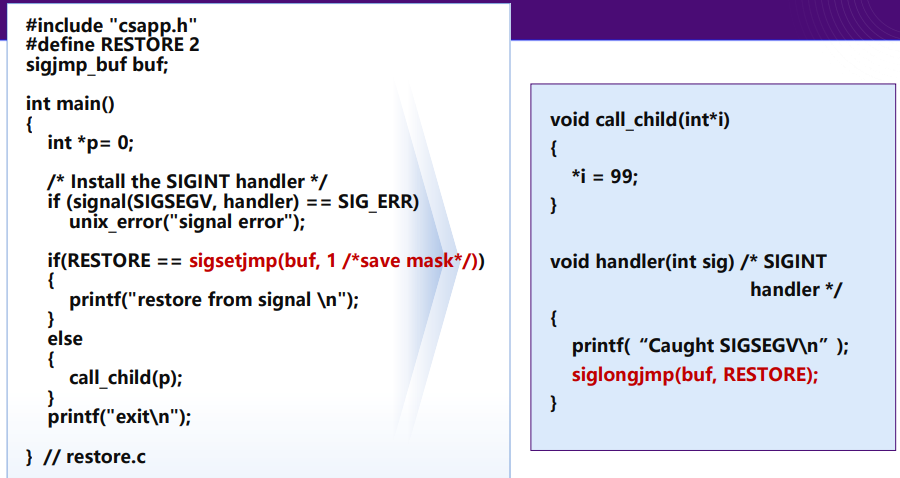

sigsetjmp() and siglongjmp() are versions of setjmp() and longjmp() that can be used by signal handlers

小结

• Signals provide process-level exception handling can generate from user program can define effect by declaring signal handler
• Some caveats very high overhead: >10,000 clock cycles don't have queues only use for exceptional conditions just one bit for each pending signal type
• Nonlocal jumps provide exceptional control flow within process within constraints of stack discipline

4.5 ECF小结

1. fork()

   xxxxxxxxxx
   #include <sys/types.h>
   #include <unistd.h>
   pid_t fork(void);
   // return 0 to child, PID of child to parent, −1 on error

   #include <sys/wait.h>
   pid_t waitpid(pid_t pid, int *statusp, int options);
   // return PID of child if OK, 0 (if WNOHANG), or −1 on error
   pid_t wait(int *statusp);
   // return PID of child if OK or −1 on error


2. sleep()

   xxxxxxxxxx
   #include <unistd.h>
   unsigned int sleep(unsigned int secs);
   // return seconds left to sleep
   // The latter case (rtval > 0) is possible if the sleep function returns prematurely because it was interrupted by a signal


3. pause()

   xxxxxxxxxx
   #include <unistd.h>
   int pause(void);
   // return -1


4. execve()

   xxxxxxxxxx
   #include <unistd.h>
   int execve(const char *filename, const char *argv[], const char *envp[]);
   // does not return if OK; return −1 on error

   #include <stdlib.h>
   char *getenv(const char *name);
   // return pointer to name if it exists, NULL if no match
   int setenv(const char *name, const char *newvalue, int overwrite);
   // return 0 on success, −1 on error
   void unsetenv(const char *name);
   // return nothing


5. kill()

   xxxxxxxxxx
   #include <sys/types.h>
   #include <signal.h>
   int kill(pid_t pid, int sig);
   // return 0 if OK, −1 on error


6. signal()

   xxxxxxxxxx
   #include <signal.h>
   typedef void (*sighandler_t)(int);
   sighandler_t signal(int signum, sighandler_t handler);
   // return pointer to previous handler if OK, SIG_ERR on error (does not set errno)


7. jump()

   xxxxxxxxxx
   #include <setjmp.h>
   int setjmp(jmp_buf env);
   int sigsetjmp(sigjmp_buf env, int savesigs);
   // return 0 from setjmp, nonzero from longjmps

   void longjmp(jmp_buf env, int retval);
   void siglongjmp(sigjmp_buf env, int retval);
   // never returns




5 IO处理

5.1 Unix I/O

1. Unix Files

Definition:

A Unix file is a sequence of m bytes All I/O devices are represented as files（IO设备都视作文件） /dev/sda2 (/usr disk partition) /dev/tty2 (terminal) Even the kernel is represented as a file /dev/kmem (kernel memory image) /proc (kernel data structures)

vim limits vim maps

• Unix File Types

  • Regular File

    often classified into binary files and ASCII / Unicode characters files

    \n, ASCII = LF, numeric_value = 0x0a

    File containing user/app data (binary, text, whatever) OS does not know anything about the format（文件格式 / 内容对OS透明）

  • Directory File A file that contains the names and locations of other files

  • Character special and block special files Terminals (character special) and disks (block special)

  • FIFO (named pipe) A file type used for interprocess communication

  • Socket A file type used for network communication between processes

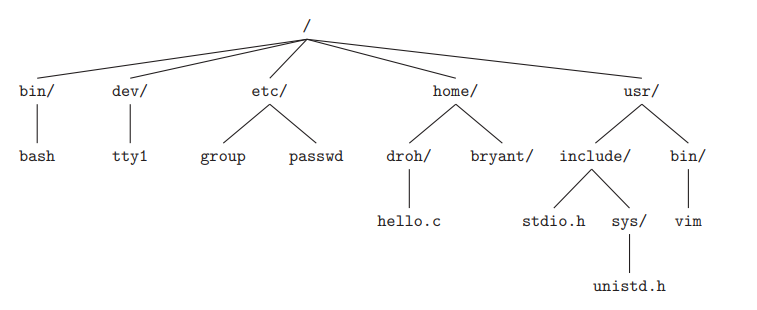

• directory hierarchy



  absolute pathname: /home/droh/hello.c relative pathname: (current working directory) /home/droh, (hello.c) ./hello.c

• summary

  Key Features: Elegant mapping of files to devices allows kernel to export simple interface called Unix I/O Important idea: All input and output is handled in a consistent and uniform way

  Basic Unix I/O operations / system calls:

  • Opening and closing files: open() and close()

  • Reading and writing a file: read() and write()

  • Changing the current file offset/position (seek) indicates next offset into file to read or write lseek()

    xxxxxxxxxx
    #include <unistd.h>
    #include <sys/types.h>

    off_t lseek(int filedes, off_t offset, int whence);
    // return: new offset if OK, -1 if error
    // whence: SEEK_SET: set to offset
    //         SEEK_CUR: set to cur + offset
    //         SEEK_END: file_size() + offset


  • access file metadata:stat()

Opening Files

xxxxxxxxxx
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
int open(char* filename, int flags, mode_t mode);
// return: new file descriptor if OK, -1 on error
// flags: O_RDONLY, O_WRONLY, O_RDWR, O_CREAT, O_TRUNC, O_APPEND

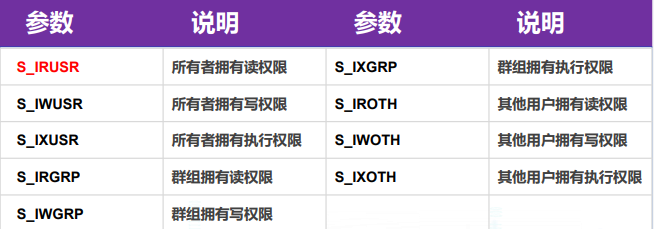

// mode: specifies access permission

int fd;

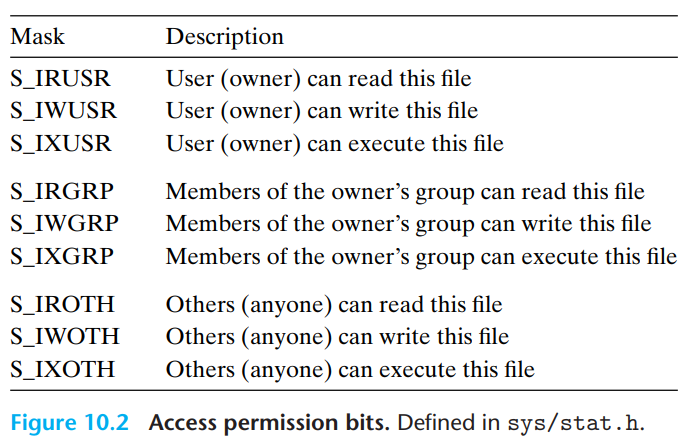

#define DEF_MODE S_IRUSR|S_IWUSR|S_IRGRP|S_IWGRP|S_IROTH|S_IWOTH
#define DEF_UMASK S_IWGRP|S_IWOTH
umask(DEF_UMASK);
if ((fd = open("/etc/hosts", O_RDONLLY, DEF_MODE)) < 0) {
    // owner: read and write permissions, others: read permissions
    perror("open");
    exit(1);
}

Return a small identifying integer file descriptor（文件描述符） the descriptor returned is always the smallest descriptor that is not currently open in the process fd == -1：an error occurred

Each process created by a Unix shell begins life with three open files associated with a terminal (files are recorded in a FD_TABLE) 0: standard input 1: standard output 2: standard error (diagnostic) output

xxxxxxxxxx
#include <unistd.h>
const: STDIN_FILENO, STDOUT_FILENO, STDERR_FILENO

Closing Files

xxxxxxxxxx
#include <unistd.h>
int close(int fd);
// Returns 0 if OK, -1 on error

int fd; /*file descriptor*/
int retval; /*return value*/

if ((retval = close(fd)) < 0) {
    perror("close");
    exit(1);
}

Closing an already closed file is an error Moral: always check return codes, even for seemingly benign functions such as close()

• Tips-1: 当一个进程终止时，内核对该进程所有尚未关闭的文件描述符调用close关闭。
• Tips-2: 成功的关闭并不确保数据已经成功地保存到磁盘，因为内核会延迟写操作。如果需要确保，请在关闭前使用fsync。

Reading Files

读取文件内容并更新文件访问位置

xxxxxxxxxx
#include <unistd.h>
ssize_t read(int fd, void* buf, size_t n);
// Returns: number of bytes read if OK, 0 on EOF, -1 on error

char buf[512];
int fd; /*file descriptor*/
int nbytes; /*number of bytes read*/
    /* Open file fd ... */
    /* Then read up to 512 bytes from file fd */
if ( (nbytes = read(fd, buf, sizeof(buf))) < 0 ) {
    perror("read"); //output to stderr
    exit(1);
}

returns number of bytes read from file fd into buf

Return type ssize_t is signed integer nbytes < 0 indicates that an error occurred Short counts (nbytes < sizeof(buf)) are possible and are not errors

Writing Files

写入文件内容并更新文件访问位置

xxxxxxxxxx
#include <unistd.h>
ssize_t write(int fd, const void* buf, size_t n);
// Returns: number of bytes written if OK, -1 on error

char buf[512];
int fd; /*file descriptor*/
int nbytes; /*number of bytes read*/
    /* Open the file fd ... */
    /* Then write up to 512 bytes from buf to file fd*/
if ((nbytes = write(fd, buf, sizeof(buf)) < 0) {
    perror("write");
    exit(1);
}

returns number of bytes written from buf to file fd

nbytes < 0 indicates that an error occurred As with reads, short counts are possible and are not errors

dealing with Short Counts

5.2 RIO (robust I/O) package

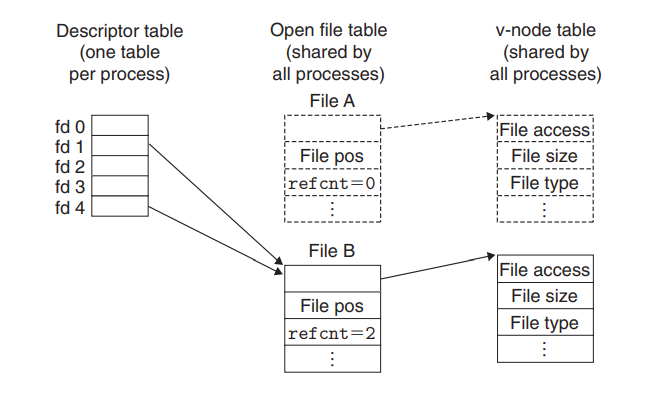

5.3 Metadata, sharing and redirection

1. File Metadata（元数据）

Definition: metadata is data about data, in this case file data

Per-file metadata maintained by kernel Accessed by users with the stat and fstat functions

xxxxxxxxxx
#include <unistd.h>
#include <sys/stat.h>
int stat(const char* filename, struct stat* buf);
int fstat(int fd, struct stat* buf);
// Returns: 0 if OK, -1 on error
